FERROMATIK - ELEKTRA 180IT-INJ-FER-2007-00001

Name: FERROMATIK ELEKTRA 180
Brand: FERROMATIK
SKU: IT-INJ-FER-2007-00001
Price: 32000 EUR
Availability: InStock

32,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Plastics Processing Machinery
➤ Used FERROMATIK ELEKTRA 180 For Sale | gindumac.com

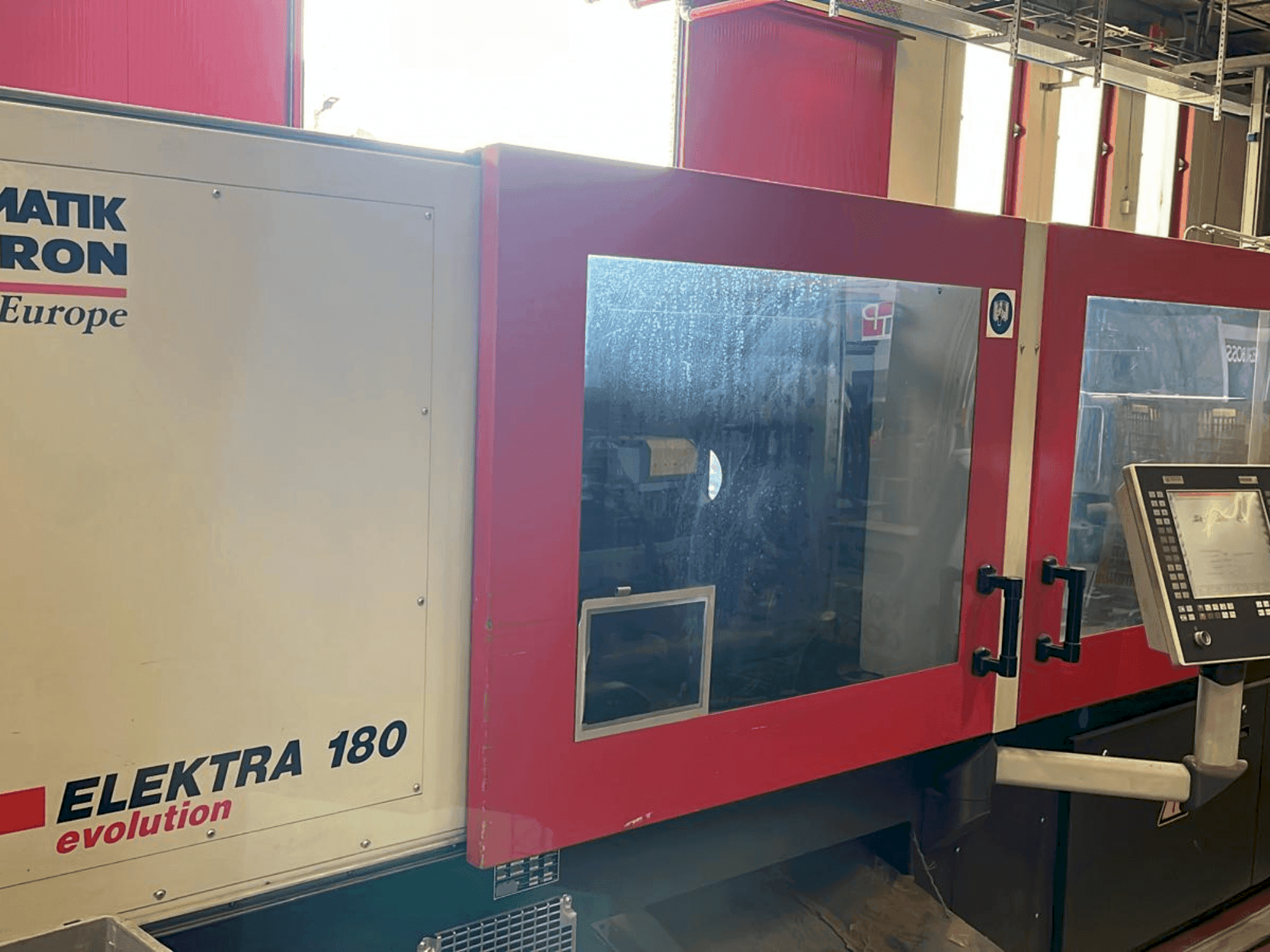

This FERROMATIK ELEKTRA 180 was manufactured in 2007. It features a screw diameter of 45-50 mm, injection pressures up to 2494 bar, and a clamping force of 1800 kN. The machine dimensions are 5.8 × 1.85 × 2.2 m, and it has a total connected load of 33.8 kW. If you are looking to get high-quality injection moulding capabilities, consider the FERROMATIK ELEKTRA 180 machine we have for sale. Contact us for more information about this machine.

Overview

brand: FERROMATIK
year: 2007
MODEL: ELEKTRA 180
application type: Injection Moulding
Location: Italy
machine type: Electrical Injection Moulding Machine

Technical Information - FERROMATIK ELEKTRA 180

General Data

Measurements width: 1850 MM
Measurements depth: 5800 mm
Measurements height: 2200 mm
Machine weight: 9400 kg

Injection Unit

Screw diameter: 45 / 48 / 50 mm
Shot weight: 229 / 289 / 357 g
Stroke volume: 286 / 318 / 393 cm³
Injection pressure: 2494 / 1970 / 1878 bar
Screw speed: 270 rpm

Clamping unit

Clamping force: 1800 kN
Opening stroke: 540 mm
Max open daylight: 1230 mm
Mould height min: 300 mm
Mould height max: 790 mm
Ejector stroke: 200 mm
Ejector force for / back: 49 kN

Additional Information

Injection rate: 262 / 324 cm³/s
Plasticizing rate: 27 / 32 g/s
L/D ratio: 22
Installed heating power: 14.8 kW
Nozzle contact force: 60 kN
Nozzle stroke: 300 mm

Distance between tie bars (H × V): 630 × 630 mm
Max. platen dimensions (H × V): 890 × 890 mm

Dry cycle time: 2.2 s
Total connected load: 33.8 kW

Mould Platen Dimensions
- Tie bar spacing (center): 630 × 630 mm
- Mould fixing holes: Ø18 mm (8 holes)
- Centering ring diameter: Ø120 mm
- Ejector plate hole diameter: Ø65 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
