➤ Used GANNOMAT ProTec 571 - For Sale | gindumac.com

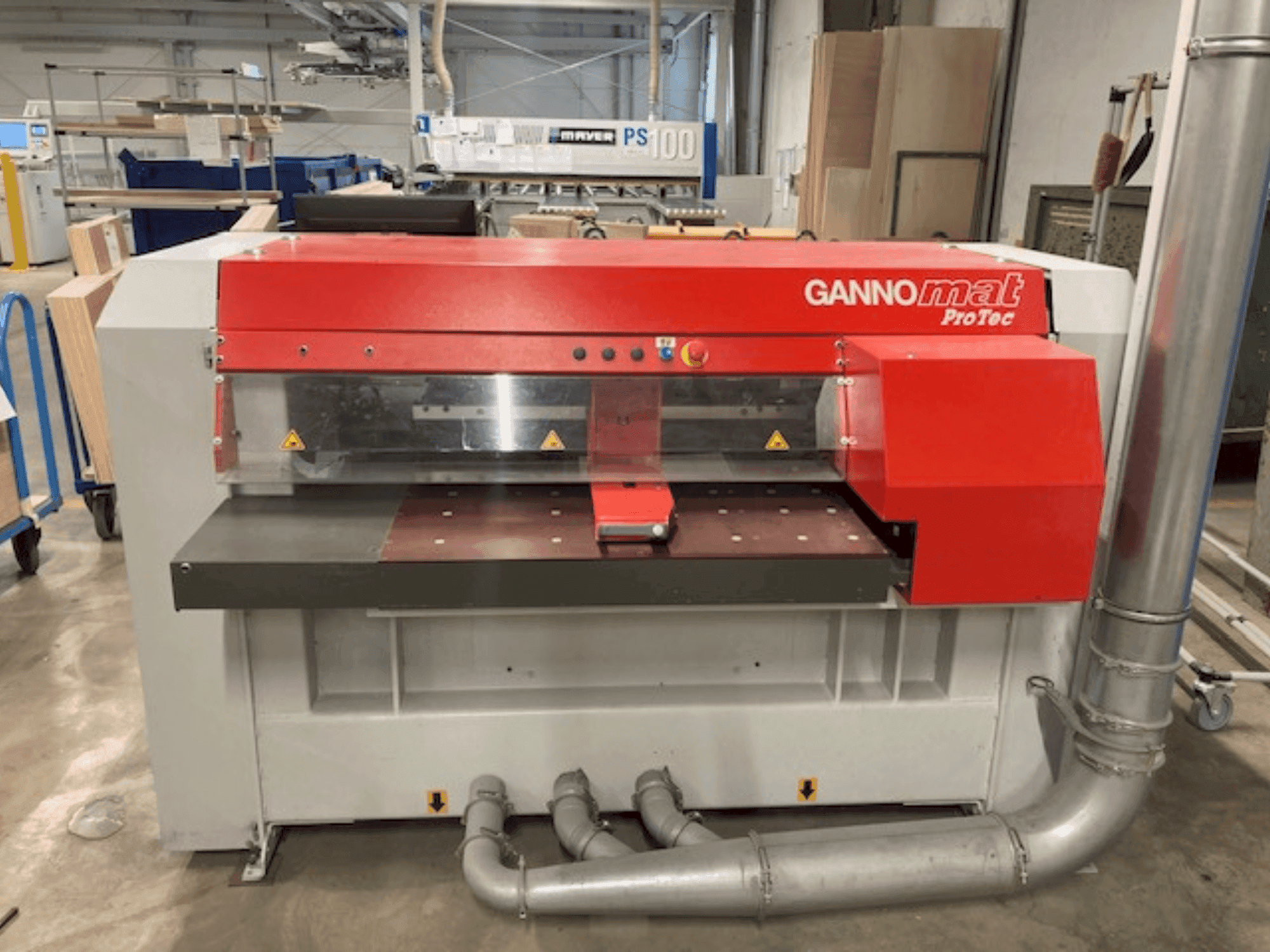

This 6-axis GANNOMAT ProTec 571 was manufactured in 2017, featuring a precise steel worktable and a working stroke length of 1000 mm on the X-axis. It includes a drilling unit with 13 vertical and 6 horizontal spindles, a milling unit with a power range of 3000-18000 rpm, and a grooving unit in Y. If you are looking to get high-quality woodworking capabilities, consider the GANNOMAT ProTec 571 machine we have for sale. Contact us for more information.

Overview

brand: GANNOMAT
year: 2017
MODEL: ProTec 571
application type: CNC Wood Machining
Location: Austria
machine type: CNC Wood Machining Centre
availability: Immediately

Technical Information - GANNOMAT ProTec 571

Main drive

Number of axis: 6

Movement

X-AXIS Rapid traverse: 90 m/min
Y-AXIS Rapid traverse: 30 m/min
Z-AXIS Rapid traverse: 15 m/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Working stroke length (x-axis): 1000 mm
- - Working height: 905 mm
- - Size on x-axis: min. 85 mm / max. 1000 mm
- - Size on y-axis: min. 285 mm / max. Unlimited (max. 70 kg)
- - Size on z-axis: min. 6 mm / max. 60 mm
- - Precise steel worktable
- - Drilling unit bk6: 1. 5 kw motor, 3200 rpm
- - Vertical spindles: 13 pcs. // horizontal spindles: (3+3) on y-axis, (1+1) on x-axis
- - Milling unit: 4. 5 kw, 3000 - 18000 rpm
- - Grooving unit on y

Extra information

- Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
