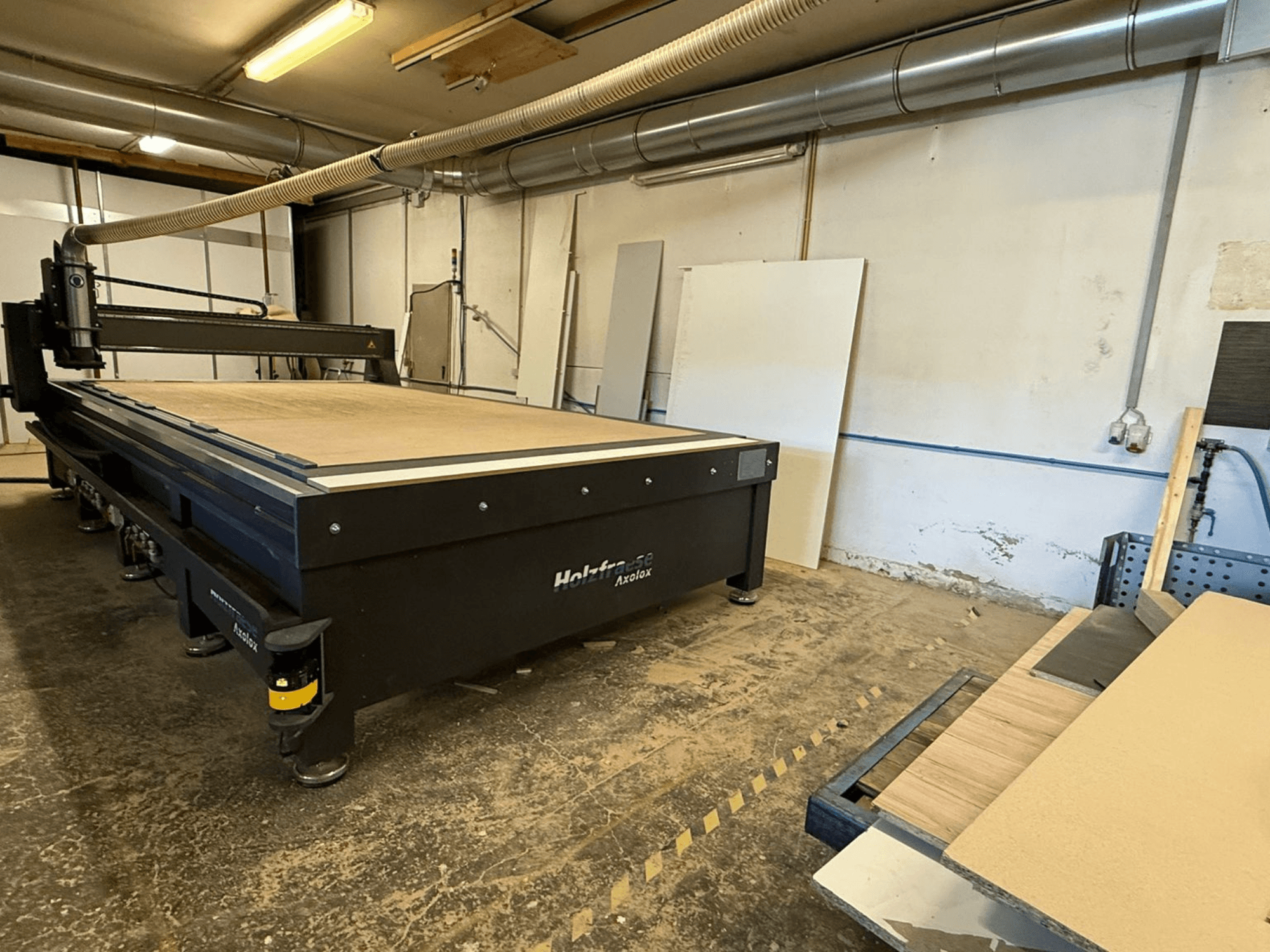

This 3-axis GEWEMA Axolox 4021 was manufactured in 2024, featuring a robust CNC Wood Router design. It includes a high-frequency spindle, vacuum table with adjustable sections, and a comprehensive control set with safety features. Ideal for intricate woodworking, it comes with a Mini PC, Beamicon22020 software, and additional licenses for enhanced functionality. If you are looking to get high-quality milling capabilities consider the GEWEMA Axolox 4021 machine we have for sale. Contact us for more information.
Overview
- brand: GEWEMA
- year: 2024
- MODEL: Axolox 4021
- production hours: 1448
- application type: Milling (Wood)
- Location: Germany
- machine type: Wood Mill
Technical Information - GEWEMA Axolox 4021
Movement
- Number of Axes: 3
Additional Information
Model and size: CNC Wood Router Axolox 4021 (19 mm Forescolour), 4000 x 2100
Construction: Milling table (X-axis), gantry (Y-axis), Z-axis unit in compact plate, base frame with adjustable machine feet
Milling bed/sacrificial plate: 19 mm MDF; table openings pre-equipped lengthwise and crosswise
Mechanics set: Profile guides with carriages, ball screw, precision rack and pinion
High-frequency spindle: 2.2 kW, with union nut, frequency converter (VFD), line filter, braking resistor, and collet set
Power connection (machine): 16 A, 400 V AC required
Dust extraction connection: Requires a 100 mm inner-diameter hose to connect to the customer’s existing dust extraction system
Control set (pre-assembled in cabinet): Control cables, energy chains, planetary gearboxes, stepper motors, high-performance power stages, power supply, toroidal transformer; sensors on each axis
Automatic control: Switching relays for automatic control of the existing extraction system
Dust protection: Brush seals
Safety devices (CE-compliant): Traveling extraction device; laser scanner mounted on one side for workspace monitoring (275° field, 5.5 m range)
Handheld control unit: All machine functions, including Emergency-Stop and dead man’s switch
Tool length sensor: Tool length measurement and active zero-point shift
Control software/HMI: Beamicon2 (2020)
Computer/HMI: Mini PC with Windows 10 in ergonomic console; built-in monitor, mouse, keyboard
Vacuum table: Milling bed designed as a vacuum table; six adjustable sectional elements; cross-table made of PE with MDF top plate
Customer-supplied sacrificial plate for vacuum table: 3 mm HDF, raw on both sides, 3000 x 2100 mm
Additional equipment
Vacuum pump: Becker oil-lubricated rotary vane pump, 360 m^3 capacity; power connection 16 A, 400 V plug required
External dust extraction system and 100 mm ID hose (required for connection; not included with the machine)
CAD/CAM and design software licenses and modules:
Rhino 7.0 (CAD)
Esticam V12 (CAM)
SmartWOP Wood Router Edition (incl. 1 year support)
SmartWOP modules: CNC connection – wood router; special volume slanted cabinet; special volume corner cabinet; room design; automatic nesting of panels; Panel Planner (move/order/rotate parts on raw material)
RhinoNest extension for Rhino 6.0 (nesting components onto panels)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
