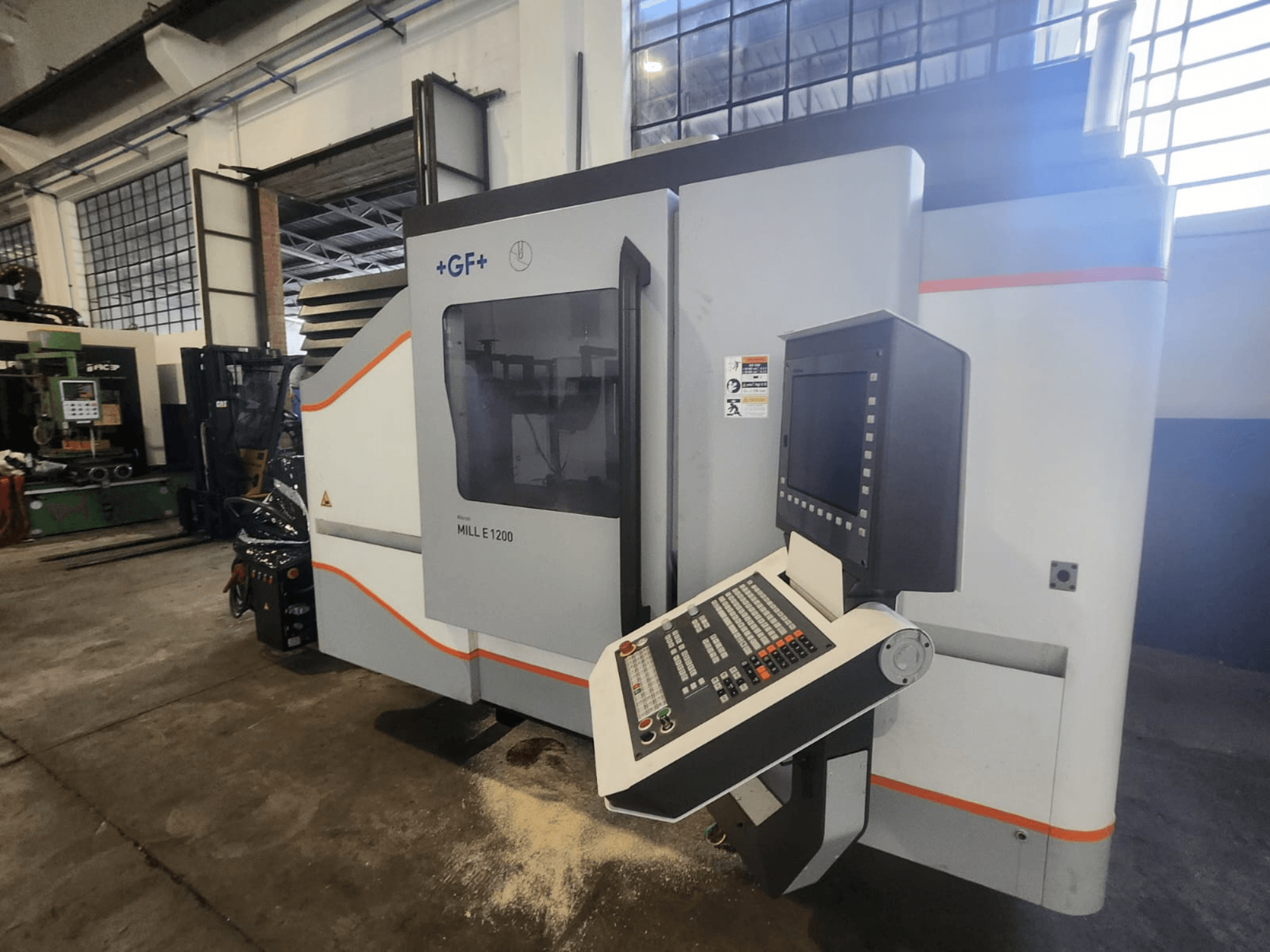

GF MILL E1200, front view of milling machine with control panel, display screen, and safety labels, in workshop setting.
GF MILL E1200, front view of milling machine with control panel, display screen, and safety labels, in workshop setting.

+GF+ - Mikron Mill E 1200IT-MIL-GFX-2021-00001

135,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis +GF+ Mikron Mill E 1200 was manufactured in 2021. It features a spindle speed of 20,000 rpm, HSK A63 tool magazine, and rapid traverses up to 40 m/min. The work table measures 1450 x 600 mm with a maximum load of 1500 kg. Additional features include a Lehmann 4-axis rotary table and a liftable chip conveyor. Consider the opportunity to buy this +GF+ Mikron Mill E 1200 vertical machining centre. Contact us for more information.

Overview

  • brand: +GF+
  • year: 2021
  • MODEL: Mikron Mill E 1200
  • application type: Milling
  • Location: Italy
  • machine type: Vertical Machining Centre
  • control unit brand: HEIDENHAIN

Technical Information - +GF+ Mikron Mill E 1200

Control Unit

  • Control Brand: HEIDENHAIN
  • Control Model: TNC 620

Dimensions

  • Table Load: 1500 kg

Movement

  • Number of Axes: 4
  • X-axis Travel: 1250 mm
  • Y-axis Travel: 600 mm
  • Z-axis Travel: 600 mm

Technical Specification

  • Spindle Speed: 20000 RPM
  • Taper Size: HSK 63

Additional Information

  • Tool magazine: DT30, HSK-A63

  • Rapid traverse: X/Y 40 m/min; Z 35 m/min

  • Table size: 1450 x 600 mm

  • T-slots: 5

  • Spindle cooling system – 20 kHz

  • Linear scales: MILL E 1200 linear scales

  • Machine status light

Additional equipment

  • Liftable chip conveyor

  • Chip trolley

  • Washdown system

  • Oil separator

  • Remote electronic handwheel

  • TS35.10 tool presetter (TNC 620)

  • IRP40.02 HSK63A measuring system

  • Lehmann 4-axis rotary table

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.

Your account manager:

Borja Garcia

Borja Garcia is one of our used machinery trading experts and will be your direct contact for any further questions on the machine. Feel free to contact him/her.

get in contact

Payment Terms

  • Payment in advance

  • Asset Financing
