Gildemeister - CTV 250NL-TUR-GIL-2004-00001

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

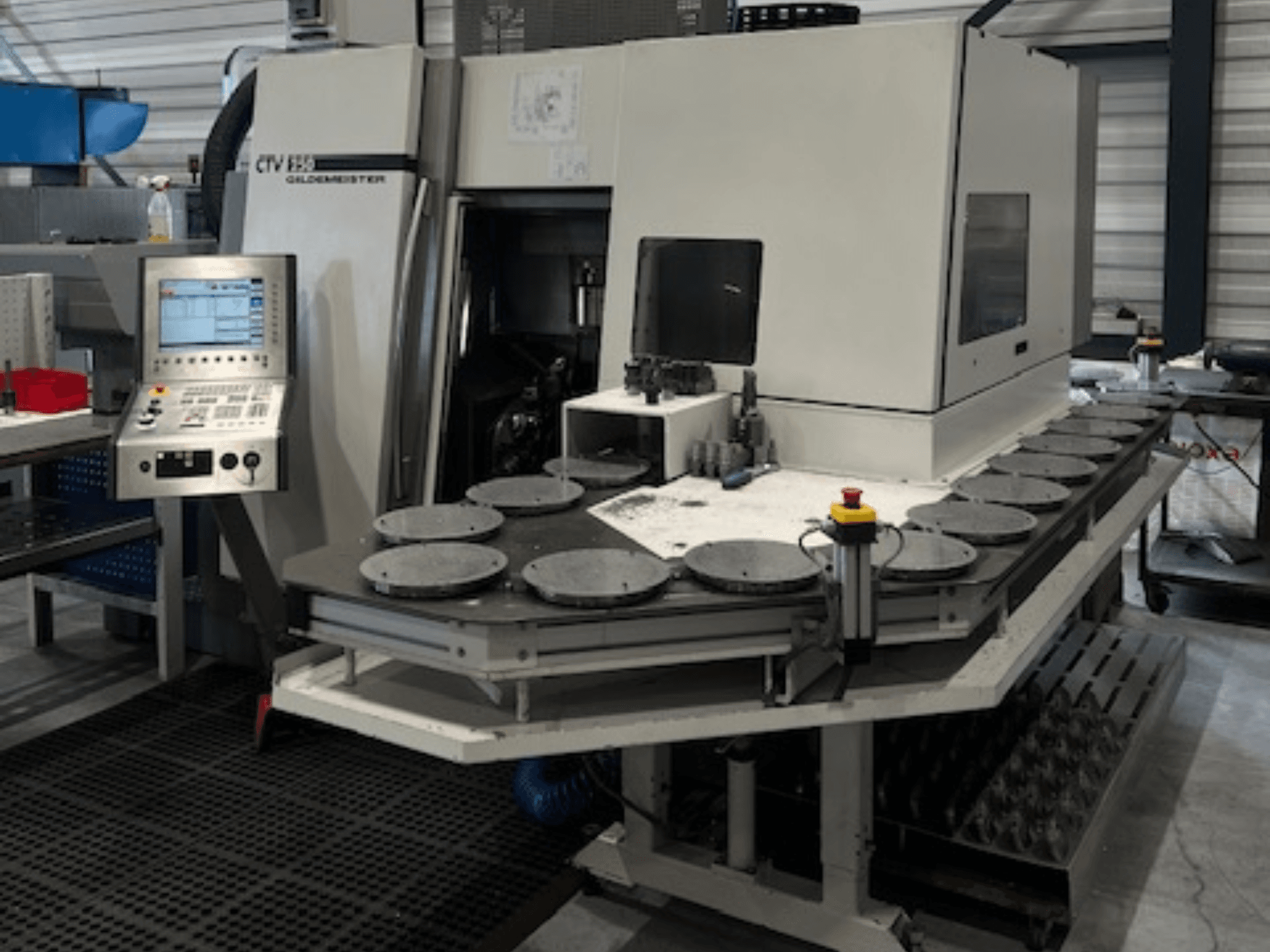

This 4-axis Gildemeister CTV 250 vertical turning machine was manufactured in 2004. It features a Siemens 840D Power Line control, a spindle speed up to 5,000 rpm, and a spindle motor power of 20 kW. The machine includes a turret with 12 tool positions, driven tools, a C-axis, and a high-pressure pump. Consider the opportunity to buy this Gildemeister CTV 250 vertical turning machine. Contact us for more information about this machine.

Overview

  • brand: Gildemeister
  • year: 2004
  • MODEL: CTV 250
  • production hours: 20581
  • application type: Turning
  • Location: Netherlands
  • machine type: Vertical Turning Machine
  • control unit brand: SIEMENS

Technical Information - Gildemeister CTV 250

Control Unit

  • Control Brand: SIEMENS
  • Control Model: 840D Power Line

Dimensions

  • Machine Weight: 8000 kg

Movement

  • Number of Axes: 3
  • X-axis Travel: 650 mm
  • Y-axis Travel: 50 mm
  • Z-axis Travel: 300 mm

Technical Specification

  • Driven Tools: Yes
  • Spindle Power: 20 kW
  • Spindle Speed: 5000 RPM
  • Taper Size: VDI 40

Additional Information

  • Turret: 1 turret, 12 tool positions

  • Tool holder: VDI 40

  • Driven tools: yes, up to 4,000 rpm

  • Tool drive power: ~11.7 kW

  • Chuck/turning diameter: Ø 250 mm (Kitagawa B210)

  • C-axis: yes

Additional equipment

  • Measuring probe

  • High-pressure coolant pump (20 bar, 500 L, double filter)

  • Immersion cooler

  • Chip conveyor (listed as “clamp conveyor”)

  • Electric exhaust/mist collector (LTA)

  • Drip/collection tray under the machine

  • Pallet loading station (EWAB) on the right

  • Kitagawa B210 3-jaw chuck


*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
