- Gildemeister TWIN 500 Lathe

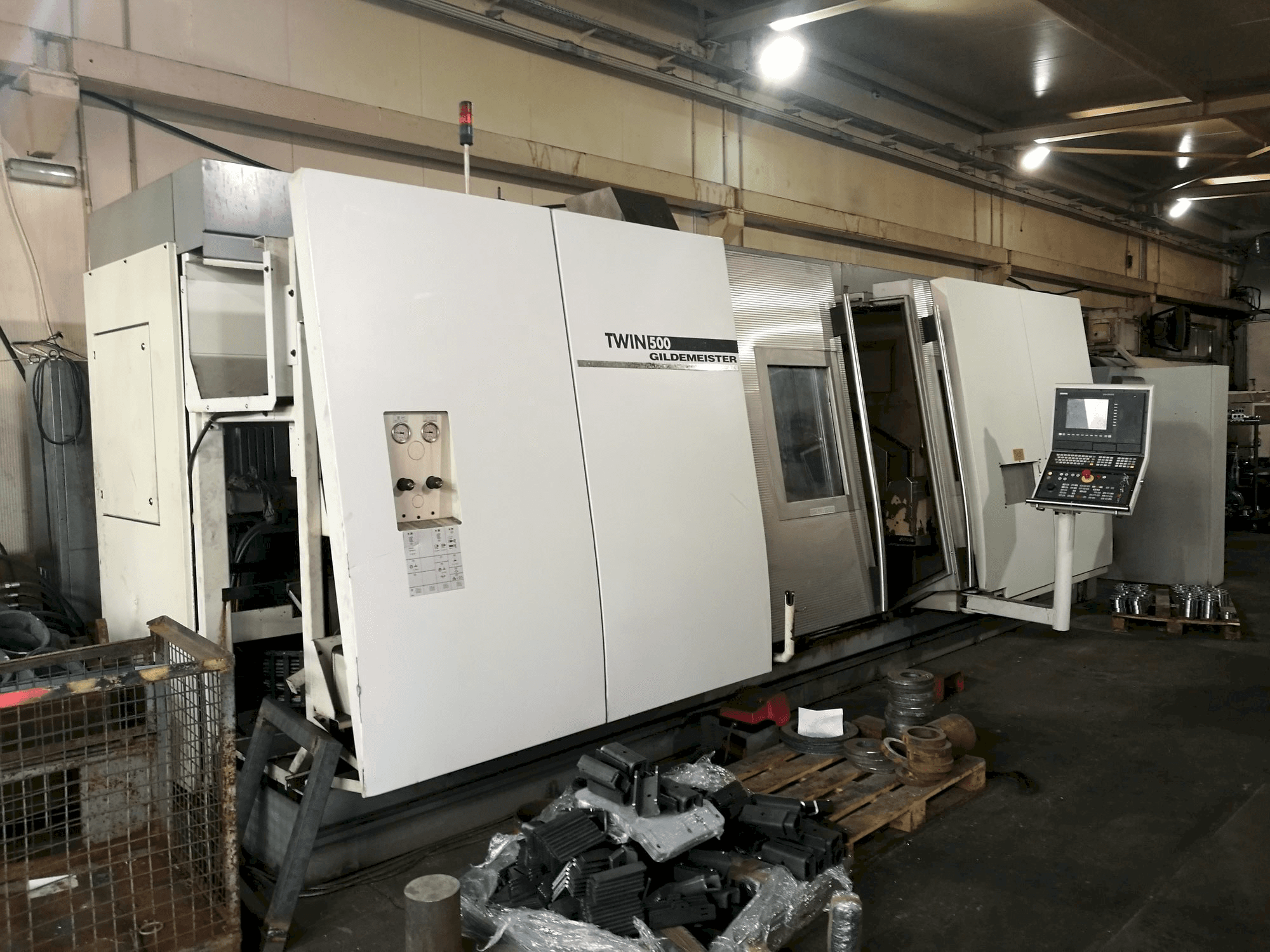

This Gildemeister TWIN 500 Lathe was manufactured in the year 2002 in Germany. It has a production record of 91562 working hours. Equipped with a Siemens SINUMERIK 840D 3 chanels control unit. This machine comes with 3 turrets.
Overview
- brand: Gildemeister
- year: 2002
- MODEL: TWIN 500
- production hours: 91562
- application type: Turning
- Location: Poland
- machine type: Horizontal Turning Machine
- control unit brand: SIEMENS
Technical Information - Gildemeister TWIN 500
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D 3 chanels
Dimensions
- Machine Depth: 4500 mm
- Machine Height: 2800 mm
- Machine Weight: 18500 kg
Movement
- X-axis Travel: 1470 mm
- Y-axis Travel: 210 mm
Technical Specification
- Through-spindle Coolant: Yes
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Machine was always inspected by the factory service
Extra Information
Tool magazin 40 items SMW Autoblock KNCS-260 holders Fastening tool S3: HSK-A63 Cooled lead screw Axes: X1 - 1470 mm X2 - 1440 mm X3 - 1460 mm Y - 210 mm B - 240 deg C - 360 deg Turning diameter - 610 mm Spindle - working diameter 65 mm Distance between spindles - 1850 Power&speed: S1, S2 - 3200/4000 rpm 25/33 S3 - 12000 rpm 10/15 kW X/Y/Z - 46/24/60 m/min
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
