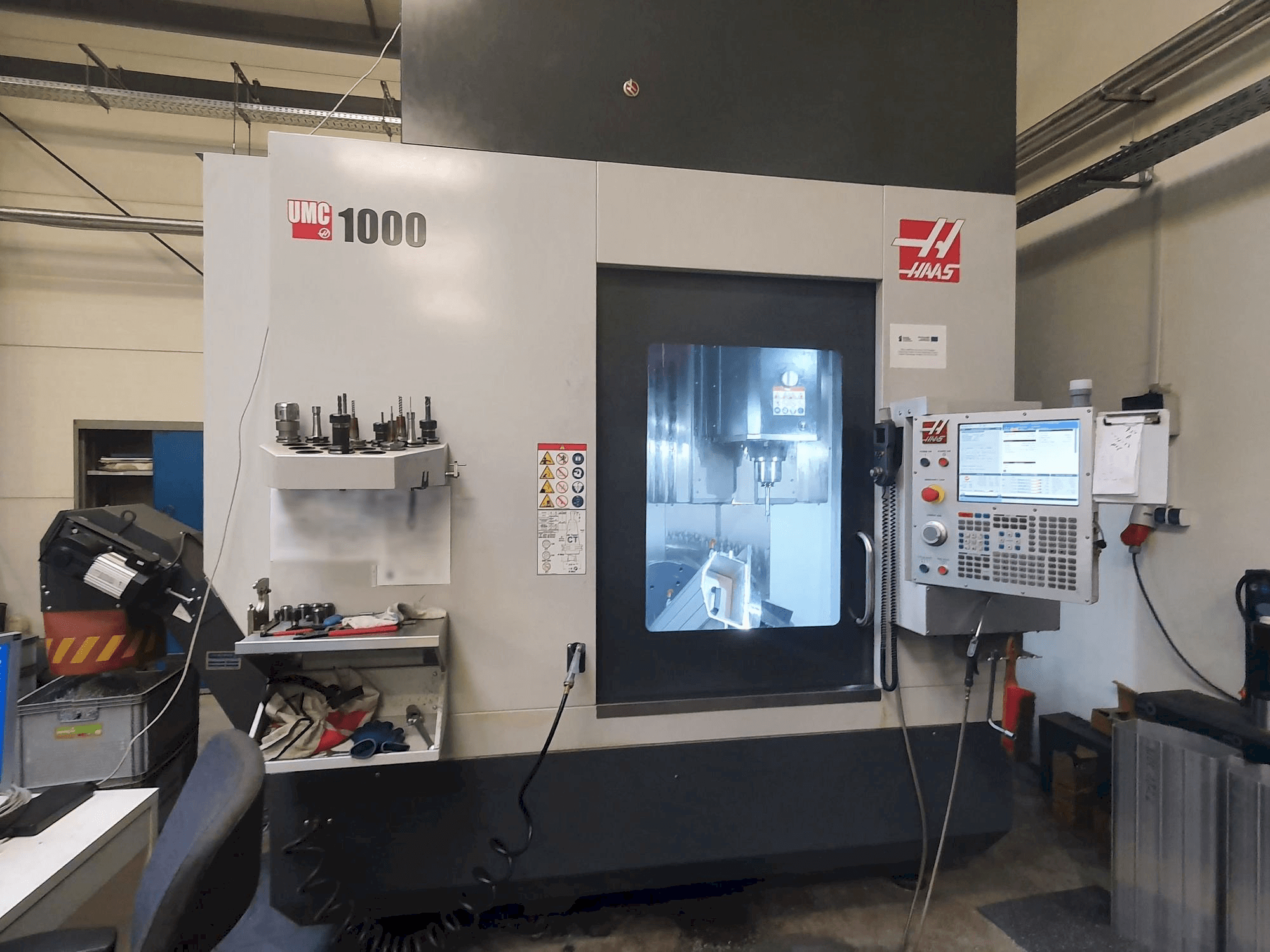

This HAAS UMC-1000 Vertical Machining center was manufactured in the year 2019 in the United States. It is equipped with a HAAS NGC control unit and has 5 axis. The machine has a spindle speed of 8100 rpm, is in very good condition and well maintained.
Overview
- brand: HAAS
- year: 2019
- MODEL: UMC-1000
- application type: Milling
- Location: Poland
- machine type: Vertical Machining Centre
- control unit brand: HAAS
Technical Information - HAAS UMC-1000
Control Unit
- Control Brand: HAAS
- Control Model: NGC
Dimensions
- Machine Depth: 2311 mm
- Machine Height: 2565 mm
- Machine Weight: 6931 kg
- Table Load: 454 kg
Movement
- Number of Axes: 5
- X-axis Travel: 1016 mm
- Y-axis Travel: 635 mm
- Z-axis Travel: 635 mm
Technical Specification
- Spindle Speed: 8100 RPM
Additional Information
Machine Benefits
Qualitative Machine Benefits
- Tsc – cooling trough the spindle 21 bar
- Conveyor-h – chip conveyor
- Hsm -processor with look-ahead
- Smtc-20-40t – tool magazine 50 positions
Technical Machine Benefits
- Spindle nose to table (~ max) - 737 mm spindle nose to table (~ min) - 102 mm
- B axis: travel +120°, -35° max speed 50°/sec max torque 9964 nm brake torque 2712 nm
- C axis: travel 360° max torque 8247 nm max part swing 864 mm brake torque 1220 nm max speed 50°/sec
- Max rating: 22. 4 kw
- Max torque: 122 nm @ 2000 rpm
- Drive system: inline direct-drive
- Taper sk40
- Type - smtc
- Capacity - 50+1 pcs
- Acf – additional filtration system for aluminum 25um
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
