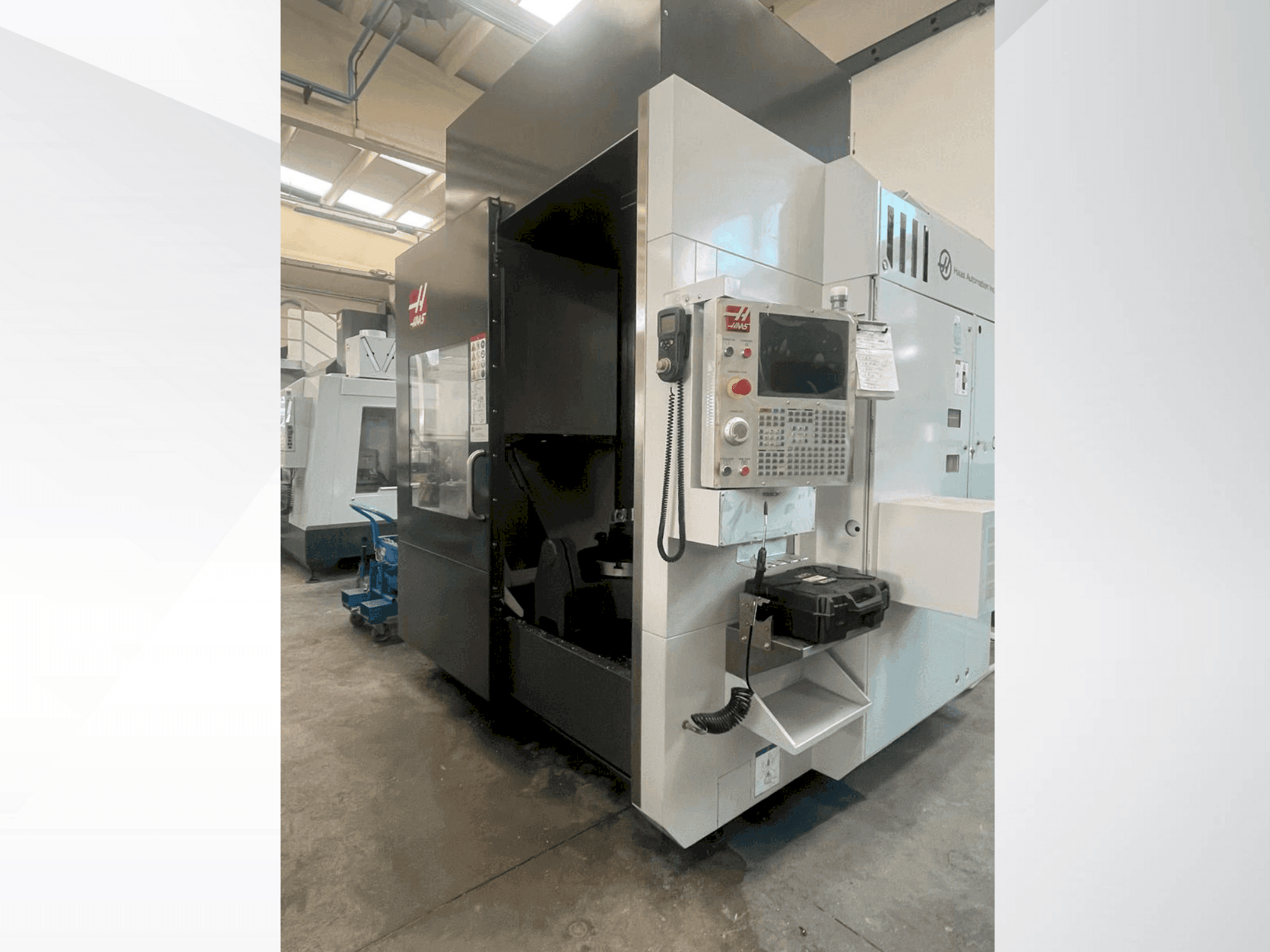

Used Vertical machining centre HAAS UMC750SS (2019) for sale | GINDUMAC.COM

This HAAS UMC750SS Vertical machining centre was manufactured in the year 2019 in the United States. It is equipped with a HAAS control unit with Ethernet interface. The machine disposes of a 1 GB of memory for programs, a 15” COLOR LCD monitor, a USB port with memory lock key and a power failure detection module. There are a lot of options fitted on the machine that can be included.

Overview

brand: HAAS
year: 2019
MODEL: UMC750SS
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS UMC750SS

Control Unit

Control Brand: HAAS

Movement

Number of Axes: 5
X-axis Travel: 762 mm
Y-axis Travel: 508 mm
Z-axis Travel: 508 mm

Additional Information

Additional equipment

Belt screw conveyor
Coolant passage through the spindle 21 Bar
Programmable coolant nozzle
Cooling unit for CNC control cabinet
HAAS fairing condensation and smoke exhaust system
Automatic coolant replenishment system
Oil skimmer for the liquid tank
Auxiliary coolant filter system
Work Table Light

Machine Benefits

Qualitative Machine Benefits

Intuitive wireless probe system
Touchscreen remote electronic handwheel with color display

Technical Machine Benefits

With integrated high-speed two-axis rotary tilting table diameter 500 mm
Cone ct40 din 69871
30 hp (22. 4 kw) vector drive 15,000 rpm.
40 + 1 lateral high speed tool changer
Rapid feed 30. 5 m/min.
High speed processing
15” color lcd monitor
Power failure detection module
Rigid tapping and 284 liter cooling system
1 gb of memory for programs // usb port, memory lock key

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
