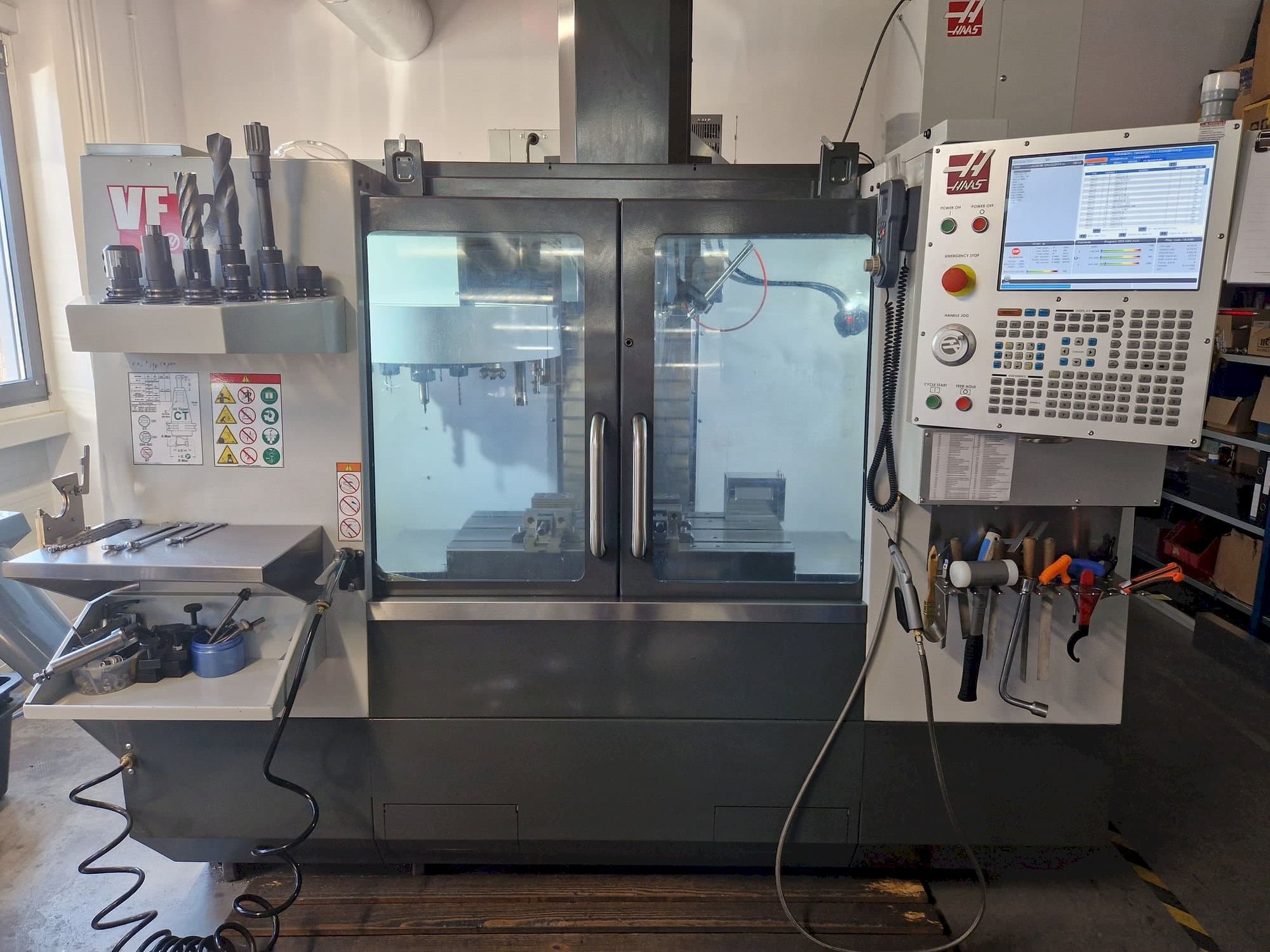

This HAAS VF-2 Vertical Machine Center was made in 2019 in the United States and has 5230 hours. It is equipped with a HASS version NGC control unit and has 3 axis. The machine has a spindle speed of 8100 rpm, and it is in perfect condition, with regular maintenance, and full documentation. The machine includes tool holders.
Overview
- brand: HAAS
- year: 2019
- MODEL: VF-2
- production hours: 5230
- application type: Milling
- Location: Poland
- machine type: Machining centers (vertical)
- availability: Sold
- control unit brand: HASS
- GINDUMAC ID: PL-MIL-HAA-2019-00002
Technical Information
General Data
- Measurements width: 2789 mm
- Measurements depth: 2357 mm
- Measurements height: 2654 mm
- Machine weight: 3311 kg
Control Unit
- Brand: HASS
- Model: NGC
Main drive
- Spindle speed range: 8100 1/MIN
- Spindle motor power: 22.4kW
- Tool taper: ISO 40 mounting cone
- Number of axis: 3
Movement
- X-AXIS Movement: 762 mm
- Y-AXIS Movement: 406 mm
- Z-AXIS Movement: 508 mm
Table
- Outer length: 914 mm
- Outer width: 356 mm
- Table load: 1361 kg
Media
- Main electronic connection: 3x400V - 50hz
Additional Equipment
- - AUGER screw chip ejector
- - P-COOL - programmable position of coolant nozzles
- - PMDS - preparation for probe work
- - WIPS-R - probe set for tool and workpiece measurement with SOM, COORD, MACRO
- - Probes for workpieces and tools
- - 30 pcs of tool holders
Additional Information
- Technical Machine Benefits:
- - Table design t-slots 16mm wide with 125mm spacing
- - Maximum torque at 2000 rpm - 122 nm
- - Maximum torque at 450 rpm - 339 nm
- - Maximum pulling force of the x and y axes 11. 3 kn
- - Maximum pulling force of the z axis 18. 6 kn
- - Working feeds and run-up speed: running speed in x, y, z axes 25. 4 m/min, working feed rate 16. 5 m/min
- - Machine positioning accuracy +/-0. 005 mm
- - Repeatability of machine positioning +/-0. 003 mm
- - Cooling tank 208 l
- - Air pressure 6. 9 bar, air consumption 113 l/min
- Qualitative Machine Benefits:
- - Machine in perfect condition, regular maintenance, full documentation
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
