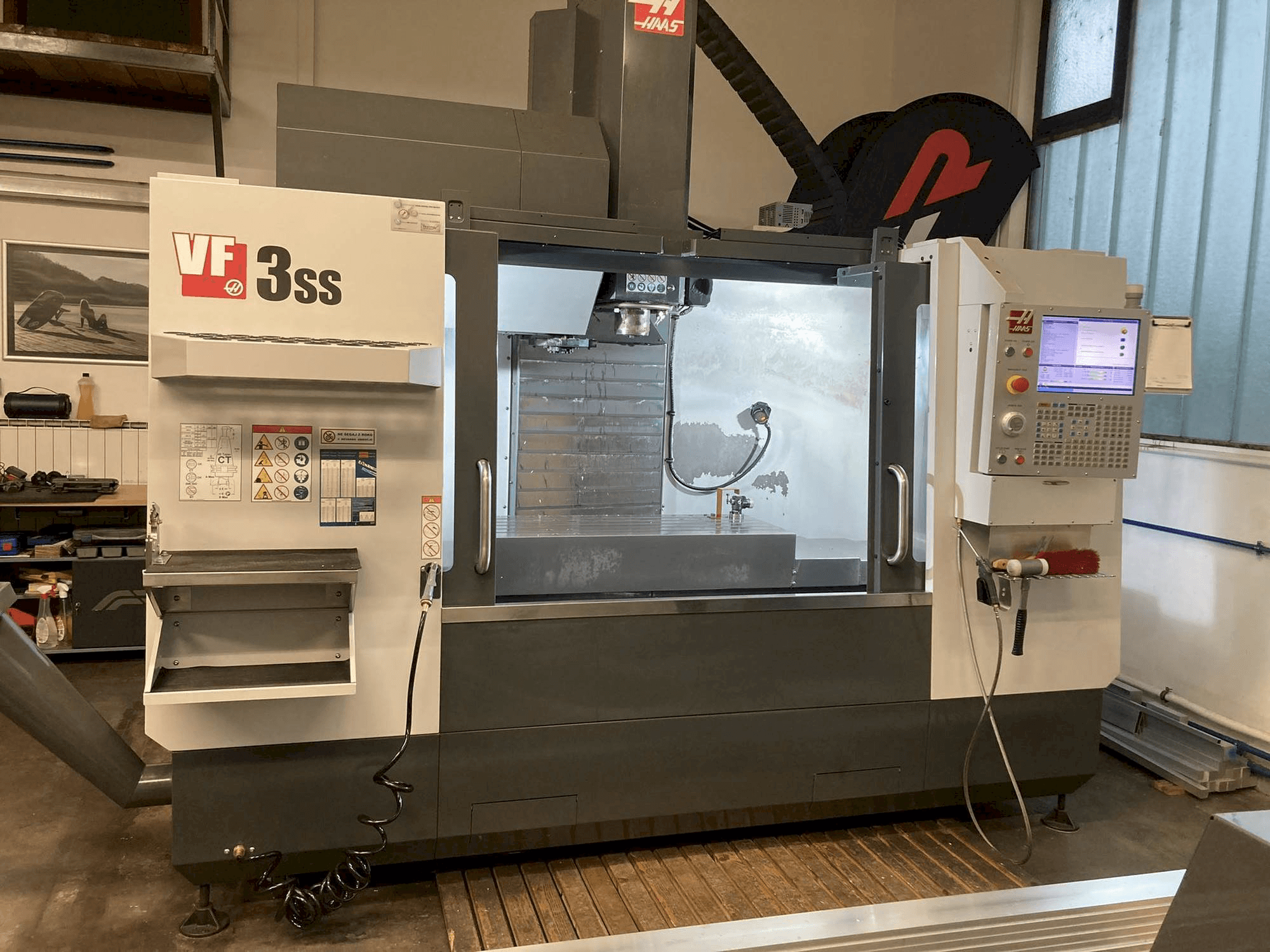

Front view of HAAS VF 3 SS  machine

HAAS VF 3 SS

HAAS - VF 3 SS

2019

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HAAS VF 3 SS Vertical Machining center was manufactured in the year 2019 and has 28571 production hours. It is equipped with a HAAS control unit and has 3 axis. The machine has a spindle speed of 12000 rpm.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: VF 3 SS
  • production hours: 28571
  • application type: Milling
  • Location: Slovenia
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: HAAS
  • GINDUMAC ID: SI-MIL-HAA-2019-00001

Technical Information

General Data

  • Machine weight: 6124 kg

Control Unit

  • Brand: HAAS

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22.4 kW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1016 mm
  • X-AXIS Rapid traverse: 35.6 m/min
  • Y-AXIS Movement: 508 mm
  • Y-AXIS Rapid traverse: 35.6 m/min
  • Z-AXIS Movement: 635 mm
  • Z-AXIS Rapid traverse: 35.6 m/min

Table

  • Outer length: 1219 mm
  • Outer width: 457 mm
  • TSlots size: 15.90 mm to 16.00 mm
  • Table load: 794 kg

Tools

  • Slots in storage: 30+1
  • Max weight: 5.4 kg
  • Max tool diameter: 64 mm
  • Max tool length: 330 mm
  • Type of tool holder: SMTC

    Additional Equipment

    • - RENISHAW
    • - 10 powered tools for free

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Tool changers: high-speed 30+1 side-mount
        • - Window air blast
        • - 55-gallon coolant tank
        • - Variable flow coolant
        • - Media display m-code; m130
        • - Haasconnect: remote monitoring
        • - Ethernet interface
        • - Early power-failure detection module
        • - Safe run
        • - Standard program memory, 1 gb
      • Qualitative Machine Benefits:
        • - Power surge protection

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
