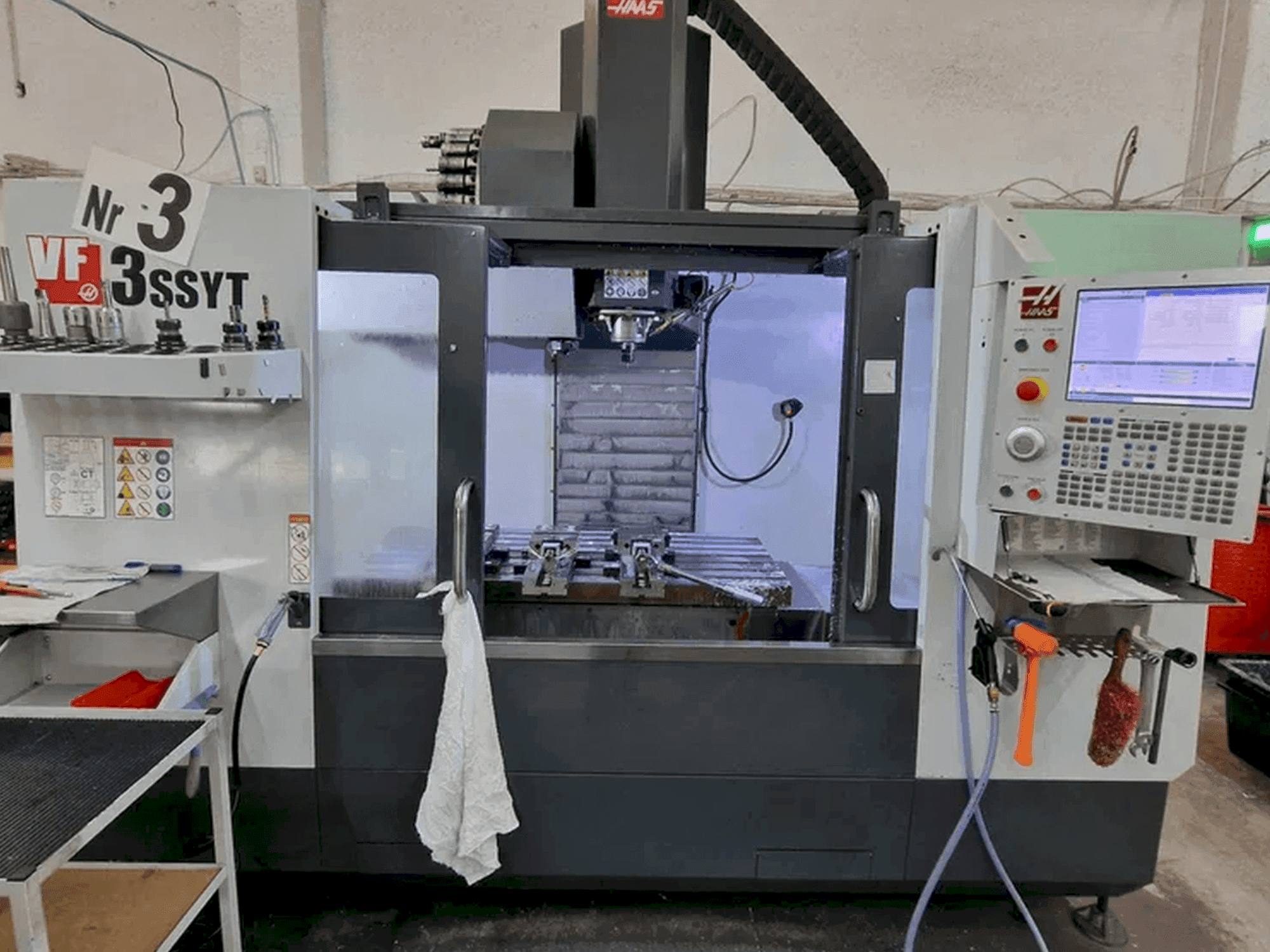

Front view of HAAS VF-3 SSYT  machine

HAAS - VF-3 SSYTPL-MIL-HAA-2019-00004

104,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis HAAS VF-3 SSYT was manufactured in 2019. Ideal for precision machining, this vertical machining center offers robust construction and high-speed capabilities. If you are looking to get high-quality milling capabilities, consider the HAAS VF-3 SSYT machine we have for sale. Contact us for more information.

Overview

  • brand: HAAS
  • year: 2019
  • MODEL: VF-3 SSYT
  • application type: Milling
  • Location: Poland
  • machine type: Vertical Machining Centre
  • availability: Immediately
  • control unit brand: HAAS

Technical Information - HAAS VF-3 SSYT

Control Unit

  • Brand: HAAS
  • Model: NGC

Main drive

  • Spindle speed range: 12000 1/MIN
  • Spindle motor power: 22.4 KW
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1016 mm
  • Y-AXIS Movement: 660 mm
  • Z-AXIS Movement: 635 mm

Table

  • Outer length: 1372 mm
  • Outer width: 610 mm
  • Min distance between vertical spindle and table: 107 mm
  • Max distance between vertical spindle and table: 742 mm
  • Table load: 794 kg

Media

  • Chip conveyor: Yes

    Additional Equipment

    • - CNC control HAAS (NGC version), compatible with Fanuc
    • - ISO40 spindle taper, CT type
    • - HSM – High-Speed Machining
    • - Minimum quantity lubrication system (MQL)Minimum quantity lubrication system (MQL)
    • - Wireless probing system (includes SO, MACRO, COORD, and VPS)Wireless probing system (includes SO, MACRO, COORD, and VPS)
    • - Additional 25μm filtration system
    • - Through-spindle coolant (TSC) – high-pressure pump (21 bar, 22 l/min)
    • - Fourth and Fifth-axis drive and wiring

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Maximum torque: 122. 0 nm @ 2000 rpmmaximum torque: 122. 0 nm @ 2000 rpmmaximum torque: 122. 0 nm @ 2000 rpm
        • - Drive type: inline direct-drive
        • - Tool changer: type: smtc 30+1 toolstool changer: type: smtc 30+1 tools

      Extra information

      • - Machine still under power

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
