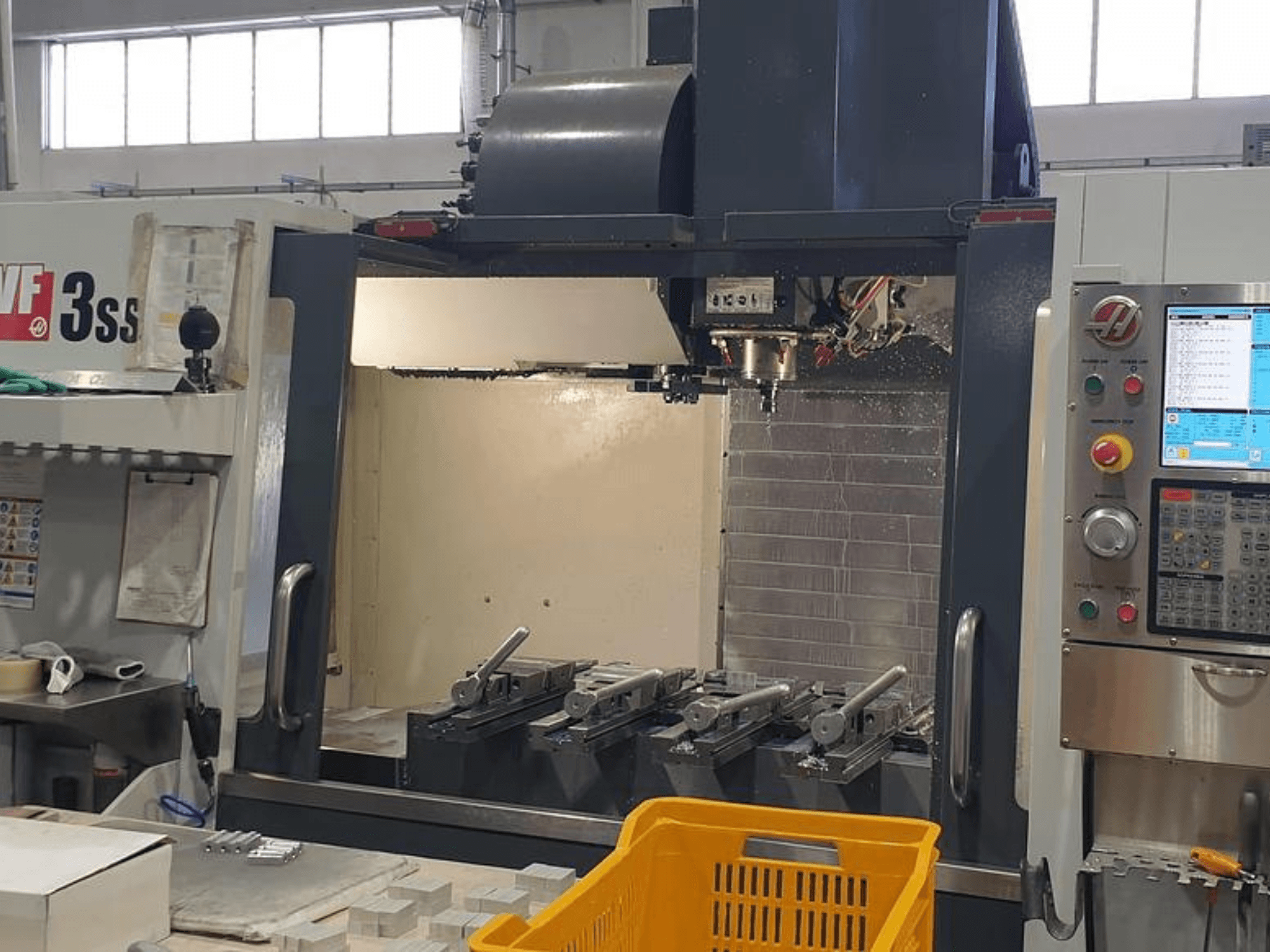

This 3-axis HAAS VF-3SS was manufactured in 2015. It features an X-axis travel of 1,016 mm, Y-axis travel of 508 mm, and Z-axis travel of 635 mm. The machine includes a table size of 1,219 × 457 mm and a tool magazine capacity of 24 positions. If you are looking to get high-quality machining capabilities, consider the HAAS VF-3SS vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: HAAS
- year: 2015
- MODEL: VF-3SS
- application type: Milling
- Location: Italy
- machine type: Vertical Machining Centre
- Available from: 01/04/2026
Technical Information - HAAS VF-3SS
Movement
- Number of Axes: 3
- X-axis Travel: 1016 mm
- Y-axis Travel: 508 mm
- Z-axis Travel: 635 mm
Technical Specification
- Spindle Power: 22.4 kW
- Spindle Speed: 12000 RPM
Additional Information
Table:
Dimensions: 1,219 × 457 mm
Number of T-slots: 5
Spindle:
Maximum torque: 122 Nm at 2,000 rpm
Tool taper: 40 taper
Feed rates:
Rapid traverse (X–Y–Z): 35.6 m/min
Tool changer:
Tool magazine capacity: 24 positions
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
