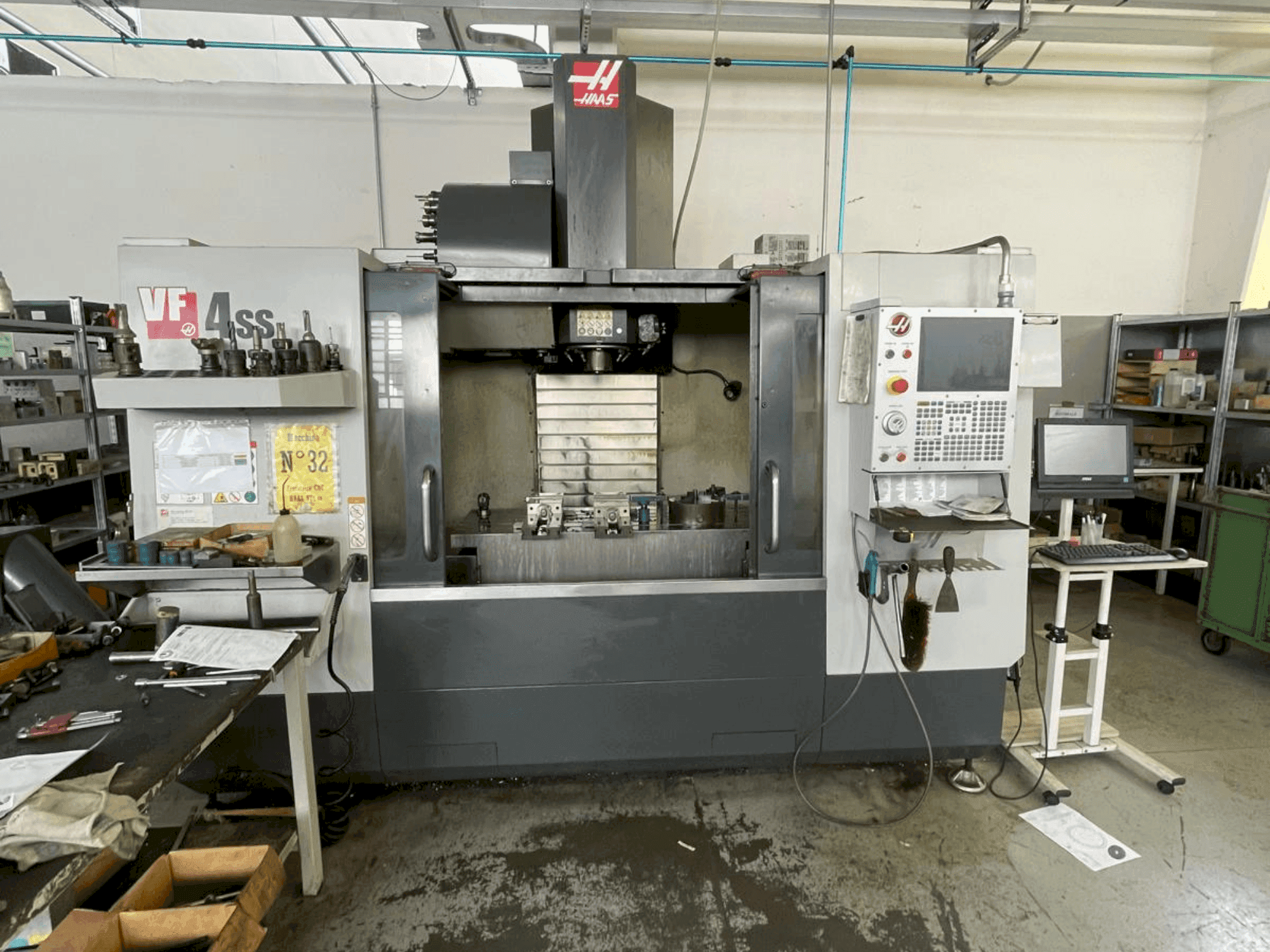

HAAS VF-4SS

Photo Gallery

HAAS - VF-4SSIT-MIL-HAA-2019-00007

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF-4SS Machining Center For Sale | gindumac.com

This 3-axis HAAS VF-4SS vertical machining center was manufactured in 2019. It features a spindle with a maximum speed of 12,000 rpm and a power of 22.4 kW. The machine offers a travel range of X=1270 mm, Y=508 mm, Z=635 mm, and a rapid feedrate of 35.6 m/min on all axes. The table can support up to 794 kg. Consider the opportunity to buy this HAAS VF-4SS vertical machining center. Contact us for more information.

Overview

brand: HAAS
year: 2019
MODEL: VF-4SS
application type: Milling
Location: Italy
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF-4SS

Control Unit

Control Brand: HAAS
Control Model: na

Dimensions

Machine Depth: 3870 mm
Machine Height: 2770 mm
Machine Weight: 6260 kg
Table Load: 794 kg

Movement

Number of Axes: 3
X-axis Travel: 1270 mm
Y-axis Travel: 508 mm
Z-axis Travel: 635 mm

Technical Specification

Max. Tool Weight: 5.4 kg
Spindle Power: 224 kW
Spindle Speed: 12000 RPM

Additional Information

Additional equipment

Technical manuals and documentation
Chip conveyor
Optional tools included
Loading at our facility available

Machine Benefits

Technical Machine Benefits

Max torque: 122 nm @ 2000 rpm
Liquid cooled – air/oil lubrication
Size: 1321 x 495 mm
Type: smtc – 30+1 tool positions
Tool change time: 1. 8 s
Rapid: 35. 6 m/min on all axes
Max thrust z-axis: 17459 n
Voltage: 220/440 v – 3
Phase max current draw: 70 a (at 220 v)

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
