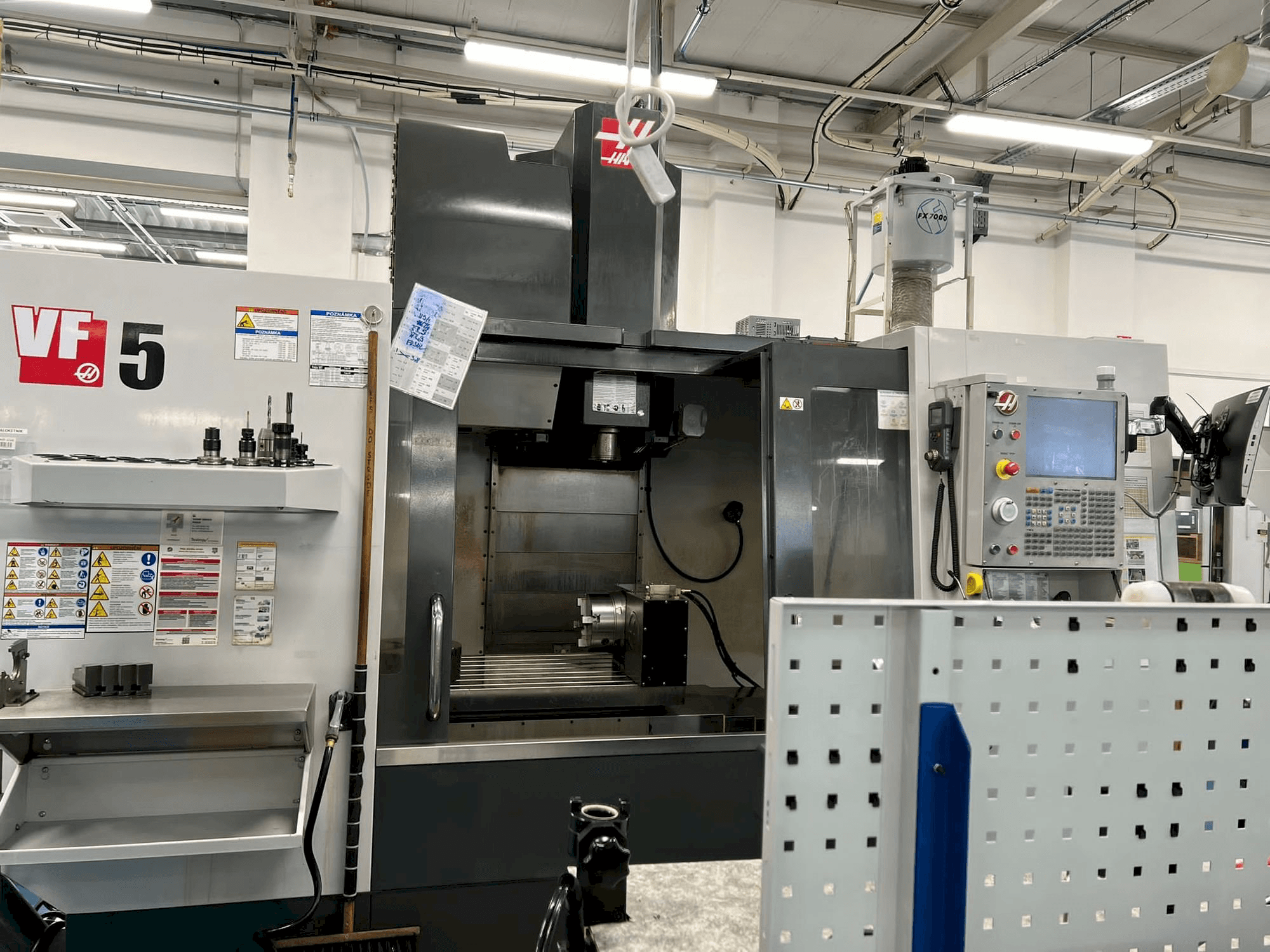

Front view of HAAS VF-5/40  machine

HAAS VF-5/40

HAAS - VF-5/40



Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This HAAS VF-5/40 Vertical Machine Center was manufactured in the year 2013 in the United States and has 10800 hours, of which 3700 are cutting hours. It is equipped with a Haas control unit and has 4 axis. The machine has a spindle speed of 8000 rpm and some tools included.


  • brand: HAAS
  • year: 2013
  • MODEL: VF-5/40
  • production hours: 10800
  • application type: Milling
  • Location: Italy
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Haas
  • GINDUMAC ID: IT-MIL-HAA-2013-00001

Technical Information

General Data

  • Machine weight: 6620 kg

Control Unit

  • Brand: Haas

Main drive

  • Spindle speed range: 8000 1/MIN
  • Spindle motor power: 22.4 kw
  • Number of axis: 4


  • X-AXIS Movement: 1270 mm
  • Y-AXIS Movement: 660 mm
  • Z-AXIS Movement: 635 mm


  • Outer length: 1320 mm
  • Outer width: 584 mm
  • Table load: 1800 kg

    Additional Equipment

    • - Some tools included

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Distance from spindle to work area 178 / 813 mm
        • - 40 position choolchanger
        • - Coolant tank 360 liter
        • - Usb and rs232 communication interface
        • - High pressure tool cooling
        • - Renishaw measuring probe
        • - Preparation for 4th axis + 4th axis included
        • - Programmable coolant cooling nozzle

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
