HAAS - VF-5/50XTDE-MIL-HAA-2012-00003
Do you have further questions? Contact us.

Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- ➤ Used HAAS VF-5/50XT For Sale | gindumac.com

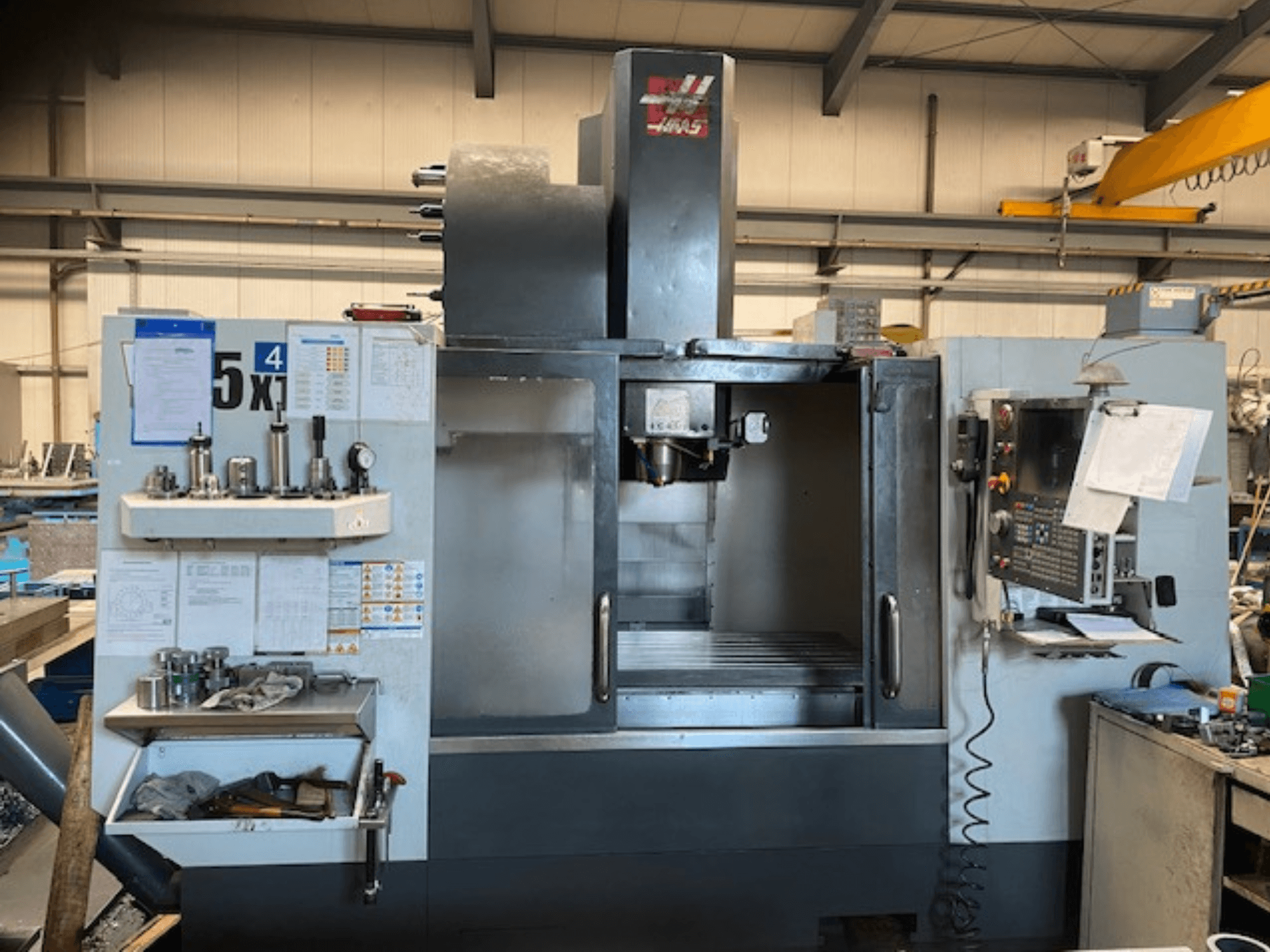

This 3-axis HAAS VF-5/50XT was manufactured in 2012, designed for robust vertical machining. It operates on a voltage of 360/480, with a 3-phase power supply and a frequency range of 50/60 Hz. The machine handles a full load of 45 amps and a largest load of 70 amps. If you are looking to get high-quality milling capabilities, consider the HAAS VF-5/50XT machine we have for sale. Contact us for more information.
Overview
- brand: HAAS
- year: 2012
- MODEL: VF-5/50XT
- production hours: 3283
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Additional Information
Voltage: 360/480
Phase: 3
Hertz: 50/60
Full Load: 45 Amps
Largest Load: 70 Amps
Short Circuit Interrupting Capacity: 10000 Amps
Short Circuit Current: 5000 Amps RMS Symmetrical
Wiring Diagram: C5 0284
3283 operating hours
Vertical machining center with travels of 1,524 × 660 × 635 mmSK-50 spindle head with gearbox
30 hp vector drive (22.4 kW), 7,500 rpm,
Tool changer with 30+1 magazine positions,
X-axis rapid traverse up to 540 ipm (13.7 m/min),
Y- and Z-axis rapid traverse up to 710 ipm (18.0 m/min),
Portable color control panel,
Programmed coolant nozzle,
Automatic chip conveyor system (spiral),
1 MB program memory,
15" color LCD screen,
USB port,
Key switch for program locks,
Synchronized tapping, and a 95-gallon (360-liter) continuous cooling system Coolant supply.
Transformer mounted in a floor-standing enclosure, IP 23
Transformer completely vacuum resin impregnated
Connection to screw terminals via cable glands
Coolant supply through the spindle, 69 bar, with additional coolant filter system.
Item 4 – 4AXD
Drive and wiring for the 4th axis.
Item 5 – CSMDHV
Control simulator module (230 V) with dual software
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
