HAAS VF 7/50

Photo Gallery

HAAS - VF 7/50DE-MIL-HAA-2013-00002

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used HAAS VF 7/50 For Sale | gindumac.com

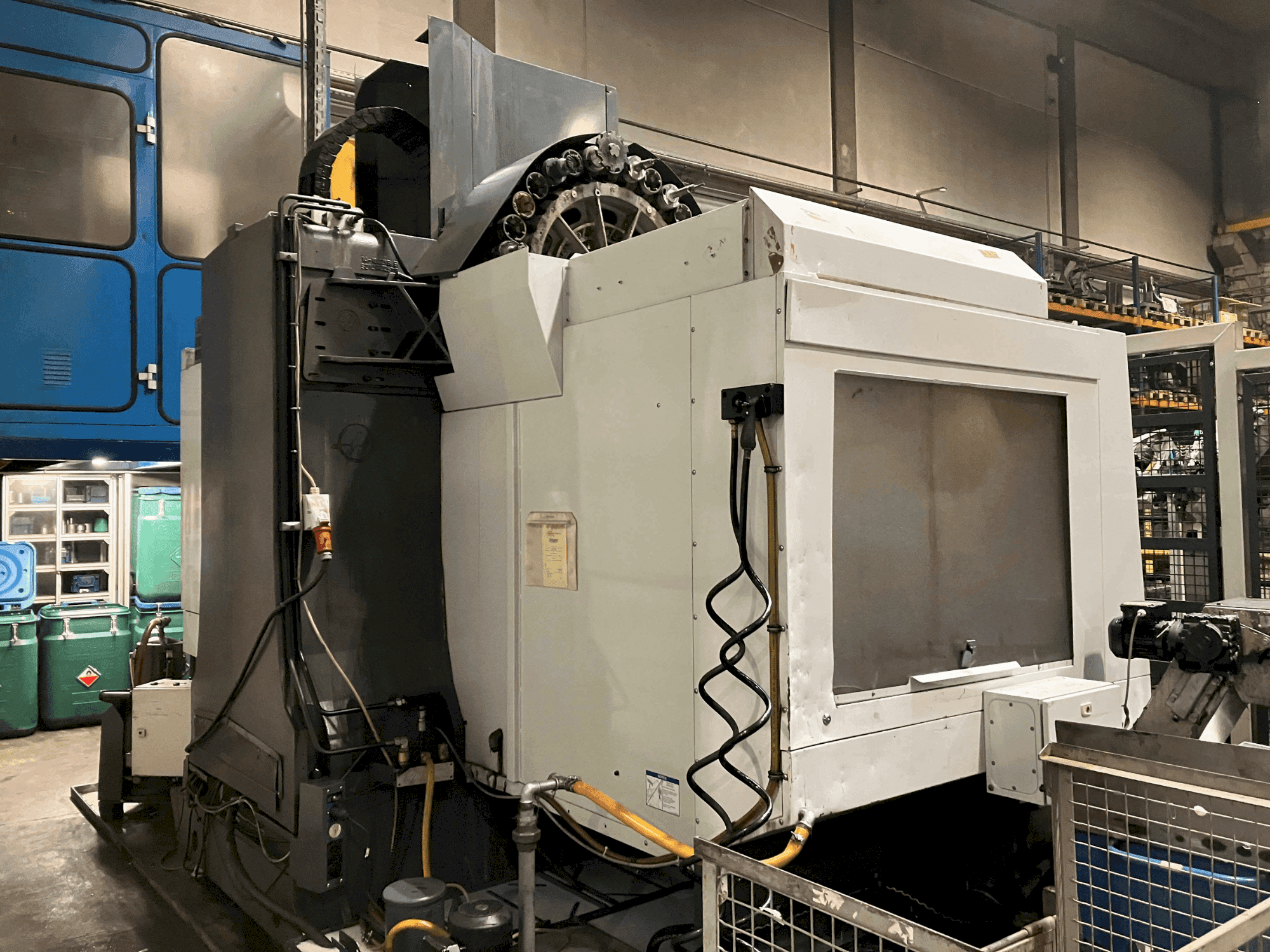

This 3-axis HAAS VF 7/50 vertical machining center was manufactured in 2013. It features a robust SK 50 spindle, a spindle speed of 7,500 rpm, and a powerful 22.4 kW motor. The machine includes a 30-slot tool magazine, a 360-liter coolant tank, and a table size of 2,134 x 711 mm. Consider the opportunity to buy this HAAS VF 7/50 vertical machining center. Contact us for more information about this machine.

Overview

brand: HAAS
year: 2013
MODEL: VF 7/50
production hours: 23000
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
control unit brand: HAAS

Technical Information - HAAS VF 7/50

Control Unit

Control Brand: HAAS
Control Model: n/a

Dimensions

Machine Weight: 12000 kg
Table Load: 1800 kg

Movement

Number of Axes: 3
X-axis Travel: 2134 mm
Y-axis Travel: 813 mm
Z-axis Travel: 762 mm

Technical Specification

Spindle Power: 22.4 kW
Spindle Speed: 7500 RPM

Additional Information

Additional equipment

Spiral Chip Conveyor
Detection Module for Power Failure
Programmable Coolant Nozzle
Coolant Tank Capacity: 360 liters
Intuitive Renishaw Wireless Touch Probe
Internal Cooling Supply: 69 bar
Additional Coolant Filter System
High-Intensity Lighting
Automatic Compressed Air Supply
8 Additional M-Functions

Machine Benefits

Technical Machine Benefits

Two units available with identical equipment, differing only in chip conveyor positioning (left/right).
Portable control panel with lcd color screen
Table size: 2134 x 711 mm
Tool magazine capacity: 30 places, disc
Synchronized tapping
Spindle orientation
The concentricity of the spindles on both machines is 0. 02 mm and 0. 03 mm respectively (each with a bearing clearance of 0. 01).

Extra Information

Machine still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
