HAITIAN - JU650IIES-INJ-HAI-2018-00001
Do you have further questions? Contact us.
![sales contact](https://s3.eu-central-1.amazonaws.com/gindumac/staff/profile_pictures/borja-garcia.png)
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
![whatsapp](https://gindumac.s3.eu-central-1.amazonaws.com/images/email-icons/whatsapp.png)
- GINDUMAC
- Products
- Plastics Processing Machinery

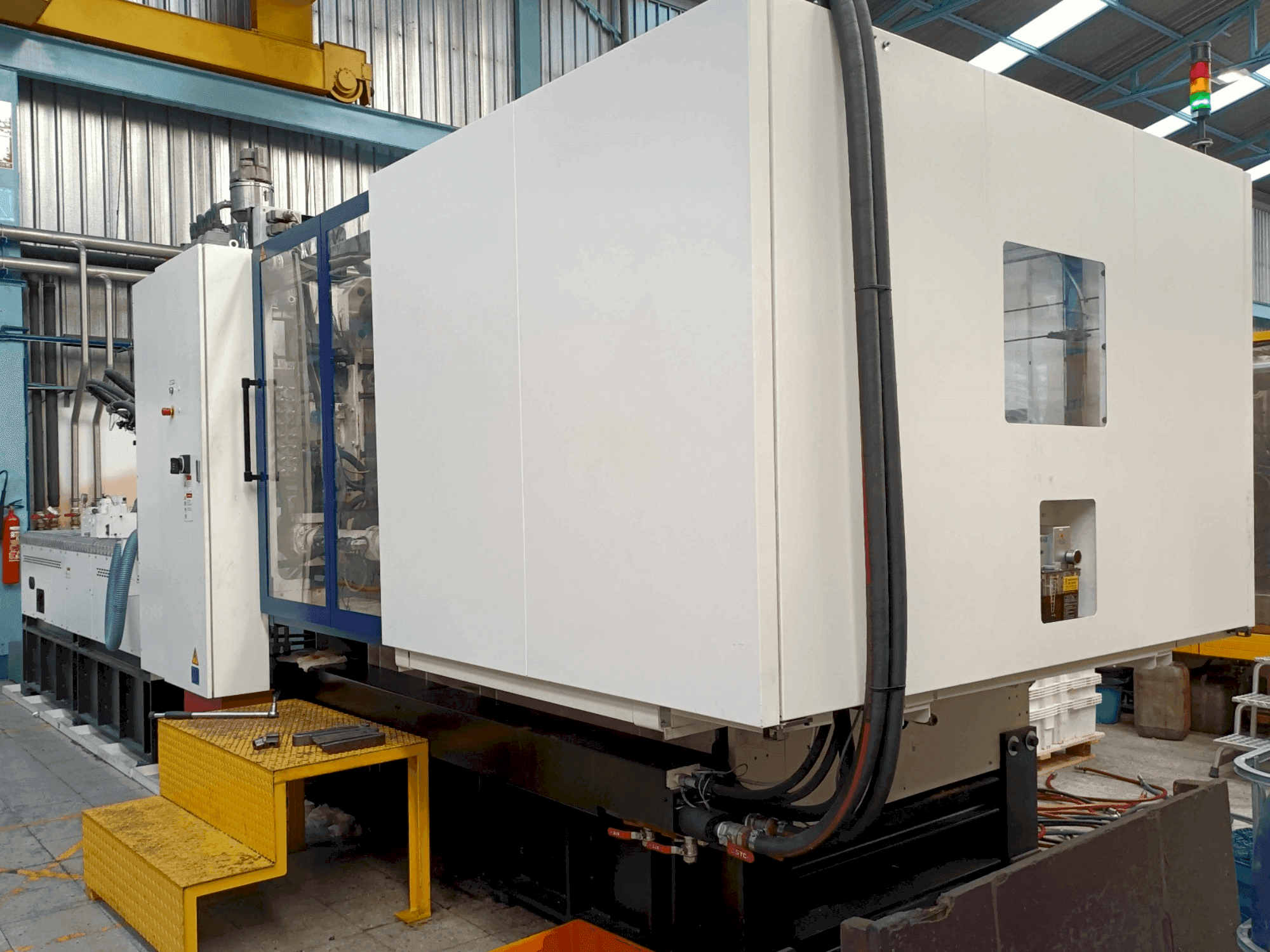

- HAITIAN JU650II Injection moulding machine
This HAITIAN JU650II Injection moulding machine was manufactured in the year 2018 in China. The machine has a clamping force of 6500 kN and a screw diameter of 80 mm.
Overview
- brand: HAITIAN
- year: 2018
- MODEL: JU650II
- application type: Injection Moulding
- Location: Spain
- machine type: Injection Moulding Machines
- availability: Immediately
Technical Information - HAITIAN JU650II
General Data
- Measurements width: 9500 mm
- Measurements depth: 2690 mm
- Measurements height: 2990 mm
- Machine weight: 28000 KG
Injection Unit
- Screw diameter: 80 mm
Clamping unit
- Clamping force: 6500 KN
- Ejector force for / back: 110 KN
Additional Information
- Technical Machine Benefits:
- - Calculated injection volume 2262 cm3
- - Plasticization capacity (ps) 70. 9 g/s
- - Available die height (min:) 400 mm
- - Injection capacity (ps) 2058 g
- - Tie rod spacing (hxv) 1040 x 910 mm
- - Heating input power 50. 7 kw
- - Injection rate or frequency 498 g/s
- - Injection pressure 220 mpa
- - Available die height (max. ) 1150 mm
- - Daylight opening 1750 mm
- Qualitative Machine Benefits:
- - Direct ejector 250 mm
- - Screw speed 0-135 r/min
- - Oil tank capacity 1130 l
- - Movement direct from the mold 600/1350
- - Direct injection 450 mm
- - Ejector number 21 pc
- - Minimum mold dimension (lxw) 728 x 637 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
