- HAMAI MC-6VA Vertical Machining Center

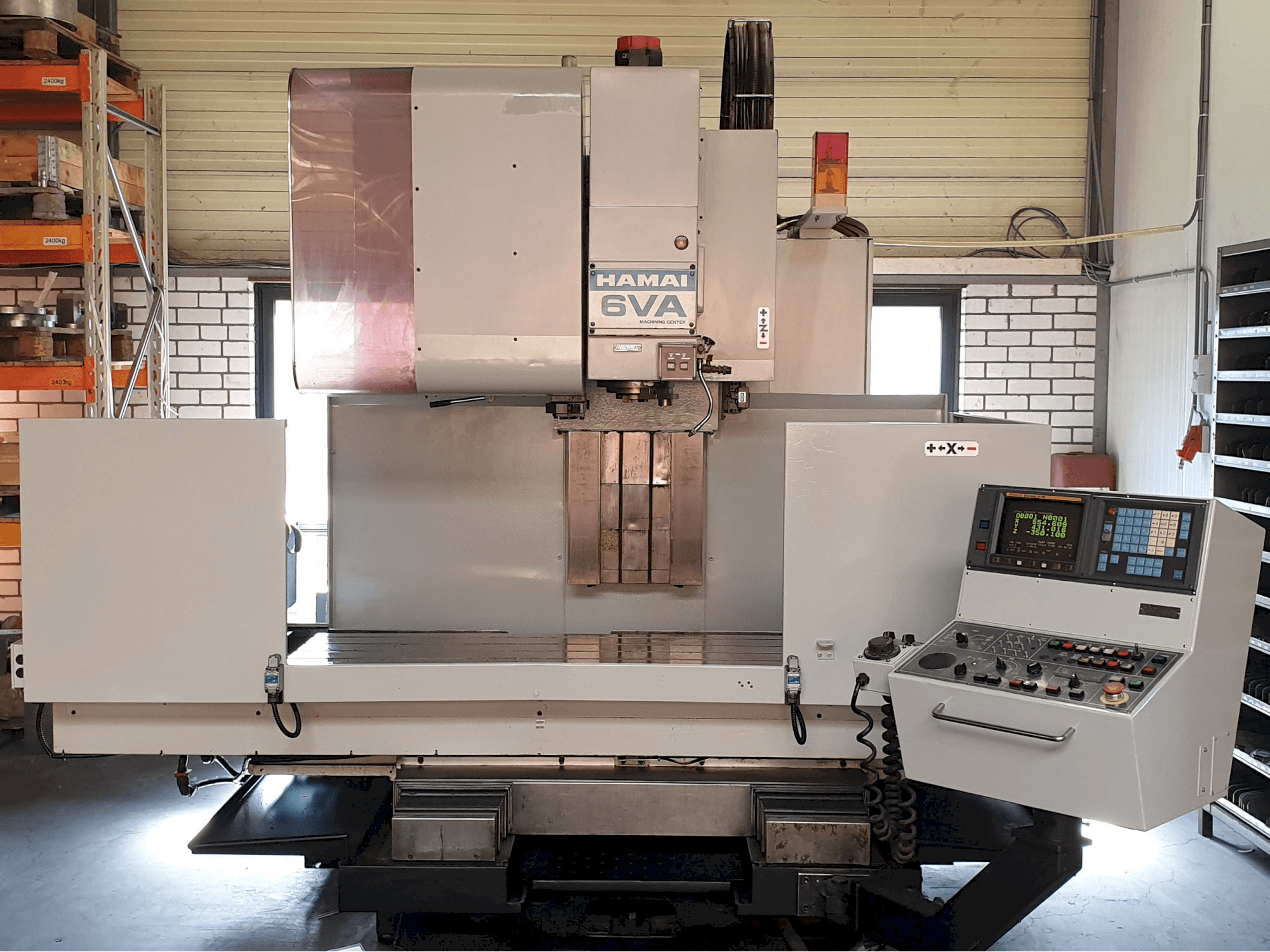

This HAMAI MC-6VA Vertical Machining Center from 1990 was manufactured in Japan and has a production time of 7000 working hours since then. Operated through a FANUC Series O-M Control Unit, this machine counts with a twin arm for direct change. It has an excellent accuracy and a long life span, being notable for its well perfect conditions as it has been recently retrofitted. It comes with a wide range of movement and doors can be openend for long parts. Besides that, it incorporates a saddle mounting to the bedways. Additional equipment is included in the delivery.
Overview
- brand: HAMAI
- year: 1990
- MODEL: MC-6VA
- production hours: 7000
- application type: Milling
- Location: Netherlands
- machine type: Vertical Machining Centre
- control unit brand: FANUC
Technical Information - HAMAI MC-6VA
Control Unit
- Control Brand: FANUC
- Control Model: Series O-M
Dimensions
- Machine Depth: 3265 mm
- Machine Height: 2975 mm
- Machine Weight: 11700 kg
- Table Length: 1800 mm
- Table Width: 890 mm
Movement
- X-axis Travel: 1250 mm
- Y-axis Travel: 650 mm
- Z-axis Travel: 550 mm
Technical Specification
- Max. Tool Weight: 15 kg
- Number of Tools: 24
- Spindle Speed: 4000 RPM
Additional Information
Additional equipment
- 1x Electric Transformer
- 1x Air cooler
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
