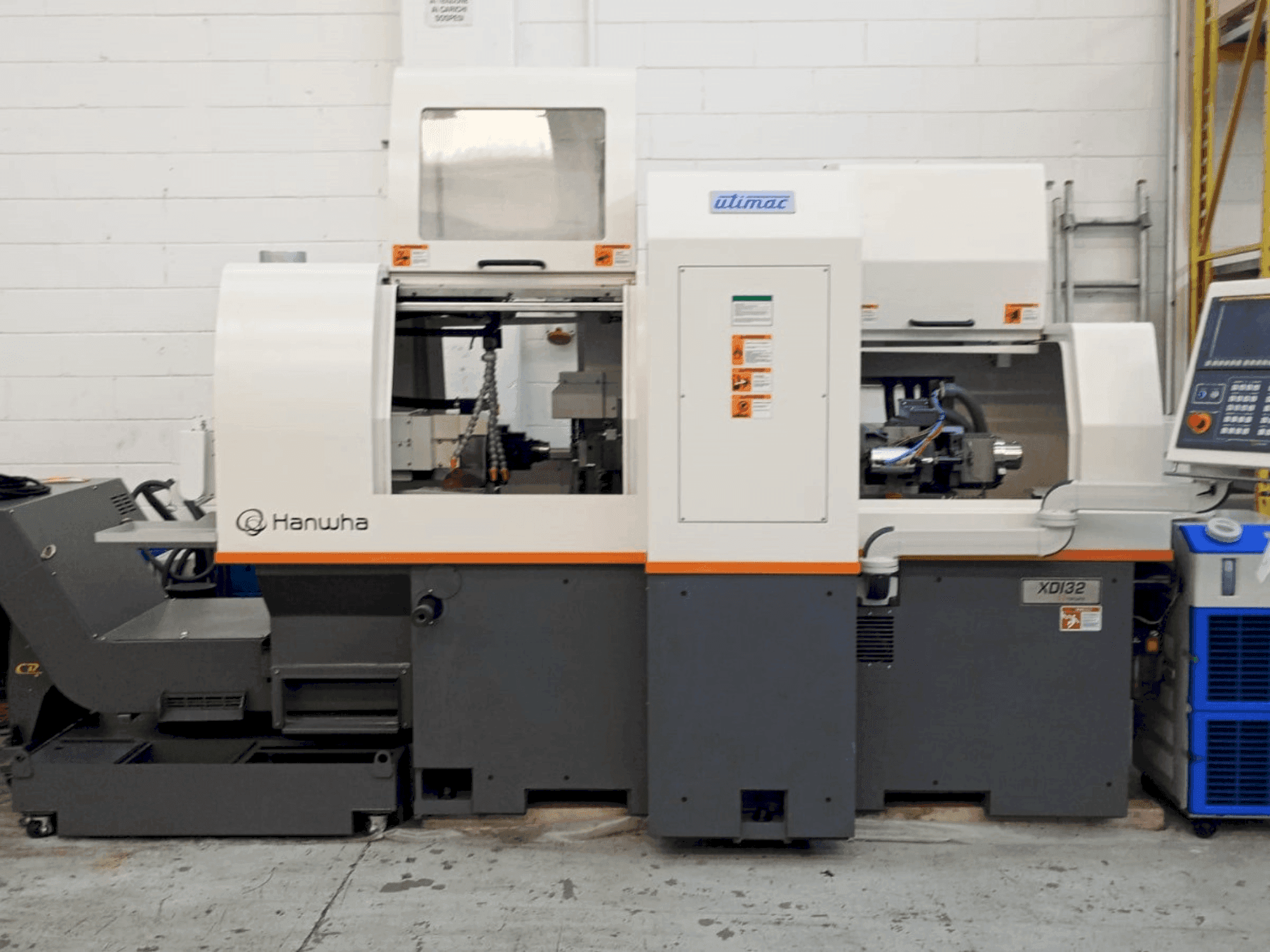

Hanwha XDI32-N

Photo Gallery

Hanwha - XDI32-NIT-TUR-HAN-2021-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hanwha XDI32-N For Sale | gindumac.com

This 9-axis Hanwha XDI32-N was manufactured in 2021, featuring a dual spindle system with a maximum speed of 6,500 rpm and power of 2.2/5.5 kW each. It supports a maximum work diameter of 32 mm and includes a 315-liter cooling tank. Ideal for precision Swiss-type turning, this machine ensures efficient and reliable performance. If you are looking to get high-quality turning capabilities, consider the Hanwha XDI32-N machine we have for sale. Contact us for more information.

Overview

brand: Hanwha
year: 2021
MODEL: XDI32-N
application type: Turning
Location: Italy
machine type: Swiss Type Turning Machine

Technical Information - Hanwha XDI32-N

Movement

Number of Axes: 9

Technical Specification

Spindle Speed: 6500 RPM

Additional Information

Power supply: 3-phase 200/220 VAC
Current: 60 A
Frequency: 50/60 Hz
Short-circuit nominal current: 20 kA
Press operation (compressed air): 4–6 kg/cm² (3.9–5.9 bar)
Pallet height: 1120 mm
Main spindle max work diameter: 32 mm
Secondary spindle motor type: integrated
Secondary spindle max work diameter: 32 mm
Secondary spindle bore diameter: 32 mm
Cooling tank capacity: 315 liters
Cooling pump power: 1.1 kW
Lubrication tank capacity: 1.8 liters
Lubrication pump power: 5 W
Lubrication consumption: 8 cc / 30 min
Pneumatic air consumption: 20–30 liters/min
X1-axis external diameter travel: 64 mm
Y1-axis external diameter travel: 383 mm
X2-axis external diameter travel: 100 mm
Y2-axis external diameter travel: 383 mm
X3-axis external diameter travel: 404 mm
Y3-axis external diameter travel: 283 mm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
