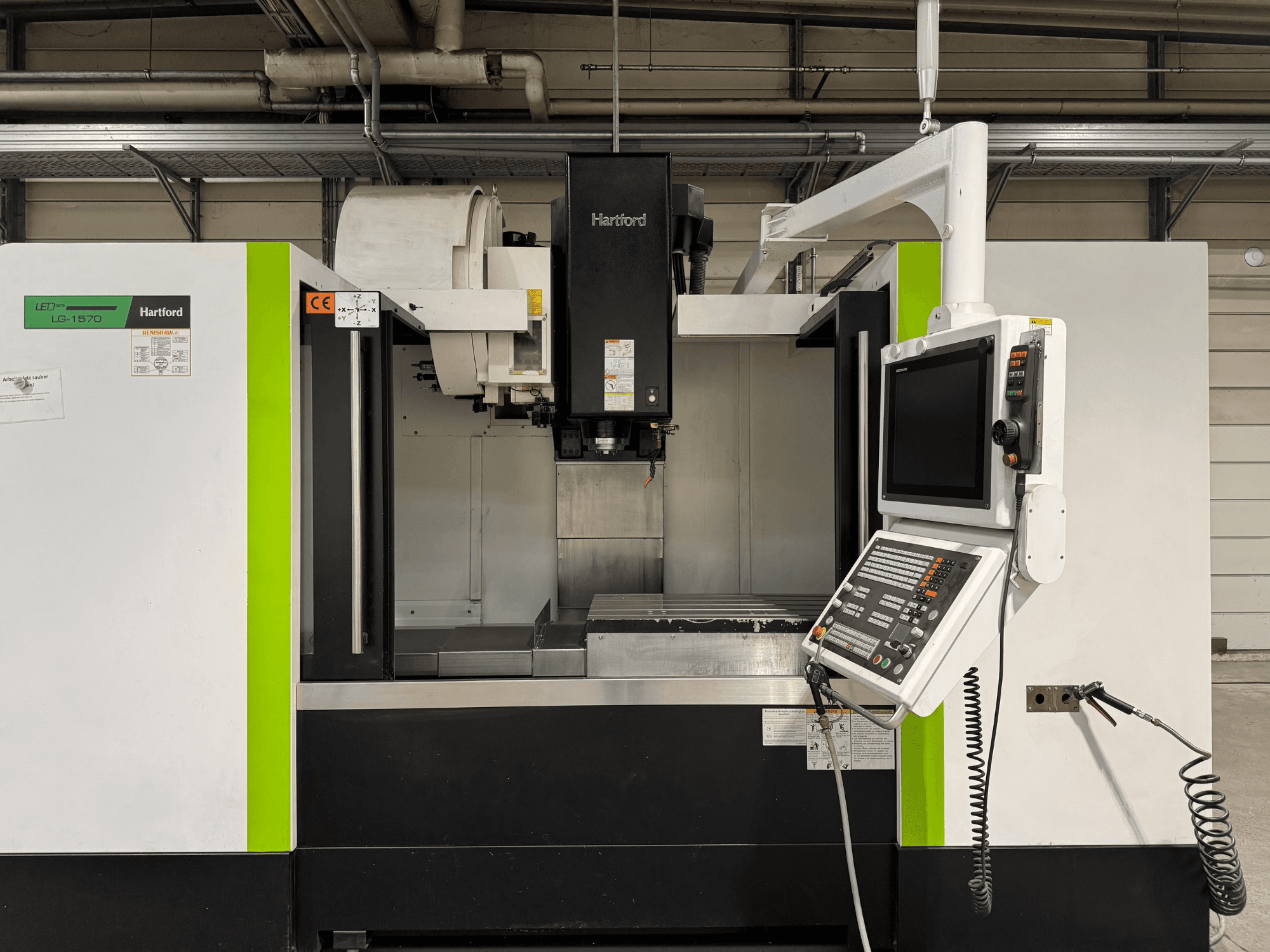

HARTFORD - LG 1570 TNC 640DE-MIL-HAR-2023-00001

- T-Slots configuration: 5 slots, 125 mm distance, 18 mm size

- Guideway System: Upgraded Linear Roller Guideways on X, Y, and Z axes (instead of standard ball guides)

- Feed Drives: Digital servo motors with ball screws on all axes

- Main Spindle Taper: SK40

- Main Spindle Drive: Pulley/Belt driven AC motor

- Max. Spindle Torque (M max): 89 Nm

- Spindle Temperature Control: Closed cooling circuit with separate spindle cooling unit

- Tool Changer Type: Automatic Tool Changer (ATC) with rapid-change double arm

- Tool Magazine Capacity: 30 positions (ATC30)

- Max. Tool Diameter: Ø75 mm (Ø150 mm if adjacent positions are empty)

- Max. Tool Length: 300 mm

- Workpiece Probe: 3D Touch Probe (installed for automatic zero-point and position measurement)

- Tool Probe: Tool Touch Probe System (installed on table for length, diameter, and tool breakage detection)

- Internal Coolant Supply (IKZ): High-pressure pump system, max. 20 bar with cartridge filter

- External Coolant Supply (AKZ): Multi-nozzle system on spindle nose

- Air Supply: Spindle nose compressed air cooling nozzle & central air through the spindle (programmable via M-functions)

- Chip Management: Enclosed workspace with sloped bed, chip flushing system, and longitudinal hinged belt chip conveyor (discharge height approx. 1,200 mm, discharge side: Left)

- Enclosure features: Front electronically monitored sliding door, side swing doors with windows for long workpieces

- Lubrication: Fully automatic central lubrication system with level control and CNC warnings

- Workspace Lighting: 2x LED lights

- Additional Equipment: Control cabinet air conditioning unit, electronic handheld handwheel, compressed air gun with coiled hose, hand-operated coolant flushing gun

- Color Scheme: Black (base frame, column, vertical slide, coolant tank, cabinet, doors, conveyor) & White (enclosure housing)
