➤ Used HARTFORD MVP-13 For Sale | gindumac.com

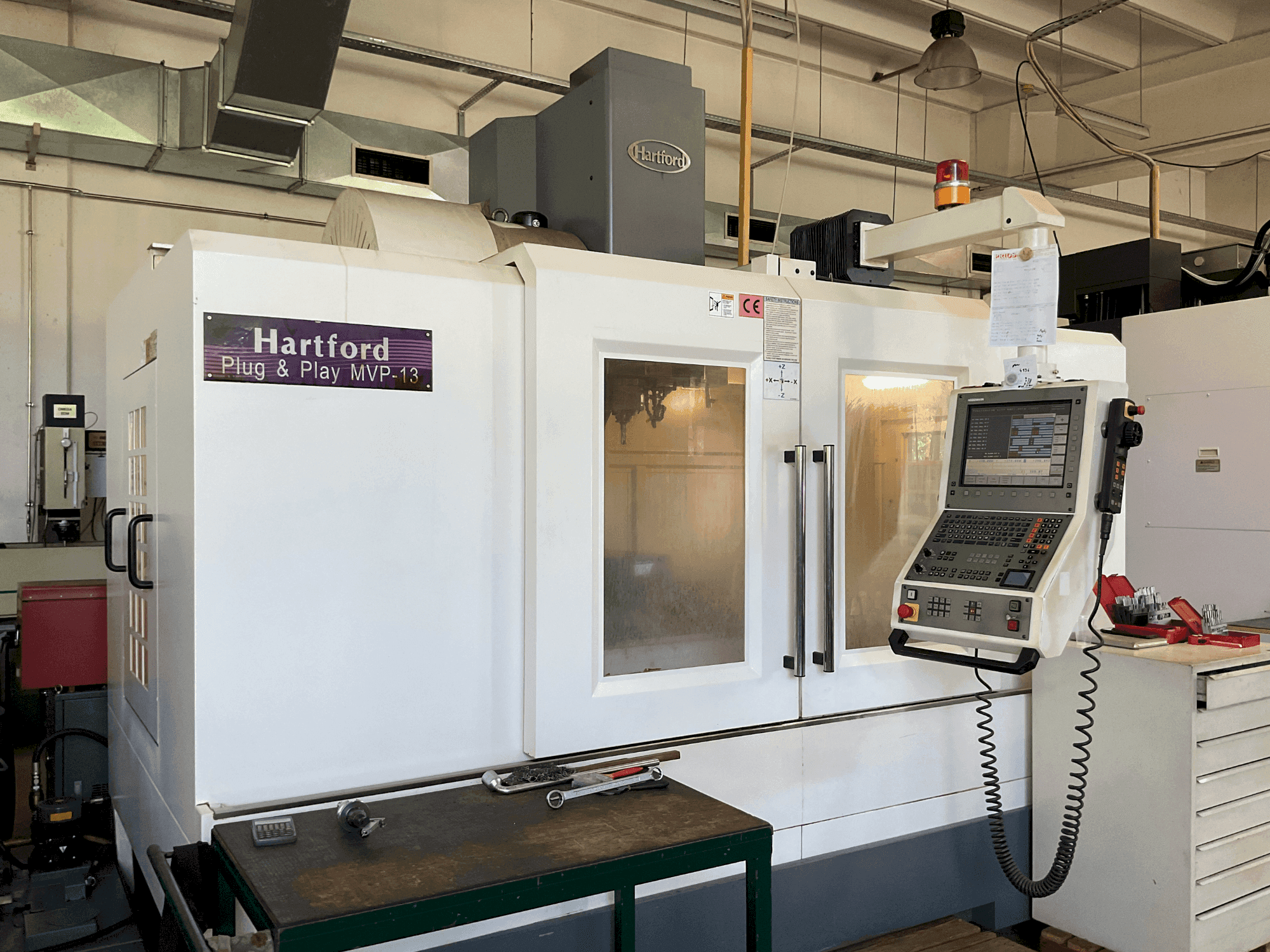

This 3-axis Hartford MVP-13 vertical machining center was manufactured in 2008. It features a direct drive main spindle, linear rolling guideways, and a BT-40 taper. The spindle operates at up to 15,000 RPM with a 13 kW power output. It supports a table load of 1,500 kg and offers a rapid traverse rate of 24,000 mm/min. Consider the opportunity to buy this Hartford MVP-13 vertical machining center. Contact us for more information about this machine.

Overview

brand: HARTFORD
year: 2008
MODEL: MVP-13
application type: Milling
Location: Slovenia
machine type: Vertical Machining Centre
availability: Immediately
control unit brand: HEIDENHAIN

Technical Information - HARTFORD MVP-13

Control Unit

Brand: HEIDENHAIN
Model: TNC530

Movement

X-AXIS Movement: 1300 MM
Y-AXIS Movement: 700 MM
Z-AXIS Movement: 650 MM

Additional Equipment

- Through-spindle air blow / Spindle oil cooling / HEIDENHAIN manual pulse generator MPG HR 40 / HEIDENHAIN three-axis linear scales / PC connection via electrical cable + TNC software / CE certification / RS-232 interface / Centralized lubrication via controller / Work light / Automatic machine shut-off / Manual air blow gun / Workpiece cooling system / Oil separator / Spindle pretensioning

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Weight (kg): 9600
- - Cutting feed rate: 1 – 12000 mm/min /rapid traverse rate: 24000 mm/min
- - Max table-to-spindle distance: 770 mm / spindle diameter: 50 mm
- - Table size: 1300 x 700 mm / table load capacity: 1500 kg

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
