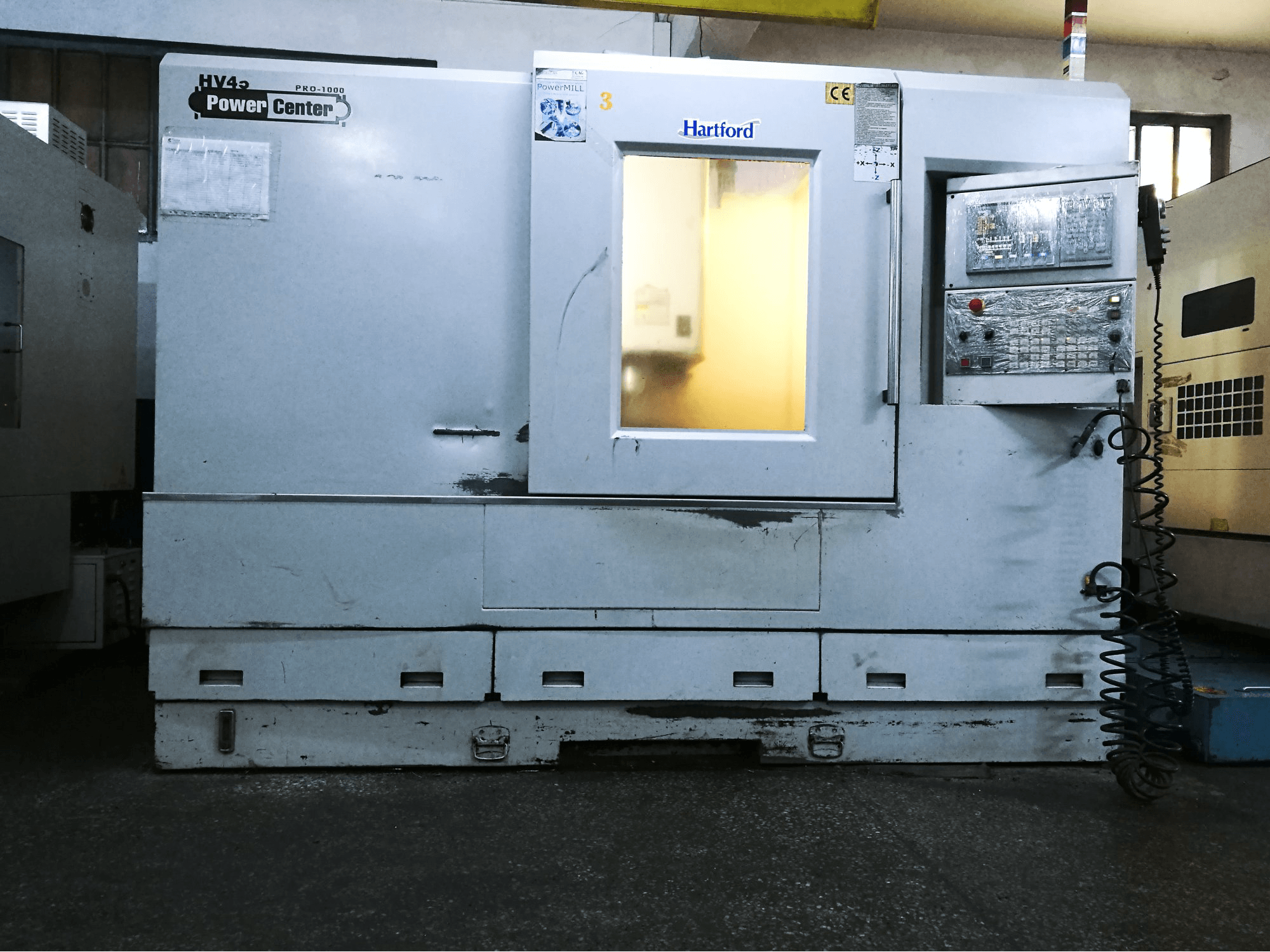

Working room of Hartford PRO1000S Machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

HARTFORD PRO1000S

Photo Gallery

HARTFORD - PRO1000STR-MIL-HAR-2005-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Hartford PRO1000S Vertical Machining Center

This Hartford PRO1000S Vertical Machining Center from 2005 stands in a perfect condition. Operated through a Mitsubishi Hartrol-M500 Control unit (with RJ45 / RS232 interface), the equipment has a range of movements of 1000, 600 and 600 millimeters (X-Axis, Y-Axis and Z-Axis respectively).

Overview

brand: HARTFORD
year: 2005
MODEL: PRO1000S
application type: Milling
Location: Turkey
machine type: Vertical Machining Centre
availability: Sold
control unit brand: MITSUBISHI

Technical Information - HARTFORD PRO1000S

General Data

Measurements width: 3065 mm
Measurements depth: 2500 mm
Measurements height: 2500 mm
Machine weight: 5800 kg

Control Unit

Model: Hartol-M500
Interface: RJ45, RS232
Remote control: Yes
Brand: MITSUBISHI

Movement

X-AXIS Movement: 1000 mm
X-AXIS Working Feed: 0-12000 mm/min
X-AXIS Rapid traverse: 20 m/min
Y-AXIS Movement: 600 mm
Y-AXIS Working Feed: 0-12000 mm/min
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 600 mm
Z-AXIS Working Feed: 0-12000 mm/min
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 1150 mm
Outer width: 600 mm
TSlots size: 18 mm
Number of tslots: 5
Distance between: 100 mm

Tools

Max weight: 6 kg
Max tool diameter: 90 mm
Max tool length: 250 mm

Media

Main electronic connection: 200-220 V / 3 P / 50-60 Hz
Power consumption: 19 kVA
Air pressure: 6.5 bar

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
