- HELLER BEA3 Horizontal Machining Center

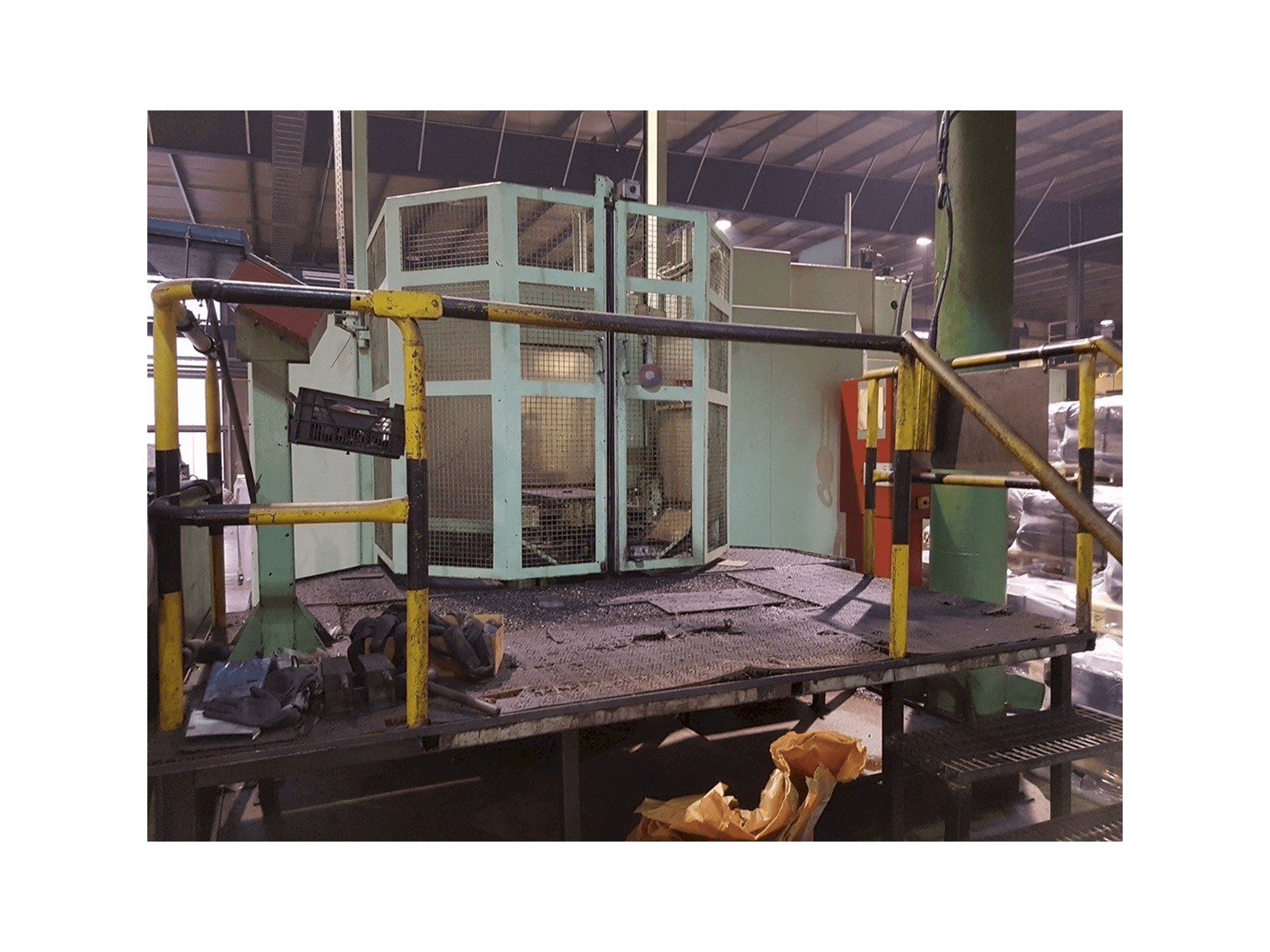

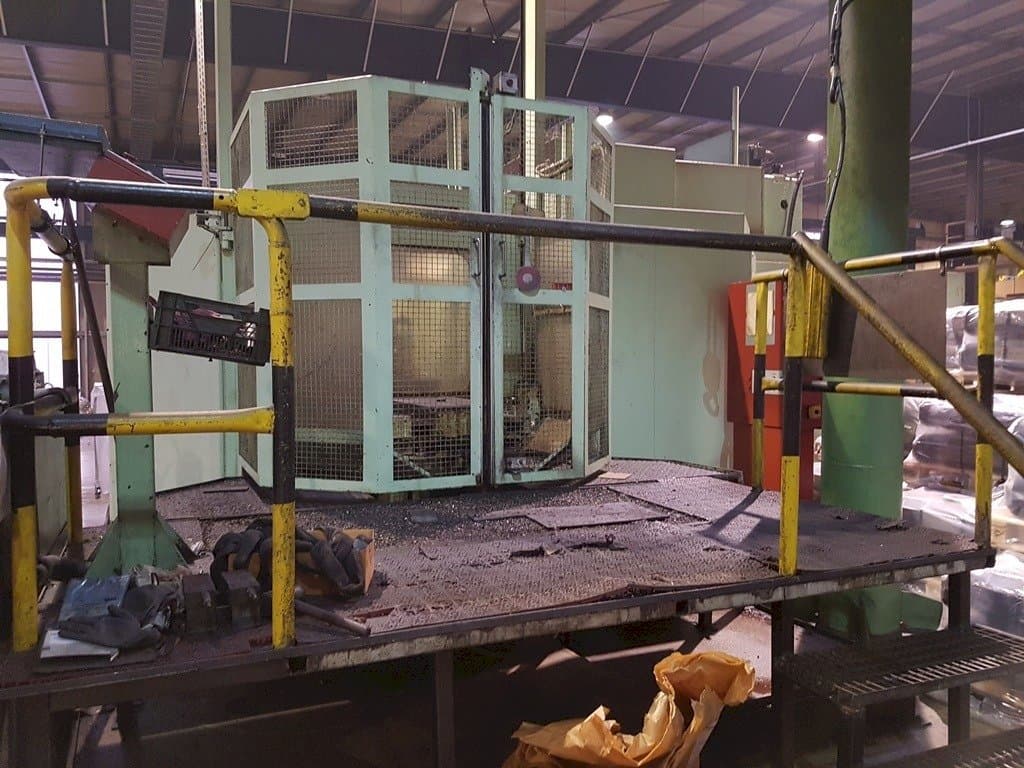

This HELLER BEA3 Horizontal Machining Center was built in 1985 in Germany. This reliable machine incorporates a spindle speed range up to 4000 rpm.
Overview
- brand: HELLER
- year: 1985
- MODEL: BEA3
- application type: Milling
- Location: Germany
- machine type: Horizontal Machining Centre
- availability: Sold
Technical Information - HELLER BEA3
General Data
- Measurements width: 5300 mm
- Measurements depth: 6800 mm
- Measurements height: 4000 mm
- Machine weight: 16000 kg
Main drive
- Spindle speed range: 45-4000 rpm 1/MIN
Movement
- X-AXIS Movement: 1250 mm
- Y-AXIS Movement: 800 mm
- Z-AXIS Movement: 1000 mm
Tools
- Max weight: 25 kg
- Max tool diameter: 112 mm
- Max tool length: 450 mm
Media
- Main electronic connection: 380 V / 50 Hz
- Power consumption: 50 kW
- Air pressure: 5 bar
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
