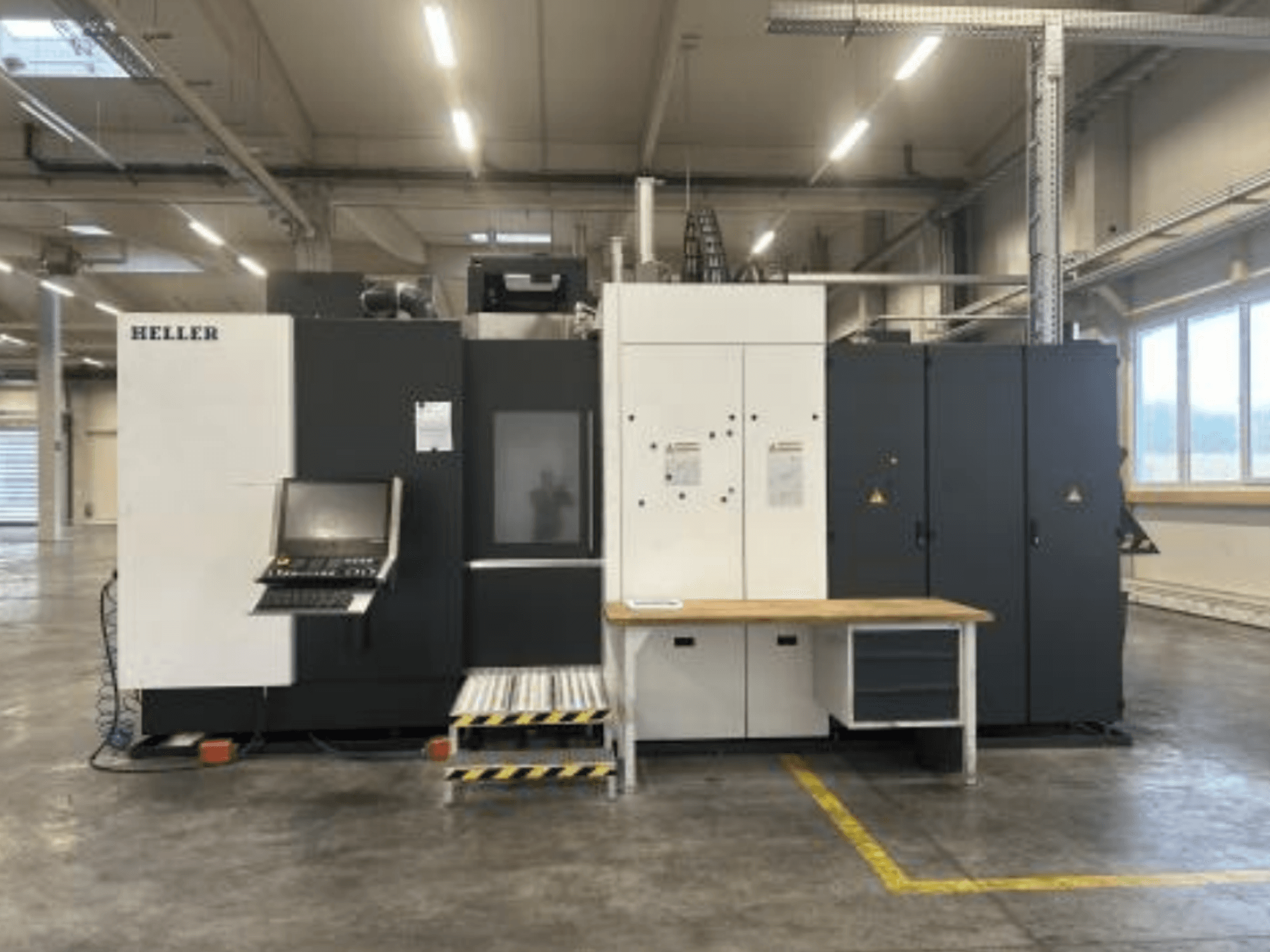

This 4-axis HELLER H5000 horizontal machining centre was manufactured in 2021. It features a working range of 800 mm in all axes and a maximum workpiece diameter of 900 mm. The machine includes a tool taper of HSK-A 100 and a tool magazine capacity of 100 slots. If you are looking to get high-quality machining capabilities, consider the HELLER H5000 machine we have for sale. Contact us for further details.
Overview
- brand: HELLER
- year: 2021
- MODEL: H5000
- production hours: 15000
- application type: Milling
- Location: Austria
- machine type: Horizontal Machining Centre
- control unit brand: SIEMENS
Technical Information - HELLER H5000
Control Unit
- Control Brand: SIEMENS
- Control Model: SINUMERIK 840D sl
Movement
- Number of Axes: 4
- X-axis Travel: 800 mm
- Y-axis Travel: 800 mm
- Z-axis Travel: 800 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: HSK 100
- Tool Stations: 100
Additional Information
- Machine Count: 2 units
- Control Unit: Siemens SINUMERIK 840D solution line with 24" Multitouch Main Control Panel and HELLER Operation Interface
- Working Range (X/Y/Z Axes): 800 / 800 / 800 mm
- Drive Package: POWER Package (Standard Drive in X/Y/Z)
- Rapid Traverse (X/Y/Z Axes): 50 m/min
- Acceleration (X/Y/Z Axes): 5 m/s²
- Feed Force X- and Y-Axis (ED S3 -40%): 15,000 N
- Feed Force Z-Axis (ED S3 -40%): 20,000 N
- Feed Axis Servomotors: Incremental Encoders
- Linear Axis Positioning Tolerance (Tp): 0.005 mm
- Working Unit: PC 100 i Power Cutting Unit (10,000 rpm, 45 kW, 360 Nm)
- Tool Taper: HSK-A 100 according to DIN 69 893
- Tool Magazine: 100 Slots, Chain Type (HSK-A 100) with Comfort Operator Terminal at Tool Setup Station
- Tool Breakage Control: Fast Drill Breakage Control
- Collision Monitoring: Damage Minimization Monitoring System
- NC Rotary Table (B-Axis): 360,000 x 0.001 deg Indexing, 25 rpm, 8 arcsec Accuracy, 12,000 Nm Max. Tangential Moment, 18,000 Nm Max. Tilting Moment
- Plane Transformation: CYCLE 800
- Workpiece Setup Station: Manually Rotatable 4 x 90 deg
- Workpiece Clamping Interface: 5-way Media Interface, Hydraulic Pressure 200 bar Proportional Technology
- Pallets: 2 Special Pallets in Basic Machine (HELLER Drawing AP.205705) with DIN Hole Pattern
- Pallet Dimensions: 630 x 630 mm
- Max. Workpiece Diameter: 900 mm
- Max. Workpiece Height: 1,000 mm
- Max. Clamping Load (Pallet 1): 1,000 kg (single-sided) / 1,400 kg (double-sided)
- Pallet Change Time: 13 s (without hydraulic clamping) / 13.5 s (with hydraulic clamping)
- Coolant & Chip Conveyor: Scraper Belt Conveyor for Wet Machining
- Cooling Systems: Precision Water-Air Chiller Unit (Compressor) for Direct Drives of A- and B-Axes, Spindle, and Control Cabinet; Coolant Temperature Control Unit
- Mist Extraction: Emulsion Extraction System
- Electrical Connection: 3~ 400 V / 50 Hz, Nominal Current 65 A, Short Circuit Rating 9 kA
- Total Connected Power: approx. 37 kVA (Machine) + approx. 14 kVA (VRF Coolant Unit)
- Compressed Air Supply Pressure: 5 - 6 bar
- Permissible Ambient Temperature: 10 - 45 °C
- Material Processed: Aluminum (exclusively)
- Operating Hours: approx. 12,000–15,000 hours (pending confirmation)
- Operational Status: Currently installed/in place and powered on
Optional Machine Equipment:
- Special Mount: Multi-Spindle Heads (HELLER Drawing 00.882914 MAGNA)
- Tool Measurement: RENISHAW Radio Touch Probe RMP 60 with Receiver & HELLER Measuring Cycles
- Coolant Filtration Unit: Vacuum Rotary Filter KNOLL VRF 250 with 50 bar High-Pressure Internal Coolant Supply (IKZ), Working Area Flushing, 1,200 L Tank Capacity
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
** The default scope of delivery includes the machine only. Accessories and peripheral equipment will be confirmed through binding agreements during the purchasing process.
