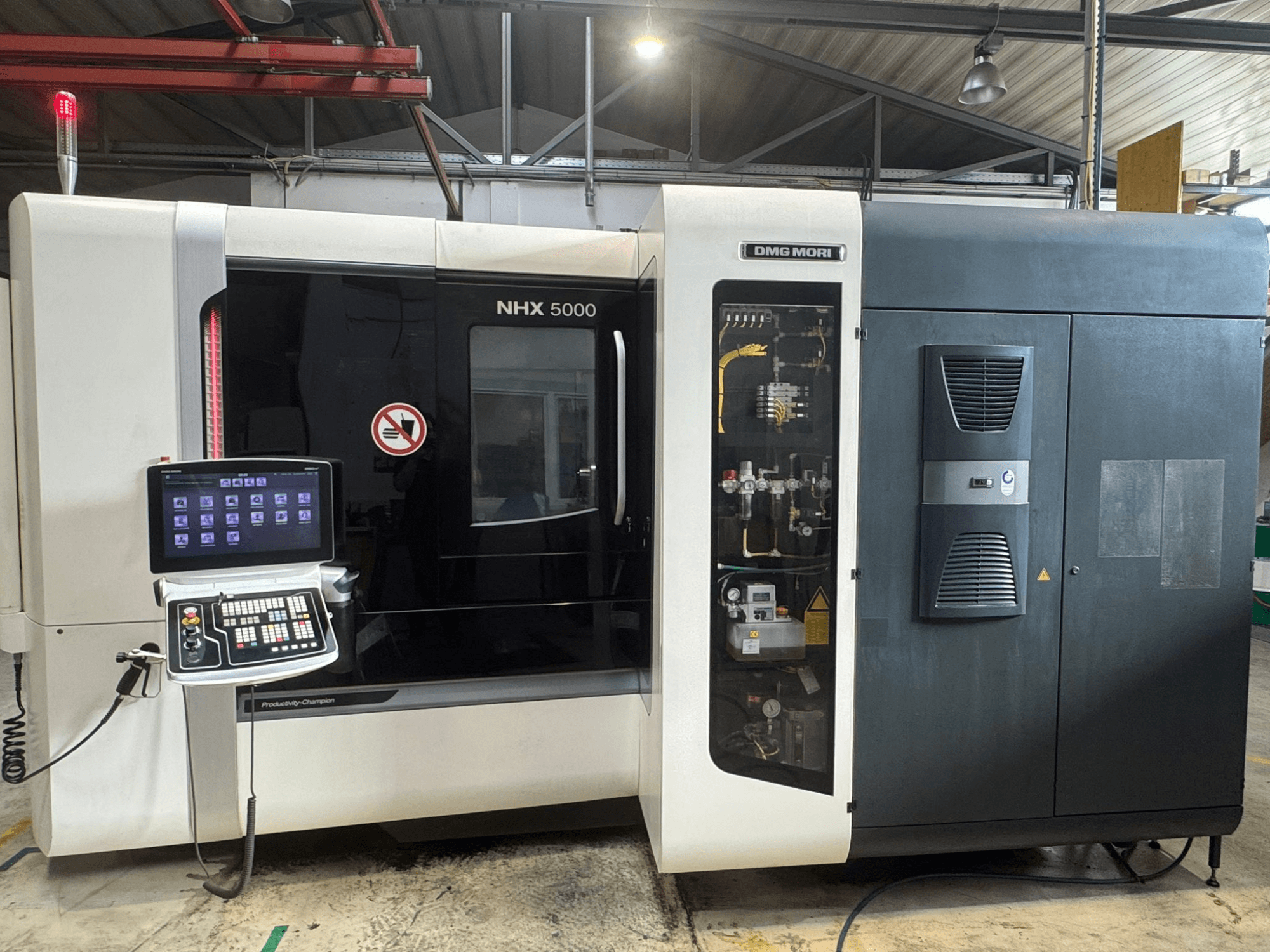

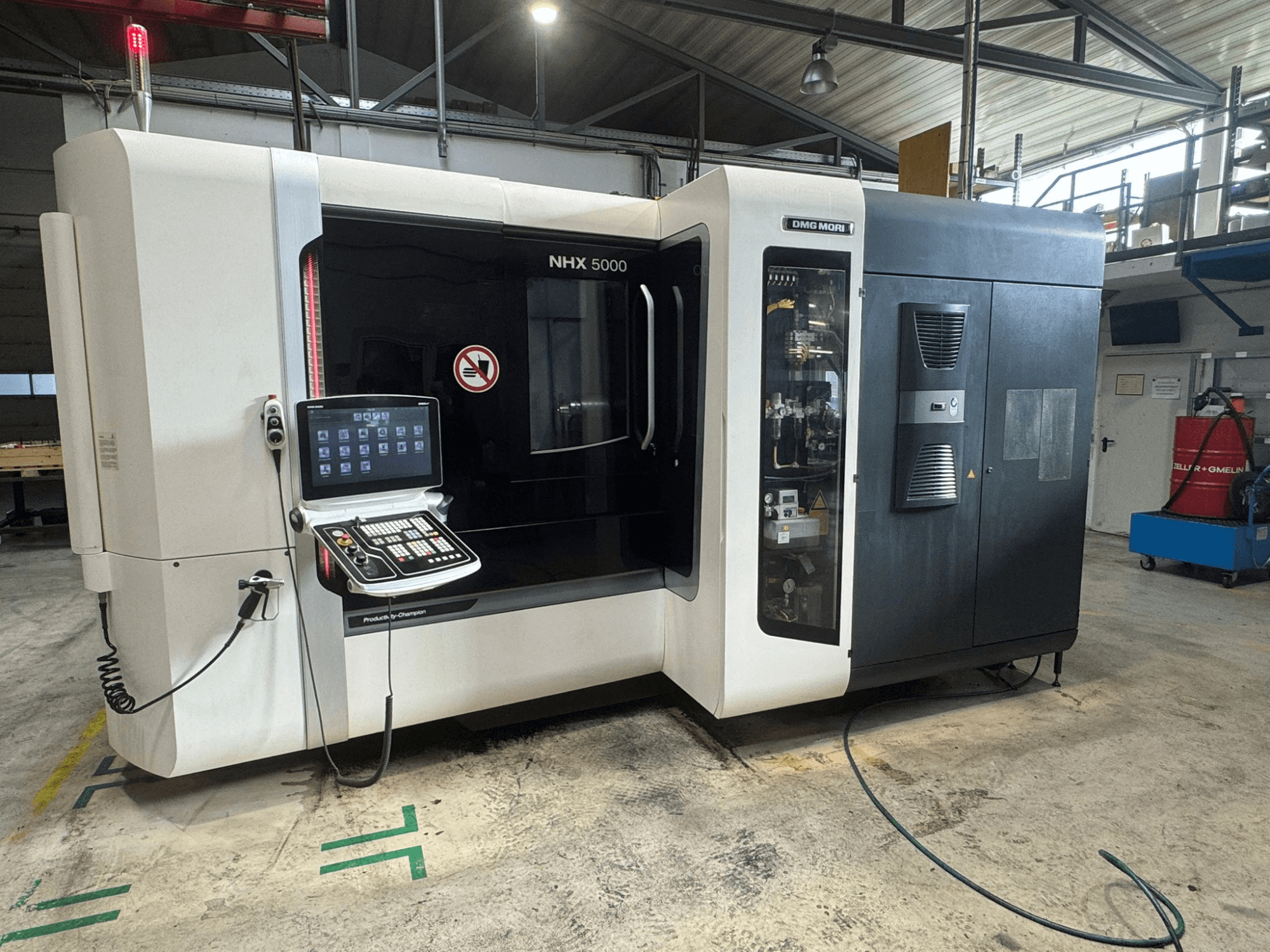

DMG MORI - NHX 5000AT-MIL-DMG-2017-00001

• Spindle torque: 111 Nm (continuous 85 Nm)

• Tool capacity: 40 tools (optional magazine 60 tools)

• Rapid traverse (X/Y/Z): 60 m/min

• Acceleration (X/Y/Z): 1G

• Pallet size: 500 x 500 mm

• Number of pallets: 2

• Automatic rotary pallet changer: 2 stations

• NC table B axis: direct drive, indexing 0.001°, max speed 100 rpm

• Maximum pallet load: standard 500 kg (optional 700 kg)

• Direct position measuring system; Linear scale standard

• Control system: CELOS Siemens 840D sl with 21.5" ERGOline multi-touch display

• Electronic handwheel: Siemens

• Coolant through spindle preparation up to 70 bar

• Renishaw probe OMP60

• Tool breakage detection system

• Machine status signal lamp

• Water-glycol spindle cooling unit

• Application Tuning Cycle (ATC)

• Machine bed: 3-point support

• Power connection: L1 L2 L3 N PE

• Connected load: 46 kVA

• Maximum input current: 67 A

• Fuse protection: 125 A

• Short circuit current: 1.25 kA

• Maximum supply voltage: 4.0 kV

• Supply voltage: 400 V ±10 %

• Frequency: 50 Hz

• Control voltage: AC 230 V / DC 24 V

• Operating time: 27,715 h

• Spindle hours: 15,208 h

Additional equipment

• Knoll KF110/700

• Knoll Flow Monitor

• High-pressure coolant system

• 2x clamping towers (250 x 250 x 650 mm) TRIAG incl. accessories

• 95x tool holders HSK63 (various clamping devices)
