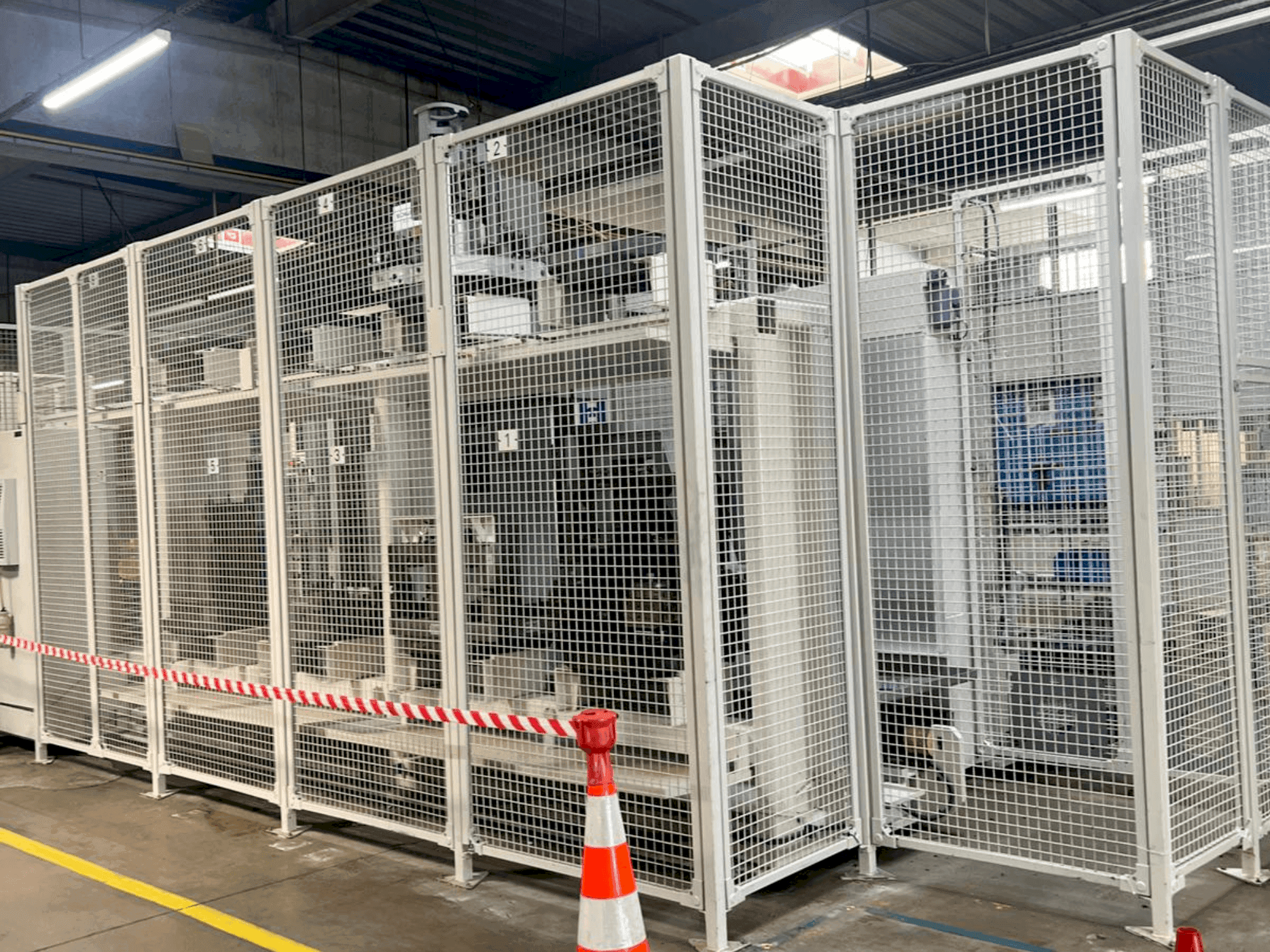

Front view of HELLER MCH 250  machine

HELLER - MCH 250DE-MIL-HEL-2006-00003

92,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 4-axis HELLER MCH 250 horizontal machining centre was manufactured in 2006. It features a robust 43 kW drive power with speeds up to 6000 RPM and a rapid traverse speed of 60,000 mm/min. The machine includes a chain magazine with a capacity of up to 100 tools and supports a maximum tool weight of 25 daN. If you are looking to get high-quality machining capabilities, consider the HELLER MCH 250 machine we have for sale. Contact us for more information.

Overview

  • brand: HELLER
  • year: 2006
  • MODEL: MCH 250
  • application type: Milling
  • Location: Germany
  • machine type: Horizontal Machining Centre
  • availability: Immediately
  • control unit brand: SIEMENS

Technical Information - HELLER MCH 250

General Data

  • Machine weight: 19000 kg

Control Unit

  • Brand: SIEMENS
  • Model: Siemens SINUMERIK 840 D

Main drive

  • Spindle speed range: 45-6000 RPM 1/MIN
  • Spindle motor power: 43 kW
  • Number of axis: 4

Movement

  • X-AXIS Movement: 800 mm
  • X-AXIS Rapid traverse: 60000 mm/min
  • Y-AXIS Movement: 800 mm
  • Y-AXIS Rapid traverse: 60000 mm/min
  • Z-AXIS Movement: 800 mm
  • Z-AXIS Rapid traverse: 60000 mm/min

Tools

  • Max weight: 25 daN KG
  • Max tool diameter: 228 mm
  • Max tool length: 600 mm
  • Type of tool holder: SK/HSK 50/A100

Media

  • Air pressure: 6 bar

    Additional Equipment

    • - Magazine type: Chain magazine
    • - Magazine capacity: 50 to 100 tools (optional)
    • - Rotary Table: Rotary Axis (high precision option) Division: 360000 x 0.001° angles // Indexing accuracy: 10 seconds // Swivel times for 45°/180°: 0.9 s / 1.8 s
    • - Coolant tank (basic): Approx. 1000 liters
    • - Coolant pump flow rate at 3 bar: 200 liters/min
    • - Coolant pump flow rate at 12 bar: 40 liters/min
    • - Coolant tank (extended): Approx. 1500 liters
    • - Coolant pump flow rate (extended) at 3 bar: 210 liters/min
    • - Coolant pump flow rate at 50 bar: 28 liters/min
    • - Coolant pump flow rate at 70 bar: 22 liters/min

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Hollow shaft unit (option) drive power/torque [max. ]: 72 kw / 460 nm // reinforced gearbox unit [max. ]: 60 kw / 1145 nm
        • - Traverse speed (x, y, z): 50000 mm/min
        • - Acceleration (dynamic package): 4. 0 m/s² in x, y, and z // acceleration: 7. 0 m/s²
        • - Maximum permissible clamping weight (centered): 800 dan
        • - Division: 360 x 1° angles
        • - Indexing accuracy: 6 seconds
        • - Swivel times for 45°/180°: 2. 7 s / 3. 5 s
        • - Maximum allowable tool moment at gripper: 2200 ncm
        • - Chip-to-chip time: 4. 1 s to 5. 1 s
        • - Direct, absolute linear scales with highest resolution in x, y, and z
      • Qualitative Machine Benefits:
        • - Installation data
        • - Machine weight: approx. 19,000 dan
        • - Total power requirement (basic): approx. 79 kva
        • - Power supply: 400 v / 50 hz
        • - Disc blowing system: yes
        • - Work area flushing: yes

      Extra information

      • - Machine still under power / linear feeder from Schuler and 8 pallets are included

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
