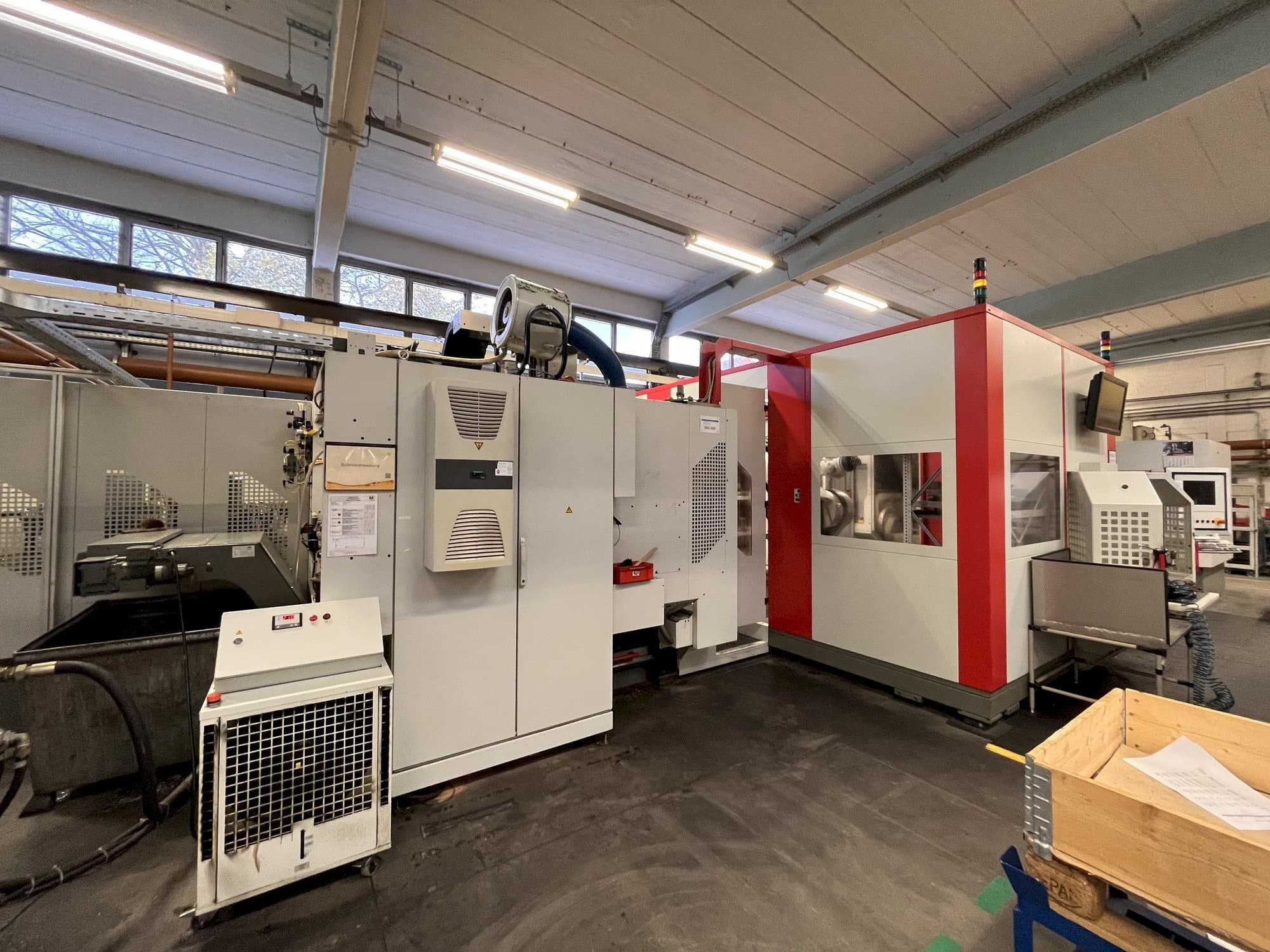

Front view of HERMLE C 40 U  machine

HERMLE C 40 U

HERMLE - C 40 U

2009

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HERMLE C 40 U Vertical Machining Center was manufactured in the year 2009 and has 22400 hours. It is equipped with a HEIDENHAIN iTNC 530 control unit and has 5 axis. The machine has a spindle speed of 18000 rpm. 2 units are available.

Overview

  • brand: HERMLE
  • year: 2009
  • MODEL: C 40 U
  • production hours: 22400
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Sold
  • control unit brand: Heidenhain
  • GINDUMAC ID: DE-MIL-HER-2009-00001

Technical Information

General Data

  • Measurements width: 3154 mm
  • Measurements depth: 2354 mm
  • Measurements height: 2892 MM
  • Machine weight: 10500 kg

Control Unit

  • Brand: Heidenhain
  • Model: iTNC 530

Main drive

  • Spindle speed range: 18000 1/MIN
  • Tool taper: HSK A63
  • Number of axis: 5

Movement

  • X-AXIS Movement: 850 mm
  • Y-AXIS Movement: 700 mm
  • Z-AXIS Movement: 500 mm
  • A-AXIS Movement: +/- 110 º MM
  • B-AXIS Movement: 360° MM

Tools

  • Max weight: 8 kg
  • Max tool diameter: 300 mm
  • Max tool length: 125 mm

    Additional Equipment

    • - come with Renishaw touch-probe
    • - 1 pallet
    • - Chip conveyor is included
    • - The inner coolant high pressure pump is not included
    • - The robot is not included in the price

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Feed rate: 45000 mm/min
        • - Measuring probe: renishaw omp 40-2l
        • - Scraper conveyor without ikz.
        • - Blow-off device
        • - Blowing outlet through the center of the spindle
        • - Manual cabin roof
        • - Automatic cabin door
        • - Polycarbonate safety windows
        • - Temperature compensation
        • - Electric manual control module itnc, blum roll breakage/measurement a3
      • Qualitative Machine Benefits:
        • - Bed flushing, air purge for scales
        • - Status light
        • - Commissioning/magazine
        • - Tool magazine: 157 slots
        • - 6 fold feed through

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
