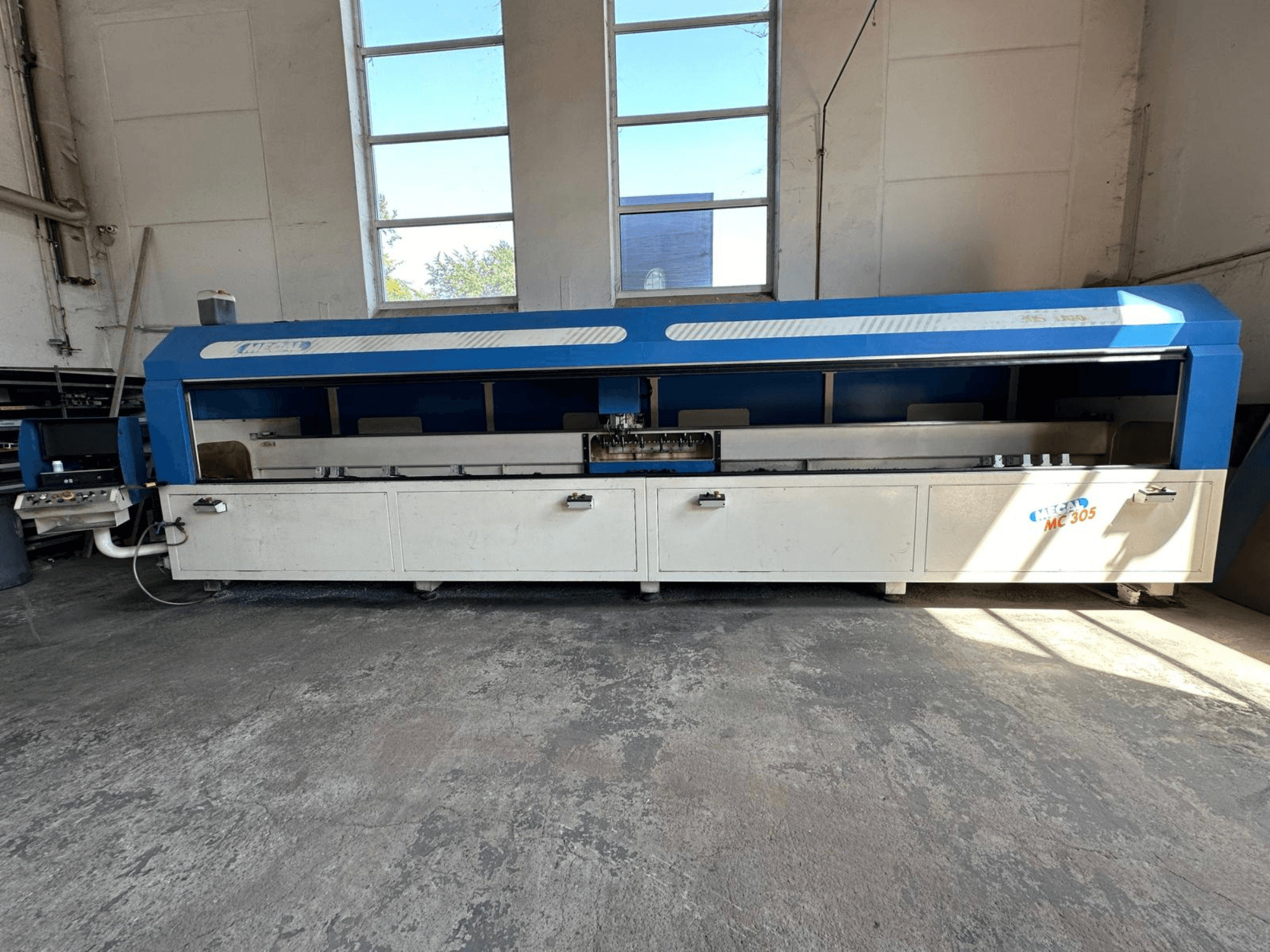

This 4-axis MECAL MC 305 vertical machining centre was manufactured in 2008. It features an impressive X-axis travel of approximately 7200 mm, Y-axis travel of 400 mm, and Z-axis travel of 400 mm. The machine is equipped with a powerful 5.5 kW electrospindle and a maximum spindle speed of 18,000 rpm. If you are looking to get high-quality machining capabilities, consider the MECAL MC 305 machine we have for sale. Contact us for further details.
Overview
- brand: MECAL
- year: 2008
- MODEL: MC 305
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
Technical Information - MECAL MC 305
Movement
- Number of Axes: 4
- X-axis Travel: 7200 mm
- Y-axis Travel: 400 mm
- Z-axis Travel: 400 mm
Technical Specification
- Max. Tool Weight: 3 kg
- Spindle Power: 5.5 kW
- Spindle Speed: 18000 RPM
- Taper Size: ISO 30
Additional Information
Control system: MMI CNC control
Operating system: Windows OEM software
Number of controlled axes: 4 (maximum configurable axes: 5)
C-axis rotation: 180° (-90° / +90°)
Drive system: Servo motors
Axis control: CNC controlled
Spindle type: Electrospindle
Tool magazine capacity: 11 positions
Maximum tool diameter: 200 mm
Maximum tool length: 150 mm
Maximum X-axis feed speed: 80 m/min
Maximum Y-axis feed speed: 60 m/min
Maximum Z-axis feed speed: 40 m/min
Voltage: 400 V (tolerance ±10%)
Frequency: 50/60 Hz
Total power consumption: approx. 7.2 kVA
Maximum current: approx. 18 A
Compressed air pressure requirement: approx. 6 bar
Machine structure: Steel machine frame
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
