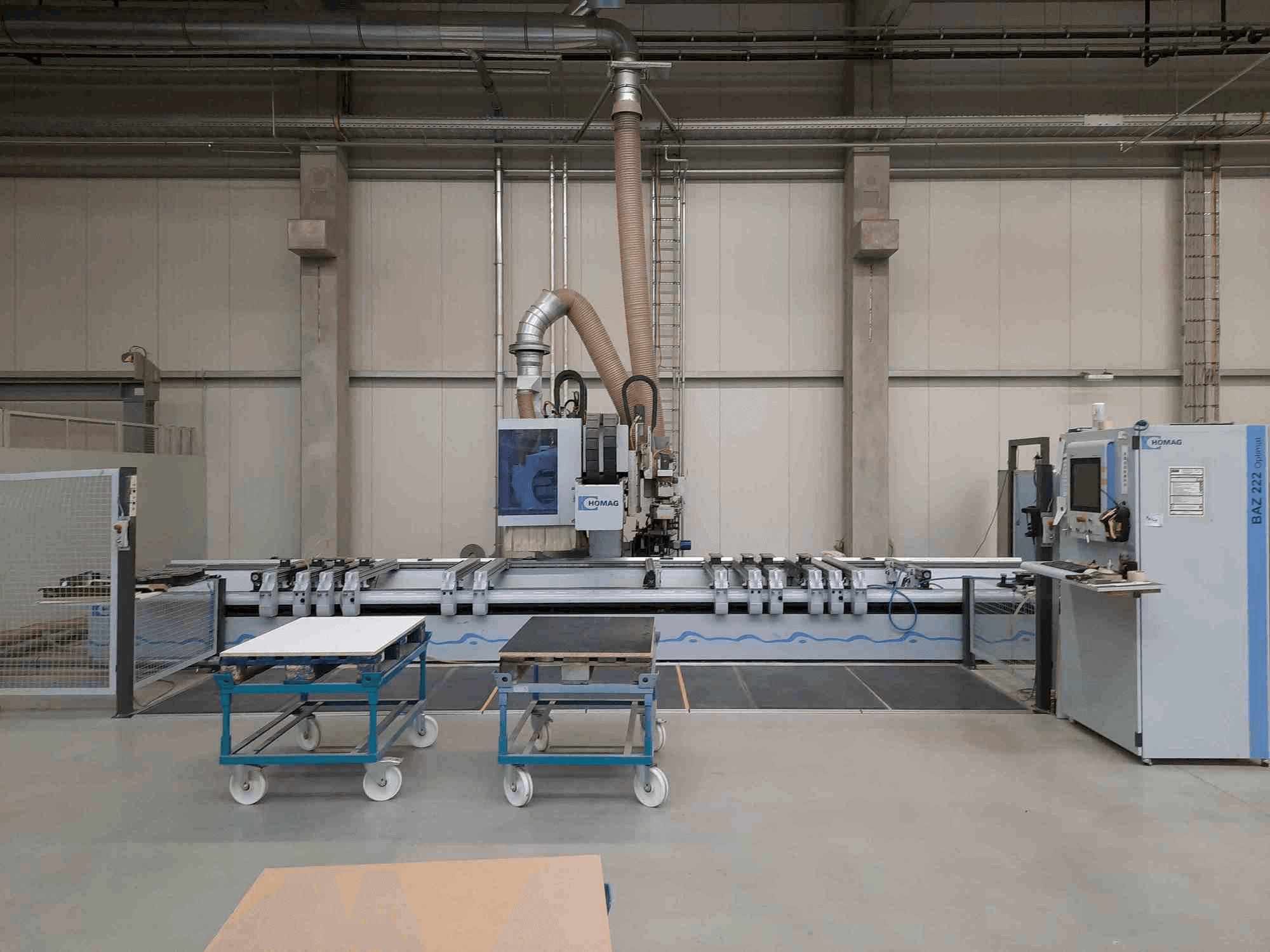

Front view of HOMAG OPTIMAT BAZ222/60/K  machine

HOMAG - OPTIMAT BAZ222/60/KDE-WOO-HOM-2010-00002

98,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

Click to chat on WhatsApp

This CNC processing centre was manufactured in 2010. It features a main spindle of 15 KW with HSK F63, an 18-fold plate changer, and a 30-spindle drilling head. Equipped with a POWER EDGE gluing unit for precise edge banding and a FLEX-5 unit for enhanced versatility. Ideal for handling large workpieces with a maximum thickness of 300 mm. For more information about this woodworking processing centre, please reach out to us.


  • brand: HOMAG
  • year: 2010
  • application type: Wood Working
  • Location: Germany
  • machine type: Wood
  • availability: Immediately
  • control unit brand: HOMAG

Technical Information - HOMAG OPTIMAT BAZ222/60/K

Control Unit

  • Brand: HOMAG
  • Model: OPTIMAT BAZ222/60/K

    Additional Equipment

    • - Gluing unit with FLEX-5 unit
    • - Main spindle 15 KW, HSK F63
    • - C-Axis with unit interface
    • - Plate changer 18-fold D=130
    • - Drilling head 30 spindles: V20 / H10/ S360° "MPU"
    • - Groove saw: blade-Ø: 200 mm
    • - Adaptive milling spindle 6 KW for drilling head
    • - Gluing unit POWER EDGE for 360°-gluing with butt joint
    • - Flush milling unit for tool changer

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Combi-flush milling-scraping unit wd 100 mm
        • - Combi-end trimming and copying unit, traced
        • - Lock recess milling unit 2 spindles d=16/20
        • - Chip transport belt for b200/52-72
        • - Led-setup support console 1300-1600 mm
        • - Versatile processing capabilities including milling, drilling, gluing, and edge banding
        • - High-power main spindle and adaptive milling spindle enhance machining efficiency
        • - Comprehensive tooling options with an 18-fold plate changer and specialized units for specific tasks
      • Qualitative Machine Benefits:
        • - Precision in machining with advanced cnc control, ensuring high-quality finishes
        • - Flexibility in handling various workpiece sizes and complex operations with the flex-5 unit and power edge gluing system

      Extra information

      • - Workpiece dimensions:Length max: All units: single field 6,000mm, pendular process 2,375mm. Width max: Frontal all units 1150mm, at milling with tool-diam. 25 mm: 1220mm, at edge banding: 1220mm. Thickness max: 300 mm (inclusive chuck at use as top miller), up to max. 60 mm with standard clamping. Edge material handling capabilities with a height of 105 mm for gluing unit BAZ222/322, allowing edging of workpieces up to 100 mm thickness.

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
