HOMAG - V BMG 311/42/F/K VentureCZ-CNC-HOM-2015-00001

Name: HOMAG V BMG 311/42/F/K Venture
Brand: HOMAG
SKU: CZ-CNC-HOM-2015-00001
Price: 52000 EUR
Availability: InStock

52,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Wood Working
➤ Used HOMAG V BMG 311/42/F/K Venture | For Sale

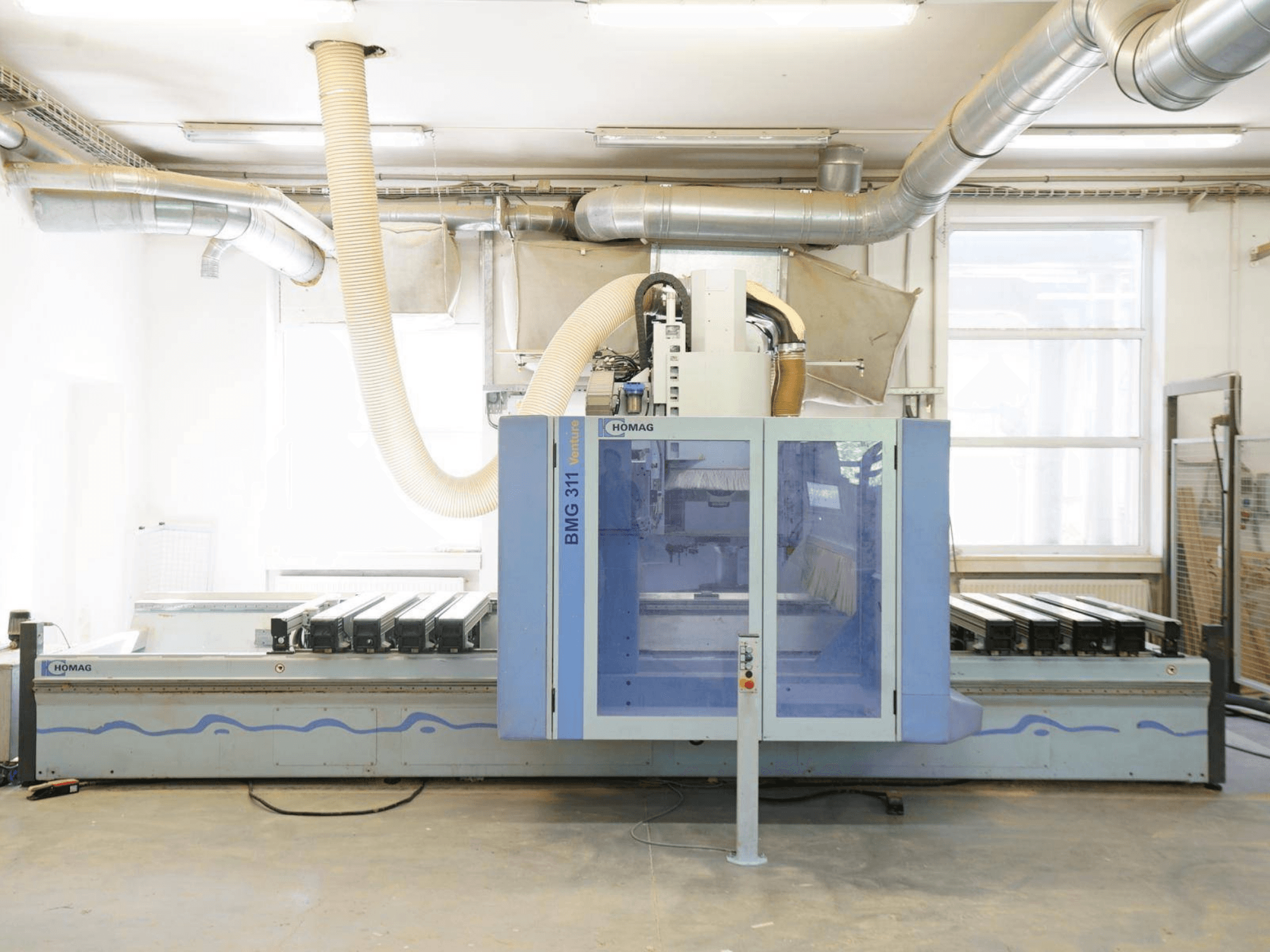

This 5-axis HOMAG V BMG 311/42/F/K Venture was manufactured in 2015. It features a working dimension of 4,200 mm in X, 1,550 mm in Y, and 270 mm in Z. The machine is equipped with a powerful 10 kW main motor and a maximum rotation speed of 24,000 rpm. If you are looking to get high-quality CNC wood machining capabilities, consider the HOMAG V BMG 311/42/F/K Venture machine we have for sale. Contact us for further details.

Overview

brand: HOMAG
year: 2015
MODEL: V BMG 311/42/F/K Venture
application type: CNC Wood Machining
Location: Czech Republic
machine type: CNC Wood Machining Centre

Technical Information - HOMAG V BMG 311/42/F/K Venture

Movement

Number of Axes: 5
X-axis Travel: 4200 mm
Y-axis Travel: 1550 mm
Z-axis Travel: 270 mm

Technical Specification

Spindle Power: 10 kW
Spindle Speed: 24000 RPM

Additional Information

Tool clamping: HSK-F63
Tool changer: 18 positions
Vertical drilling spindles: 17
Horizontal drilling spindles: X = 2, Y = 2
Groove saw: 90° turnable
Machine type: Gantry
Machine table: Pod and rail
Number of consoles: 6
Positioning aid
Crosshair laser
Vacuum pumps: 2 units, total capacity 180 m³/h
Safety device: Bumper
Stops: Two rows of stops
Workpiece support aids: Stop for top layer protrusion
Control: HOMAG powerTouch
Software: HOMAG WOODWOP 7.0
Declaration of CE-conformity

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
