➤ Used Hurco VM 10 i Plus For Sale | gindumac.com

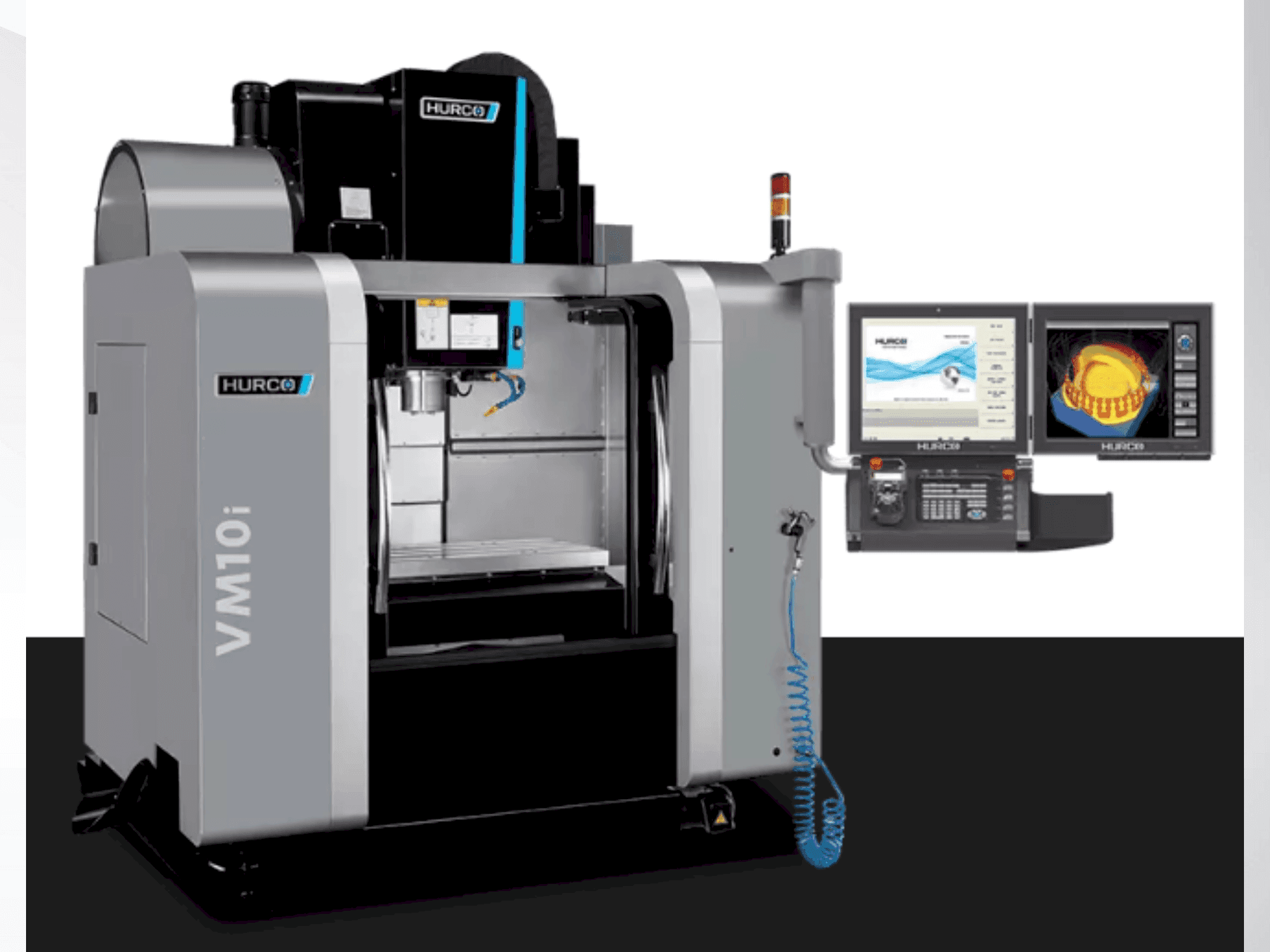

This 3-axis Hurco VM 10 i Plus was manufactured in 2018. It features a control system by HURCO, a spindle speed range up to 12,000 rpm, and a rapid traverse speed of 24 m/min in X/Y/Z. The machine can handle a table load of 682kg and offers 20 tool positions. Ideal for precision machining, the Hurco VM 10 i Plus vertical machining center represents a robust addition to any workshop. Contact us for further details regarding this vertical machining center.

Overview

brand: Hurco
year: 2018
MODEL: VM 10 i Plus
production hours: 1602
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HURCO

Technical Information - Hurco VM 10 i Plus

General Data

Measurements width: 1748 MM
Measurements depth: 1806 MM
Measurements height: 2530 MM
Machine weight: 3050 KG

Control Unit

Brand: HURCO

Main drive

Spindle speed range: 0-12,000 1/MIN
Tool taper: SK A 40
Number of axis: 3

Movement

X-AXIS Movement: 660 mm
X-AXIS Rapid traverse: 24 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 24 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 24 m/min

Table

Outer length: 762 mm
Outer width: 406 mm
Min distance between vertical spindle and table: 102 mm
Max distance between vertical spindle and table: 610 mm
Table load: 682 kg

Tools

Slots in storage: 20
Max weight: 7 kg
Max tool length: 250 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Maximum torque: 61 nm
- - Cooling water tank capacity: 62 litres
- - Positioning travel: 0. 010mm
- - Repeatable travel: 0. 005mm

Extra information

- MACHINE STILL UNDER POWER

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
