➤ Used Hurco VM10i For Sale | gindumac.com

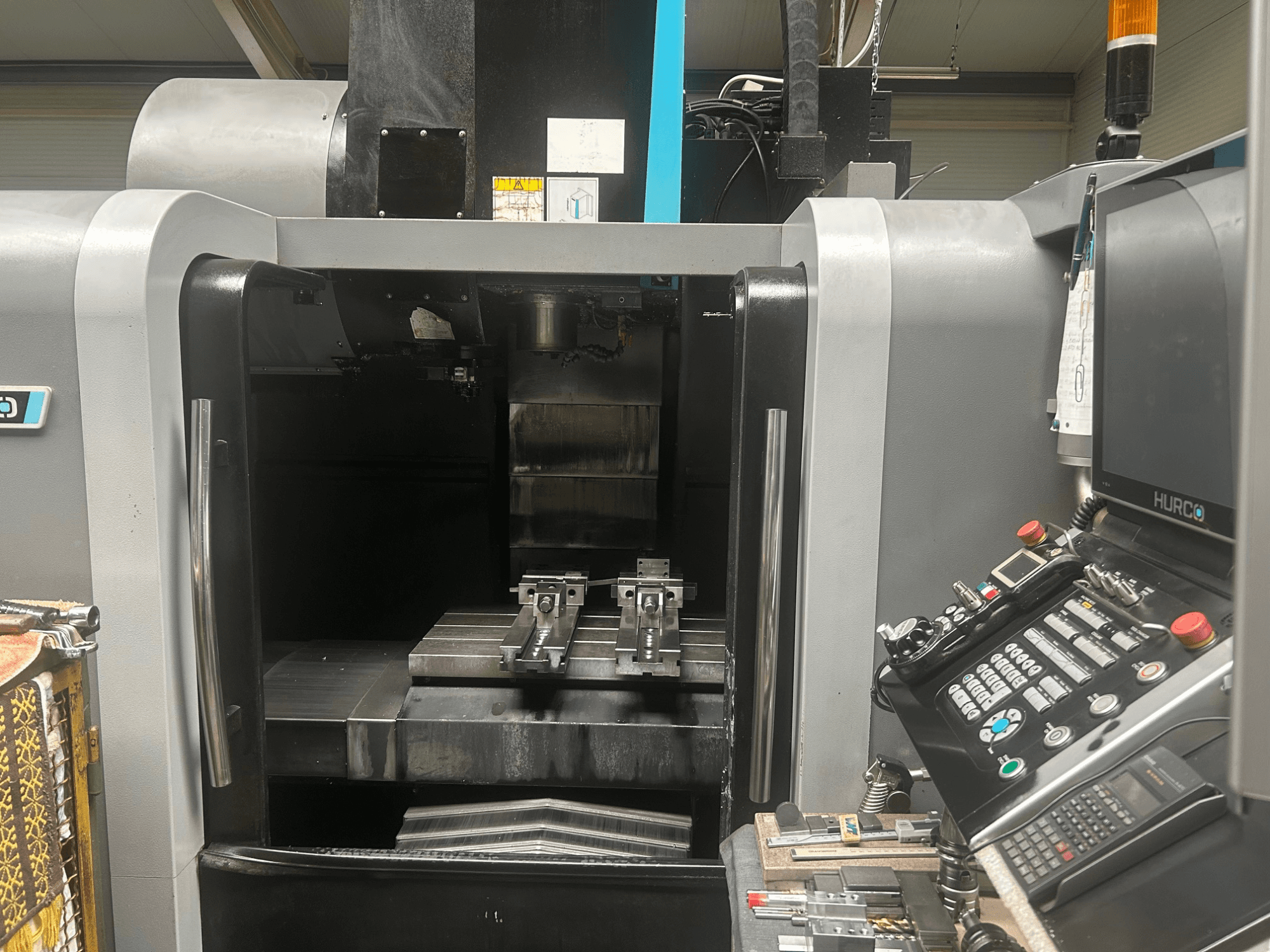

This 3-axis Hurco VM10i was manufactured in 2016. It features a robust table size of 760 × 406 mm, capable of handling a maximum load of 500 kg. The spindle can reach speeds up to 10,000 rpm, supported by a 7.5 kW motor. It includes an automatic tool changer with a capacity of 20 tools. Ideal for precision machining with rapid traverse rates of 36 m/min. Contact us for more information about this machine.

Overview

brand: Hurco
year: 2016
MODEL: VM10i
application type: Milling
Location: Hungary
machine type: Vertical Machining Centre
Available from: 14/11/2025

Technical Information - Hurco VM10i

General Data

Measurements width: 2200 mm
Measurements depth: 2100 mm
Measurements height: 2600 mm
Machine weight: 3400 kg

Main drive

Spindle speed range: 10000 1/MIN
Tool taper: BT40
Number of axis: 3

Movement

X-AXIS Movement: 660 mm
X-AXIS Rapid traverse: 36 m/min
Y-AXIS Movement: 406 mm
Y-AXIS Rapid traverse: 36 m/min
Z-AXIS Movement: 508 mm
Z-AXIS Rapid traverse: 36 m/min

Table

TSlots size: 14 mm
Number of tslots: 3
Table load: 500 kg

Tools

Number of index: 20
Max weight: 7 kg
Max tool diameter: 80 mm
Max tool length: 250 mm

Additional Information

Table: 760 × 406 mm
Through-spindle coolant optional
Feed rates: cutting up to 20 m/min
Tool changer: Automatic carousel
Accuracy: Positioning ±0.005 mm; repeatability ±0.003 mm
Control: Hurco WinMax CNC; 19" touchscreen, dual-screen interface

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
