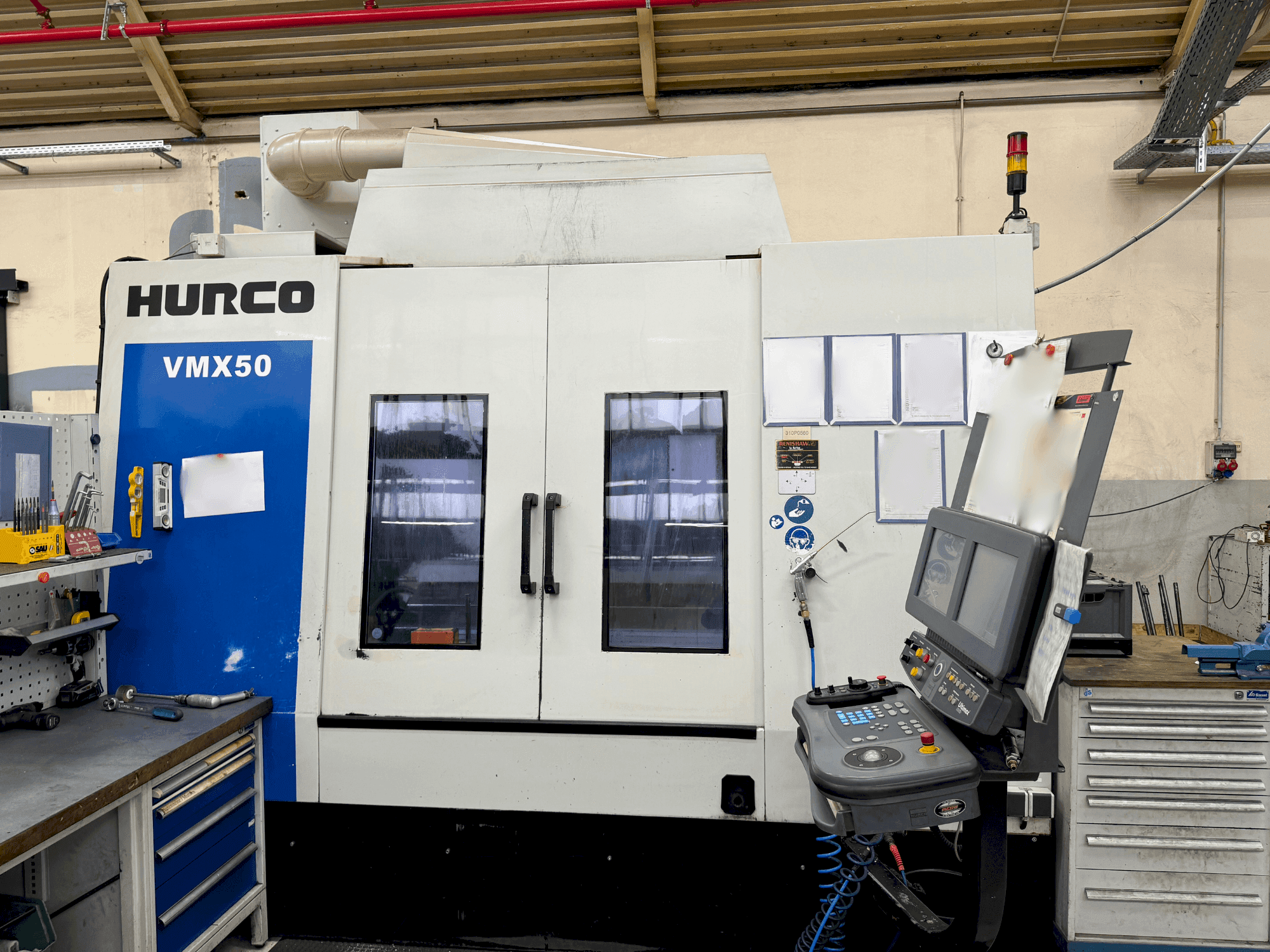

Front view of Hurco VMX 50/40T  machine

Hurco VMX 50/40T

Hurco - VMX 50/40T

2005

20,000 €

gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This HURCO VMX 50/40T Vertical Machining Centre was manufactured in 2005 in Taiwan. It comes with a 10,000 rpm spindle (SK40 tool taper), 3 axes (X = 1270 mm / Y = 660 mm / Z = 610 mm) and automatic tool changer with 24 slots. In addition the scope of delivery includes a chip conveyor, an oil mist separator system (ME-FI from W+W), a high-pressure cooling system for coolant supply through the spindle, an integrated hydraulic tool clamping system and the feature of workpiece position detection and tool length calibration with probe. In total it has operated 44,358 hours and is still under production. As extra option upon request and for additional charge the machine can be equipped with a KITAGAWA TT 251 Tilting NC Rotary Table for 5-axis simultaneous operations (4th axis NC rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software & 5-axis simultaneous in conjunction with the ISO code software and corresponding programming station). Contact us at any time for further details!

Overview

  • brand: Hurco
  • year: 2005
  • MODEL: VMX 50/40T
  • production hours: 44358
  • application type: Milling
  • Location: Germany
  • machine type: Machining centers (vertical)
  • availability: Immediately
  • control unit brand: HURCO
  • GINDUMAC ID: DE-MIL-HUR-2005-00002

Technical Information

General Data

  • Measurements width: 3245 MM
  • Measurements depth: 2250 MM
  • Measurements height: 2460 MM
  • Machine weight: 9400 kg

Control Unit

  • Brand: HURCO
  • Model: ULTIMAX 4

Main drive

  • Spindle speed range: 10000 1/MIN
  • Tool taper: SK 40
  • Number of axis: 3 (option for 5)

Movement

  • X-AXIS Movement: 1270 MM
  • Y-AXIS Movement: 660 MM
  • Z-AXIS Movement: 610 MM

Media

  • Oil water separator: Yes
  • Chip conveyor: Yes
  • Internal cooling: Yes

    Additional Equipment

    • - [UPON REQUEST for additional charge] KITAGAWA TT 251 (4th axis NC rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software)
    • - Chip Conveyor // ME-FI 1000 Oil mist separator from W+W (YOM 2014)
    • - Coolant system
    • - Chip splash guard cabin
    • - Flushing system to support chip removal
    • - Coolant filtration via pump suction filter
    • - Signal light for machine operating status
    • - Machine light
    • - Set of machine shoes
    • - Removable electronic handwheel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - [upon request for additional charge] 4th axis nc rotation axis, 5th axis tilting of the positioning axis in conjunction with the plain text software
        • - [upon request for additional charge] 5-axis simultaneous in conjunction with the iso code software and corresponding programming station (kitagawa tt 251)
        • - Pocket milling with islands
        • - Synchronous thread cutting (thread cutting without compensating chuck)
        • - Face plate diameter 250 mm
        • - Center height 225 mm
        • - Spindle passage 70 mm
      • Qualitative Machine Benefits:
        • - High-pressure cooling system for coolant supply through the spindle (cooling lubricant type emulsion, coolant pressure 20 bar)
        • - Integrated hydraulic tool clamping system
        • - Workpiece position detection and tool length calibration with probe

      Extra information

      • - Transport dimensions: 3245x2250x2460 mm // Space required for operation: 4400x4750x2950 mm // Machine manual on CD // 2 monochrome screens (text + graphics) // 2 software units (1 x plain text dialog programming on the machine + 1 x for ISO code programming by external programming device or CAD/CAM system via RS-232 C or V 24 interface) Pentium technology, 1.6 GB hard disk, 64 MB RAM, parallel and serial data interfaces, DOS-compatible 3.5" 1.44 MB drive // System-internal self-diagnosis, DOS directory structure, software version 2.xx

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
