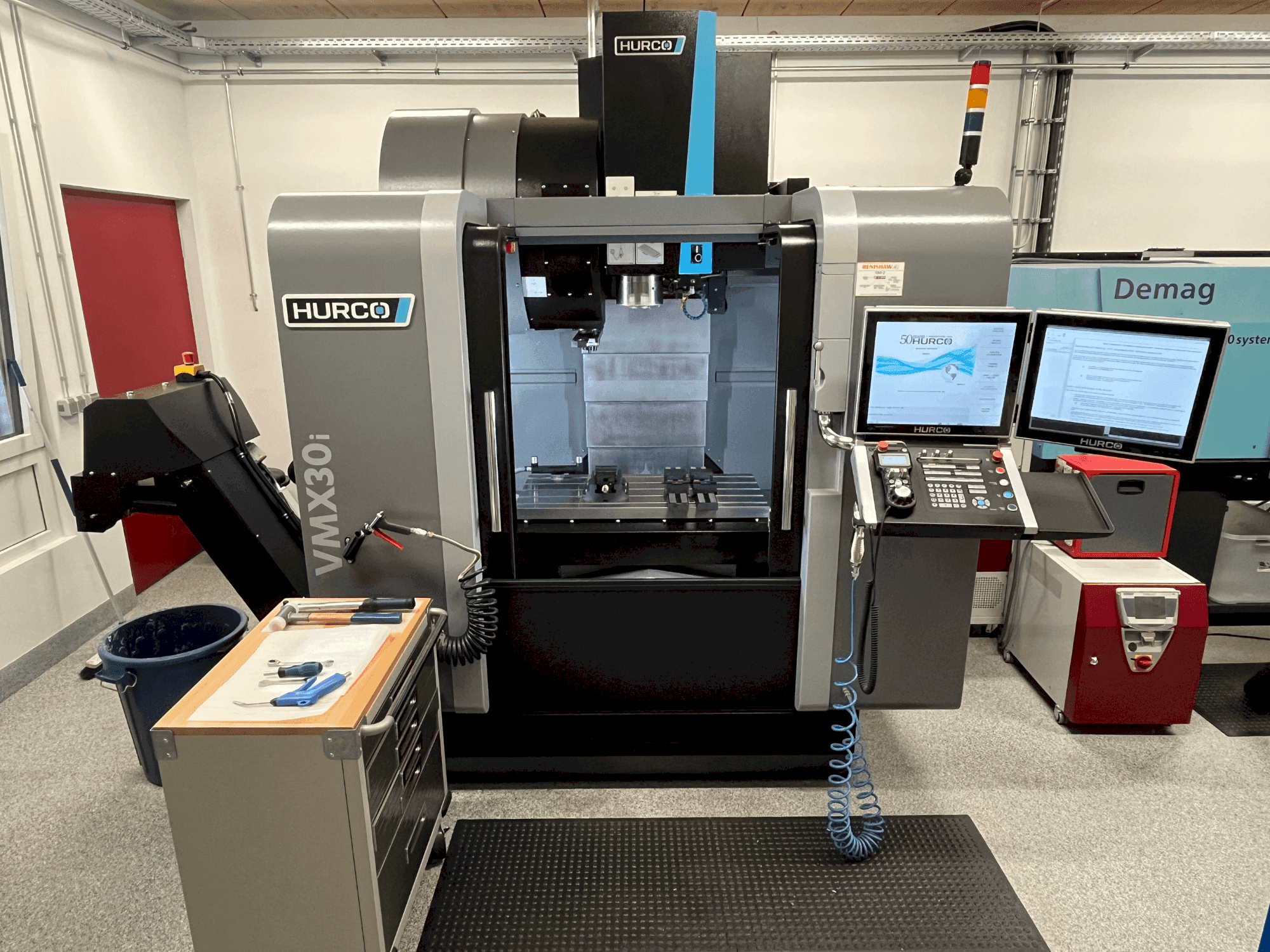

This 3-axis Hurco VMX30i vertical machining center was manufactured in 2019. It offers robust construction and precision engineering, ideal for a variety of machining tasks. Consider the opportunity to buy this Hurco VMX30i vertical machining center. Contact us for more information.
Overview
- brand: Hurco
- year: 2019
- MODEL: VMX30i
- production hours: 1129
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- availability: Immediately
- control unit brand: HURCO
Technical Information - Hurco VMX30i
Control Unit
- Brand: HURCO
- Model: MAX-5
Media
- Chip conveyor: Yes
Additional Equipment
- - 30 tool changer
- - Laser bridge
- - Accessories direct measurement
- - Clamping devices
- - Vice
- - Probe
- - 2 software units / (1 x plain text dialog programming on the machine + 1 x for ISO- / code programming by external programming device or CAD/CAM system)
- - Pentium technology, SSD (solid-state drive) storage medium, / 2 GB RAM, Ethernet interface, USB interface, system-internal self-diagnosis, WINDOWS platform
- - Chip splash guard cabin/Coolant system/Coolant spray gun/Flushing system to support chip removal/LED machine light in the work area
- - Signal light for machine operating status/Set of machine shoes/High-pressure cooling system for coolant supply through the spindle: /Cooling lubricant type Emulsion/Coolant pressure 20 bar/Integrated hydraulic tool clamping system
Additional Information
- Technical Machine Benefits:
- - On 1129 / spindle 213
- - Frequncy 50 hz / largest motor 9 kva 12 amp / full load 24 kva 35 amp / interrupt capacity 10000 amps / max temp. 35 / short circuit current 20 kan / rms symmetrical 400 volt
- - Max5 control unit with removable electronic handwheel / 2 x 19” lcd color screens (text + graphics) / network interface
- - Adaptipath/trochoidal milling for higher cutting performance, controlled infeed and residual material detection/simulation graphics/tool and material library/pocket milling with islands/synchronous thread cutting (thread cutting without compensating chuck)/isnc extended nc mode/spindle cooler
- - Workpiece position detection with probe and tool length measurement/calibration with laser: 007-4227-110/007-4227-09/workpiece touch probe: renishaw omp60/tool touch probe: renishaw laser nc4
- - X-axis movement: 762 mm / y-axis movement: 508 mm / z-axis movement: 610 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
