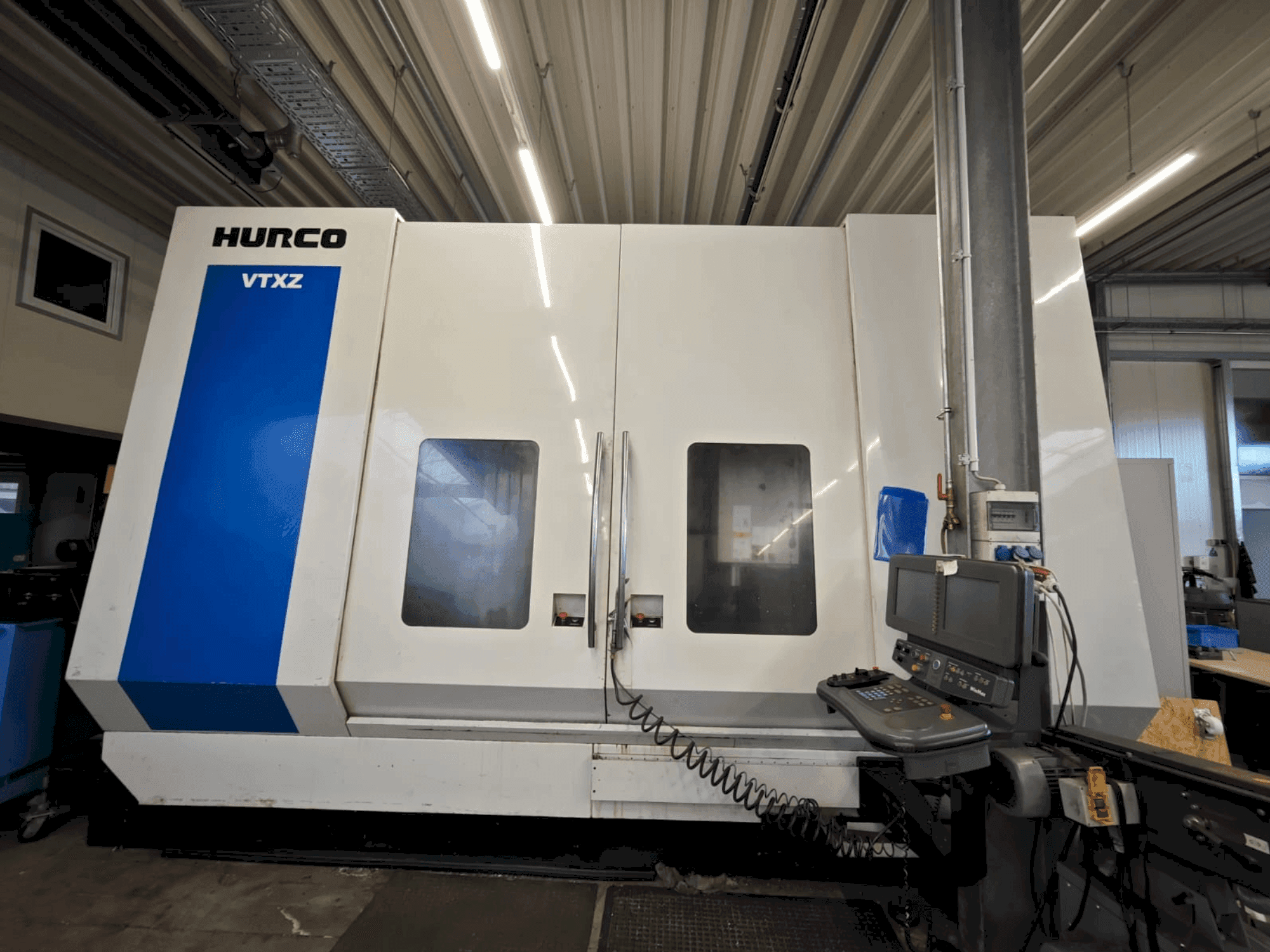

Hurco VTXZ

Photo Gallery

Hurco - VTXZDE-MIL-HUR-2008-00006

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hurco VTXZ Machining Center For Sale | gindumac.com

This 3-axis Hurco VTXZ vertical machining center was manufactured in 2008. It features a robust 18 kW spindle power, 8000 rpm max speed, and a 40-slot automatic tool changer. The machine offers a large travel range with 2032 mm on X, 660 mm on Y, and 610 mm on Z. It supports a table load of up to 2700 kg, ideal for heavy-duty machining. Consider the opportunity to buy this Hurco VTXZ vertical machining center. Contact us for more information.

Overview

brand: Hurco
year: 2008
MODEL: VTXZ
application type: Milling
Location: Germany
machine type: Vertical Machining Centre

Technical Information - Hurco VTXZ

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Travel distances (x/y/z) [mm]: 2032 (2 × 760) / 660 / 610 / working feed x/y/z [mm/min]: 15200 / rapid traverse x/y/z [m/min]: 35 / 35 / 35 / spindle nose – table [mm]: 125–735
- - Electrical: 48 kva / 69 a / 400 v / air: 6–8 bar / 150 l/min
- - Drive power [kw]: 18 / torque [nm]: 237 / max speed [min⁻¹]: 8000
- - Feed force x/y/z [n]: 32800 / 21000 / 23700
- - Table – clamping surface l × w [mm]: 2285 × 660 / table load (evenly distributed) [kg]: 2 × 1350
- - Tool changer: 40-fold / spindle taper (din 69871 a): sk 40 / clamping bolts: iso 7388/ii b / tool slots: 40 / max tool length [mm]: 300 / max tool weight [kg]: 10 / tool change time [s]: 4
- - Positioning accuracy p [mm]: 0. 02 (travel distance) / repeat accuracy p [mm]: 0. 01

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
