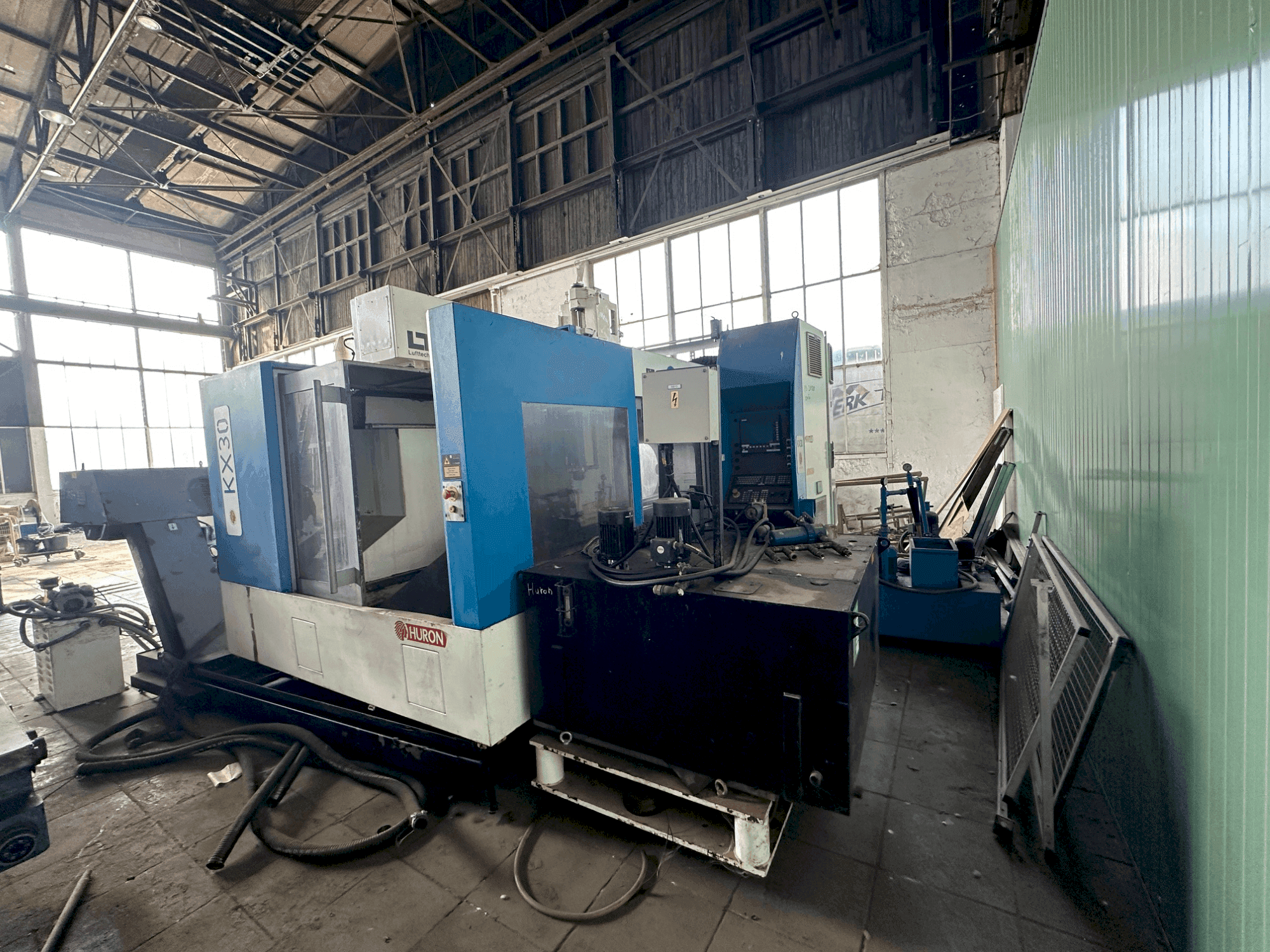

Front view of Huron KX30  machine

Huron - KX30DE-MIL-HUR-2001-00003

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This 3-axis Huron KX30 vertical machining centre was manufactured in 2001. It features a ribbed cast structure for high rigidity and excellent vibration damping during demanding cutting processes. It includes a high-speed spindle up to 42,000 RPM and a large table size of 2000 x 1000 mm, supporting loads up to 2.5 tons. Accessories include an IRODEX chip conveyor and a separate vacuum clamping table. Reach out for further details regarding this vertical machining centre.

Overview

  • brand: Huron
  • year: 2001
  • MODEL: KX30
  • application type: Milling
  • Location: Germany
  • machine type: Vertical Machining Centre
  • availability: Sold
  • control unit brand: SIEMENS

Technical Information - Huron KX30

General Data

  • Measurements width: 6420 mm
  • Measurements depth: 5770 mm
  • Measurements height: 3430 mm
  • Machine weight: 17000 kg

Control Unit

  • Brand: SIEMENS

Main drive

  • Spindle speed range: 42000 rpm 1/MIN
  • Number of axis: 3

Movement

  • X-AXIS Movement: 1800 mm
  • X-AXIS Rapid traverse: 30 m/min
  • Y-AXIS Movement: 1000 mm
  • Y-AXIS Rapid traverse: 30 m/min
  • Z-AXIS Movement: 550 mm
  • Z-AXIS Rapid traverse: 18 m/min

Table

  • Table load: 2500 kg

Tools

  • Max weight: 10 kg
  • Max tool diameter: 100 mm
  • Max tool length: 300 mm

    Additional Equipment

    • - LTA extraction unit
    • - Belt filter
    • - Cooling unit
    • - IRODEX chip conveyor
    • - Separate vacuum clamping table approx. 1500x1000 mm
    • - Refrigeration dryer DONALDSON SD0080AP-CV, with pressure vessel

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Ribbed cast structure with excellent mechanical properties and high rigidity
        • - Excellent damping of vibrations during demanding cutting processes
        • - Floor anchoring for long-term high geometric stability and precision
        • - Total power requirement: 30 kw
        • - Table size: 2000 x 1000 mm
      • Qualitative Machine Benefits:
        • - First-class quality surfaces, especially in the 3d production of molds/forgings and tools

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
