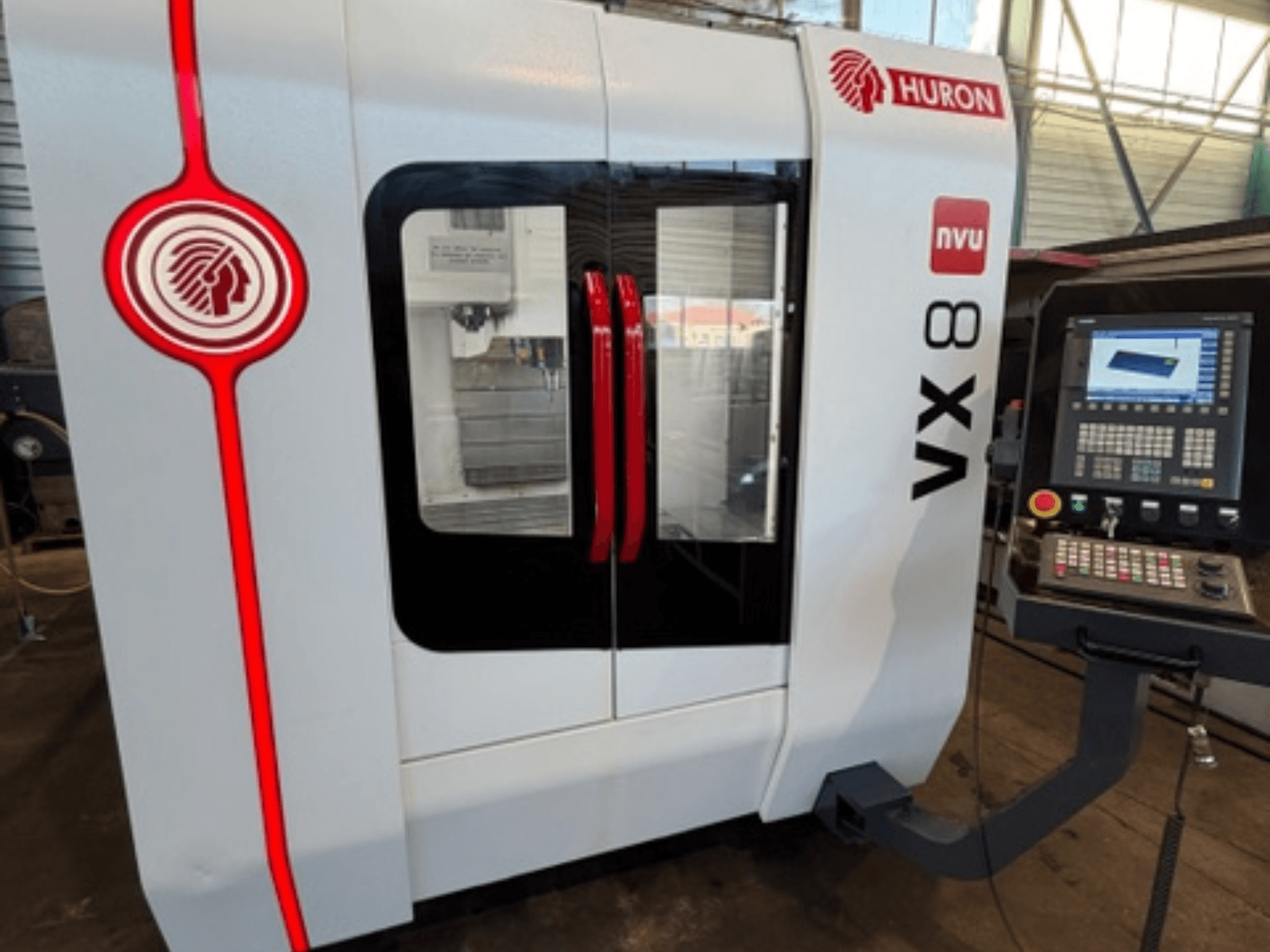

This 3s Huron VX8 DNU was manufactured in 2019, featuring a table size of 1,000 x 530 mm and a load capacity of 500 kg. With an X-axis travel of 820 mm and a rapid traverse speed of 24,000 mm/min, it offers efficient machining capabilities. Consider the opportunity to buy this Huron VX8 DNU vertical machining centre. Contact us for further details.
Overview
- brand: Huron
- year: 2019
- MODEL: VX8 DNU
- production hours: 8596
- application type: Milling
- Location: France
- machine type: Vertical Machining Centre
Technical Information - Huron VX8 DNU
Dimensions
- Table Load: 500 kg
Movement
- Number of Axes: 3
- X-axis Travel: 820 mm
- Y-axis Travel: 510 mm
- Z-axis Travel: 510 mm
Technical Specification
- Spindle Speed: 10000 RPM
- Taper Size: ISO 40
Additional Information
Spindle hours: 2,586
Table size: 1,000 x 530 mm
Rapid traverse speed: 24,000 mm/min
Spindle motor power: not specified
Tool magazine: 24-position random arm
CNC: Siemens 828D ShopMill
Air-conditioned electrical cabinet
Electronic handwheel
Ethernet connection
High-flow coolant system: 50 L/min
Preparation for through-spindle coolant
Wash-down gun
Air blow through nozzles
Condition: Excellent; very good appearance
Additional equipment
Chip conveyor + chip bin
Isolation transformer
28 tool holders and cutting tools
2 complete sets of collets
Clamping elements set
Machine vice
Technical documentation and CD-ROM
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
