- ➤ Used Husky GL 300PET P100/110 E12O | Injection Moulding

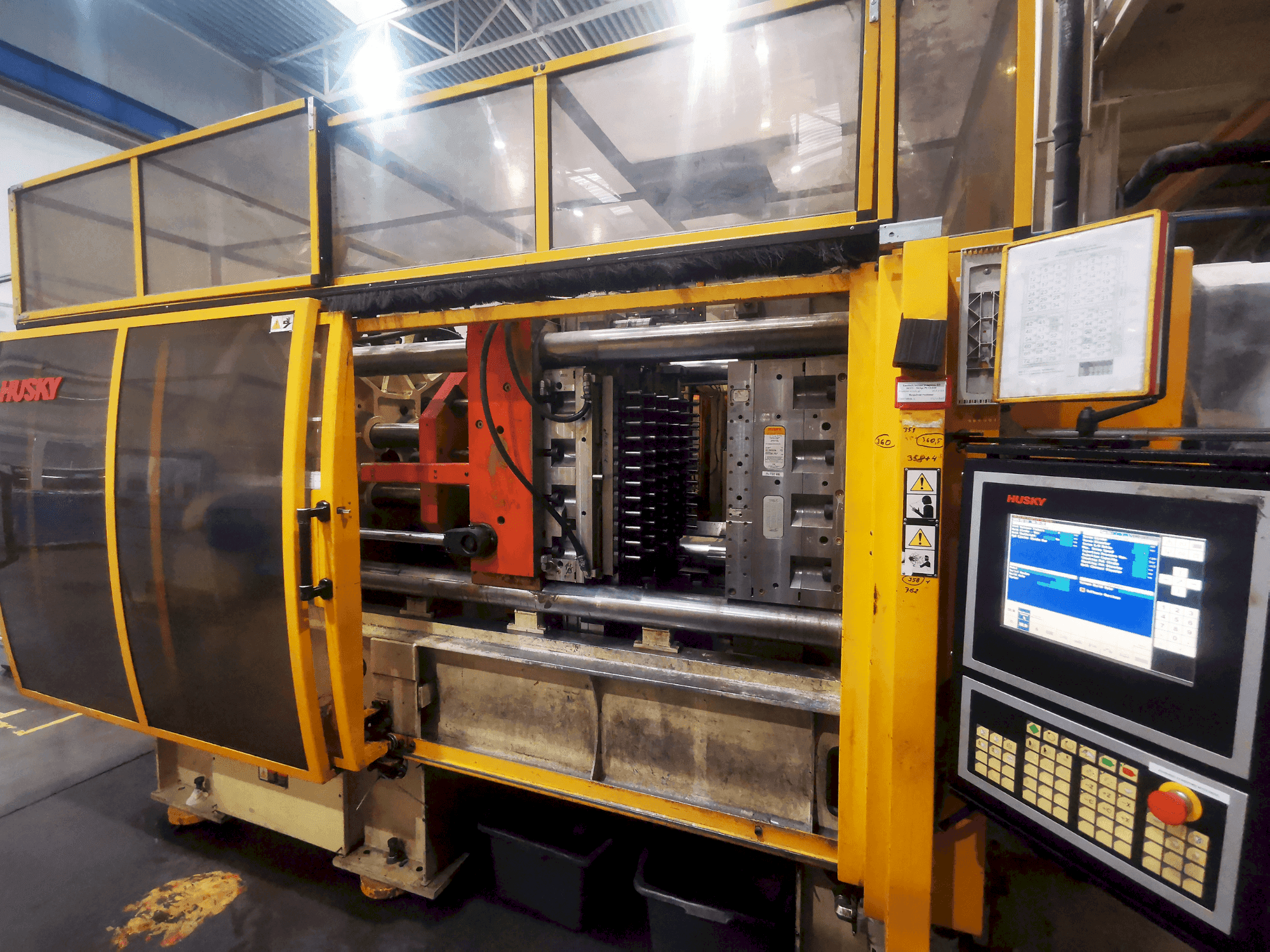

This Husky GL 300PET P100/110 E12O was manufactured in 2002. It features a distance between tie bars of 720 × 720 mm, a maximum mold stroke of 700 mm, and a screw diameter of 120 mm. The machine offers a screw L/D ratio of 25.0:1 and an injection pressure of 1172 bar. If you are looking to get high quality molding capabilities consider the Husky GL 300PET P100/110 E12O machine we have for sale. Contact us for more information.
Overview
- brand: Husky
- year: 2002
- MODEL: GL 300PET P100/110 E12O
- application type: Injection Moulding
- Location: Lithuania
- machine type: Hydraulic Injection Moulding Machine
Technical Information - Husky GL 300PET P100/110 E12O
Technical Specification
- Screw Diameter: 120 mm
Additional Information
Distance between tie bars: 720 × 720 mm
Maximum mold stroke: 700 mm
Mold shut height: 450–900 mm
Maximum hydraulic ejector stroke: 225 mm
Screw stroke: 400 mm
Screw L/D ratio: 25:1
Maximum screw speed: 60 rpm
Shooting pot stroke: 340 mm
Shooting pot diameter: 110 mm
Melt channel diameter: 32 mm
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
