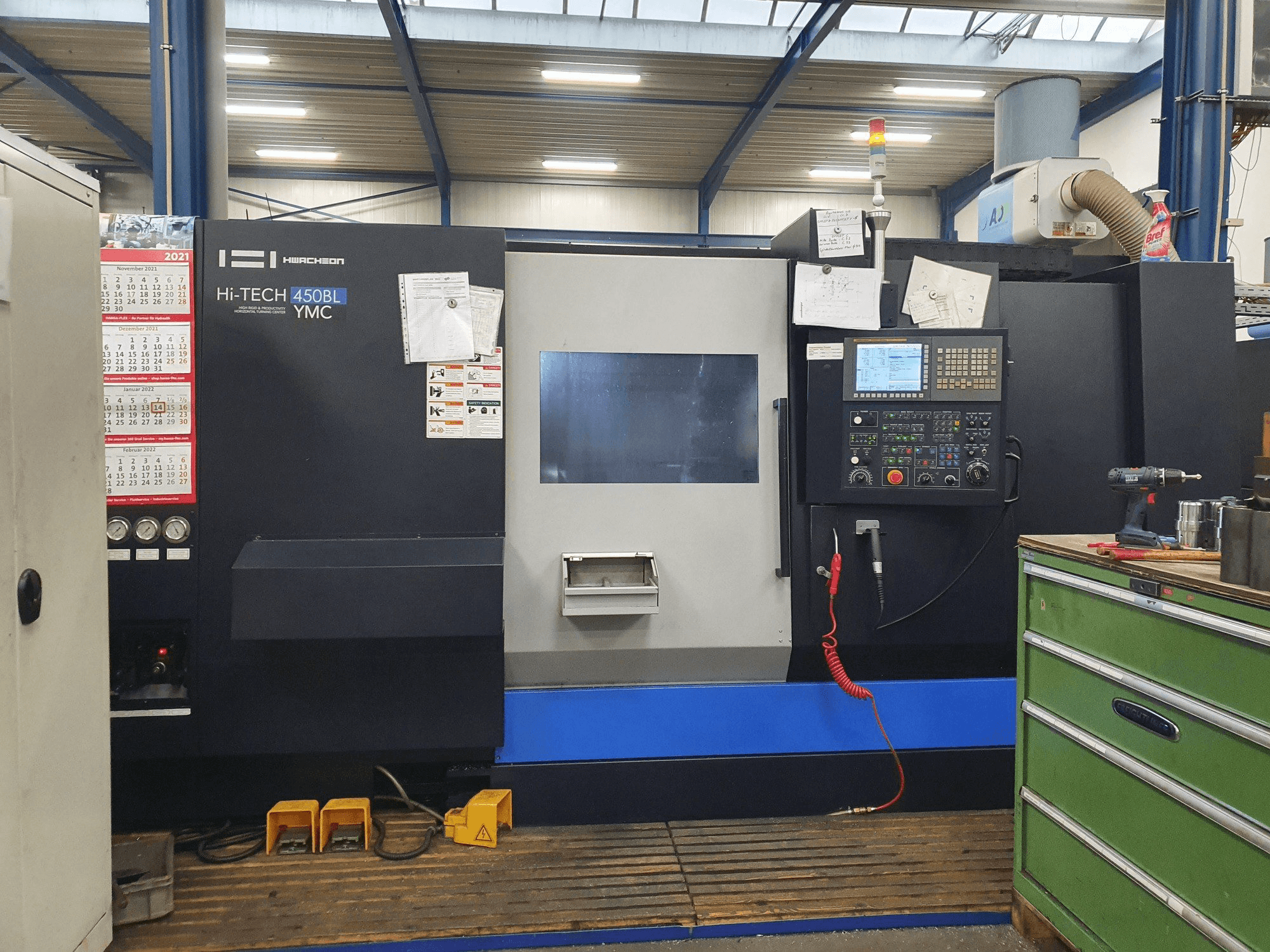

HWACHEON HI-TECH 450BL YMC Lathe machine

This HWACHEON HI-TECH 450BL YMC Lathe machine was manufactured in the year 2017 in Korea. This 3 machine can work with a spindle speed range up to 2500 rpm and a chuck size of 305 mm. It presents very good conditions.

Overview

brand: HWACHEON
year: 2017
MODEL: HI-TECH 450BL YMC
application type: Turning
Location: Germany
machine type: Turn-Mill Centre
availability: Sold

Technical Information - HWACHEON HI-TECH 450BL YMC

General Data

Machine weight: 6800 kg

Main drive

Spindle speed range: 2500 1/MIN
Spindle motor power: 22 / 18.5 kW

Movement

X-AXIS Movement: 280 mm
X-AXIS Rapid traverse: 20 mm
Y-AXIS Movement: 120 mm
Y-AXIS Rapid traverse: 10 mm
Z-AXIS Movement: 1390 mm
Z-AXIS Rapid traverse: 24 mm

Tools

Number of index: 12
Type of tool holder: BMT-65

Additional Equipment

- Lynette carrier for SLU-X-XZS
- Richter Lynette clamping range 30-150mm
- Driven tool in X and Z
- Driven Eppinger tools

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Overturnable diameter max. 420 mm
- - Turning length, max. 780cm
- - Chuck size 305 mm
- - Swing diameter over bed 700 mm
- - Max. Bar capacity 89 mm
- - Spindle torque 1050 / 883. 8 nm
- - Max. Counter spindle speed 4. 000 u/min
- - Counter spindle power 7. 5 / 5. 5 kw
- - Coolant tank vol. 240 liter

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
