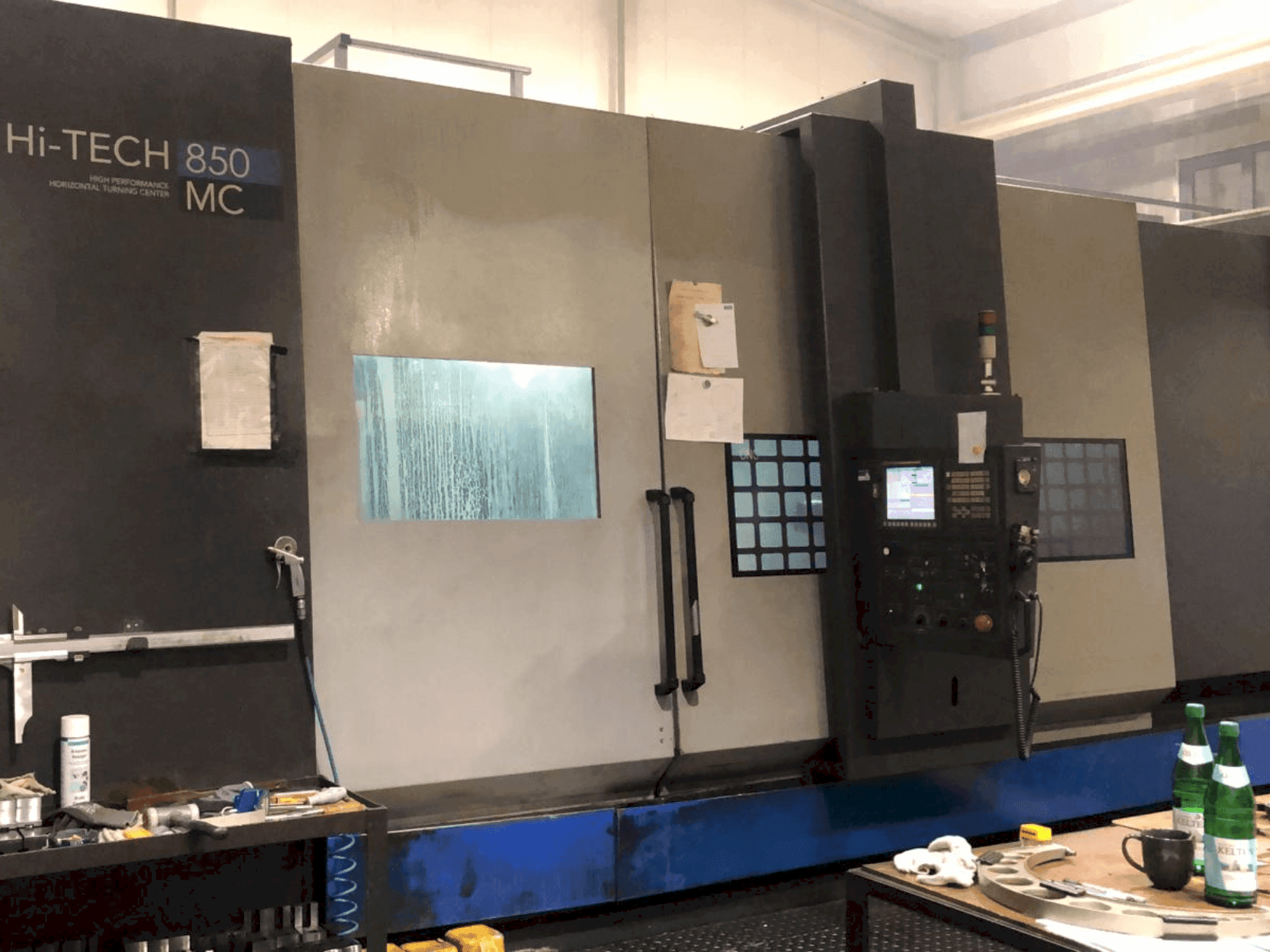

HWACHEON - Hi-Tech 850DE-TUR-HWA-2012-00001

Additional equipment

• Hydraulic clamping cylinder, piston stroke 51 mm, bore 165 mm
• Draw tube, clear width 165 mm
• Electronic handwheel
• Work area full protection with large viewing door (door opening 2770 mm), electrically fused
• Internal coolant unit, capacity 400 L, pump capacity 30 L/min, 6 bar pump pressure
• Automatic centralised lubrication
• RS-232-C interface (Ethernet option)
• Machine control elements
• 3-colour paint finish grey-light grey-signal blue

Machine Benefits

Technical Machine Benefits

• Foot switch for clamping device and quill
• Fanuc alpha 40/6000i main drive with 45 kw (50% ed)
• 4-stage main gearbox
• Cooling of the main spindle through a separate oil circuit with a temperature-controlled cooling unit
• Main spindle, inside diameter of front spindle bearing: 240 mm // spindle connection a2-15
• 12-position tool turret with directional logic, direct mounting
• Tailstock positionable (dragged along with z-axis, travel range 2650 mm)
• Quill programmable, including fixed tailstock centre mk 6 mounted in the quill
• Milling drive 11 kw (50% ed) drive power; torque 210 nm (at 500 rpm); max. Speed 3000 rpm in conjunction with c-axis 0. 001° positioning
• Standard tool holder for internal and external machining

Extra Information

Hwacheon machines comply with the CE standard. Control Unit Fanuc Oi-TD control with a 10.4-inch screen Manual Guide i user interface Central control panel for machine and CNC control
