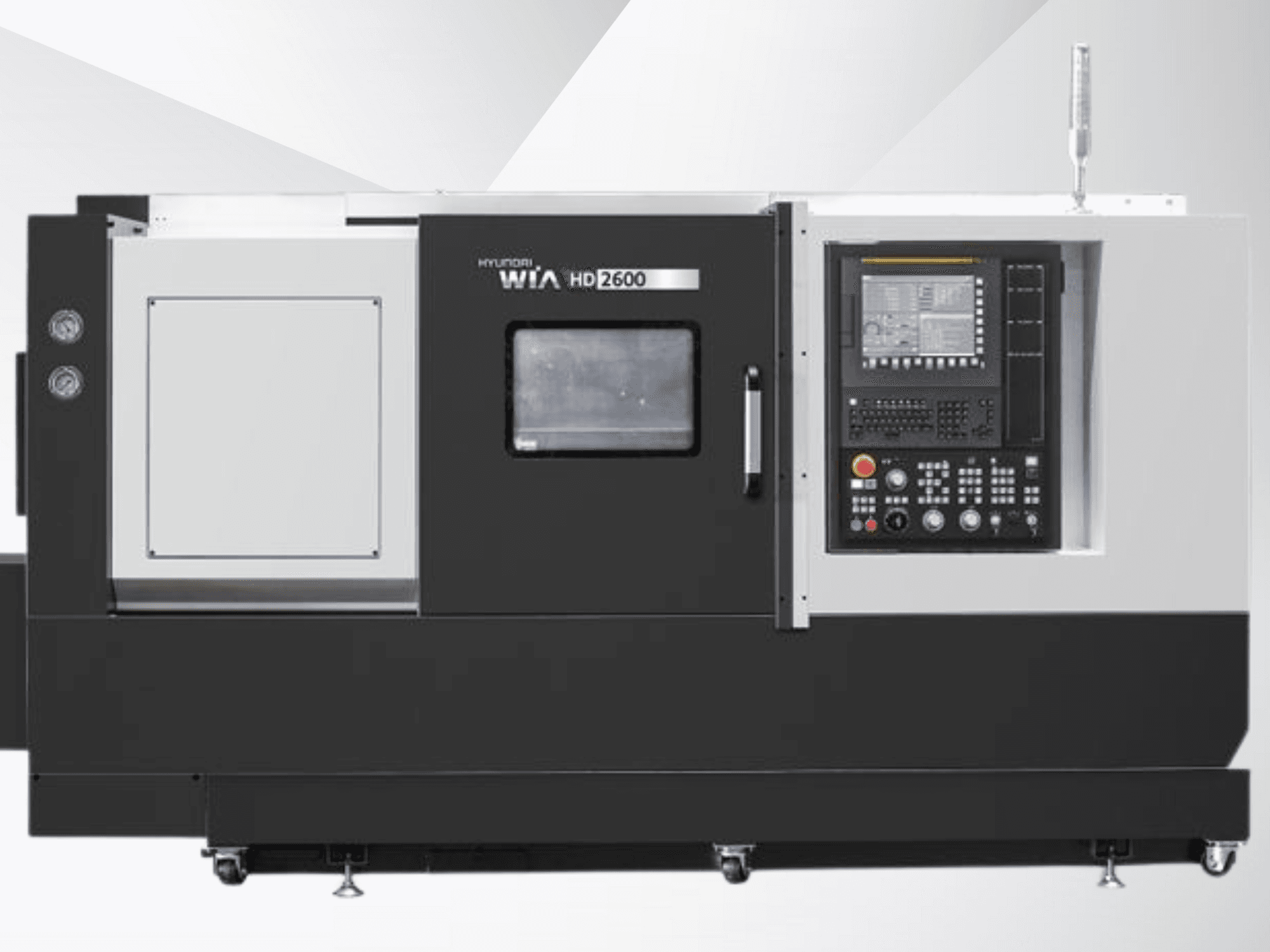

Hyundai - Wia HD 2600DE-TUR-HYU-2025-00001

• Original packaging

Capacity

• Swing over the bed: 630 mm

• Swing over the carriage: 460 mm

• Max. turning diameter: 460 mm

• Max. turning length: 659 mm

• Bar capacity: 80 mm

• Chuck size: 10"

Spindle

• Spindle bore: Ø91 mm

• Motor (max/cont.): 26/18.5 kW (35/25 HP)

• Torque (max/cont.): 734/522 Nm (541/385 lbf·ft)

• Torque (additional value stated): (828/748 Nm)

• Spindle type: Belt

• Spindle nose: A2-8

• C-axis indexing: 0.001°

Feed

• Rapid traverse rate (X/Z): 24 / 30 m/min (945 / 1,181 ipm)

• Slide type: Box guide

Turret / Tooling

• No. of tools: 10 (12)

• Tool size (OD): 25 mm

• Tool size (ID): Ø50 mm

• Indexing time: 0.15 sec

Tailstock

• Type: MT#5 (Built-in tail stock - MT#4)

• Quill diameter: Ø100 mm

• Quill travel: 120 mm

• Travel: 680 mm

Tank Capacity

• Coolant tank: 180 L (47.6 gal)

• Lubricating tank: 18 L (4.75 gal)

Power Supply

• Electric power supply: 27 kVA

• Thickness of power cable: Over 16 mm²

• Voltage: 220/60 (200/50)
