Hyundai Wia - Hi-MOLD 560/5APL-MIL-HYU-2013-00001

Name: Hyundai Wia Hi-MOLD 560/5A
Brand: Hyundai Wia
SKU: PL-MIL-HYU-2013-00001
Price: 120000 EUR
Availability: InStock

120,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Hyundai Wia Hi-MOLD 560/5A For Sale | gindumac.com

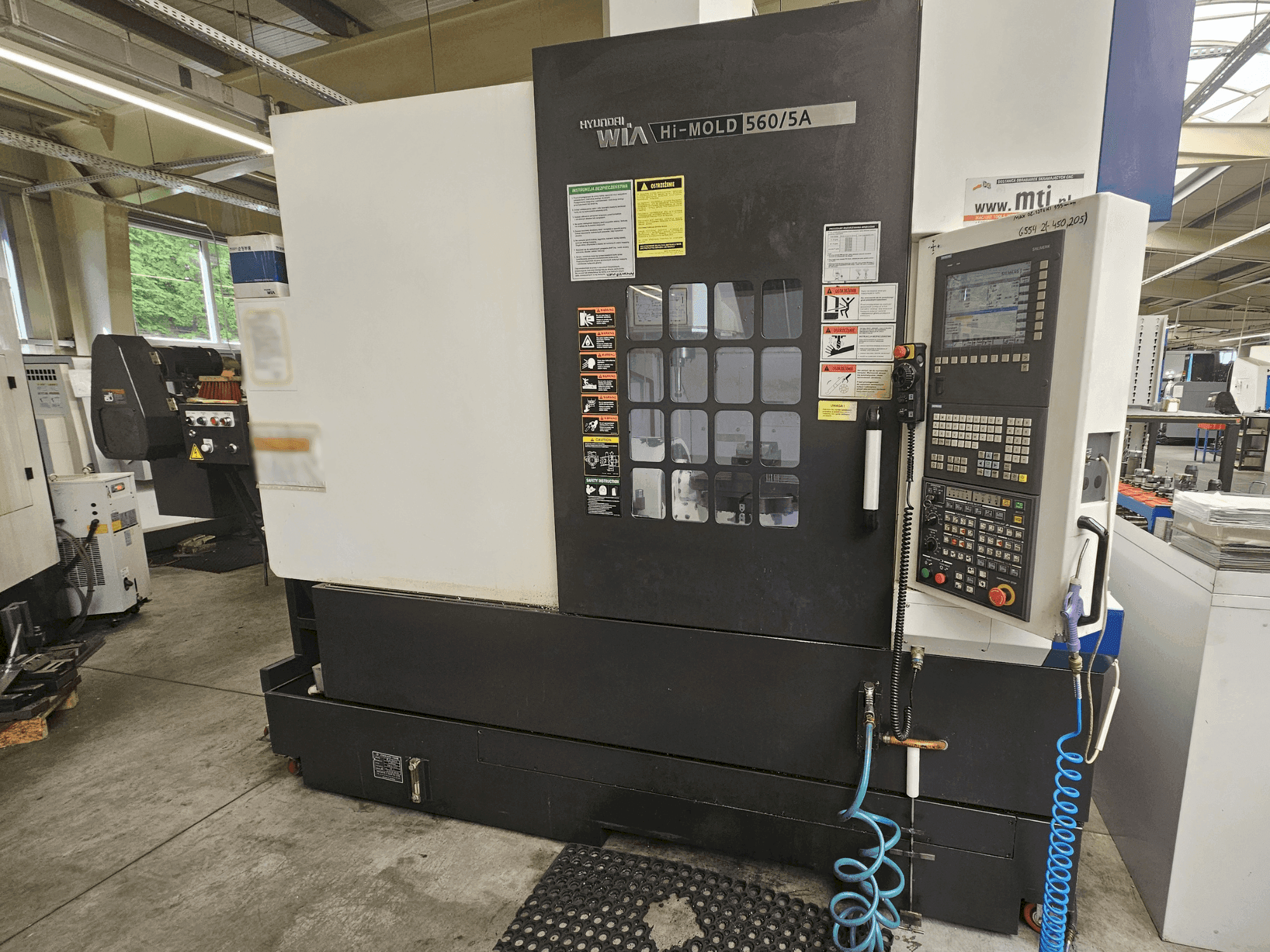

This 5-axis Hyundai Wia Hi-MOLD 560/5A was manufactured in 2013. It features a Siemens 840D control system, a table size of Ø500 × 270 mm, and can handle a maximum table load of 250 kg. The machine offers a rapid traverse rate of 50 m/min in X/Y/Z axes and higher speeds in rotary axes, with spindle speeds up to 24,000 rpm. Consider the opportunity to buy this Hyundai Wia Hi-MOLD 560/5A vertical machining centre. Contact us for more information.

Overview

brand: Hyundai Wia
year: 2013
MODEL: Hi-MOLD 560/5A
application type: Milling
Location: Poland
machine type: Vertical Machining Centre
control unit brand: SIEMENS

Technical Information - Hyundai Wia Hi-MOLD 560/5A

General Data

Type of drive: Built-in motor

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 24000 rpm 1/MIN
Spindle motor power: 33 / 25 kW (Max/Cont.)
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 50 m/min
A-AXIS Movement: ±30° MM
A-AXIS Rapid traverse: 70 r/min
C-AXIS Movement: ±120° / 360° MM
C-AXIS Rapid traverse: 150 r/min

Tools

Max weight: 3 kg
Max tool diameter: Ø140 mm
Max tool length: 300 mm

General Data

Type of drive: Built-in motor

Control Unit

Brand: SIEMENS
Model: Sinumerik 840D

Main drive

Spindle speed range: 24000 rpm 1/MIN
Spindle motor power: 33 / 25 kW (Max/Cont.)
Tool taper: HSK-A63
Number of axis: 5

Movement

X-AXIS Movement: 1000 mm
X-AXIS Rapid traverse: 50 m/min
Y-AXIS Movement: 560 mm
Y-AXIS Rapid traverse: 50 m/min
Z-AXIS Movement: 450 mm
Z-AXIS Rapid traverse: 50 m/min
A-AXIS Movement: ±30° MM
A-AXIS Rapid traverse: 70 r/min
C-AXIS Movement: ±120° / 360° MM
C-AXIS Rapid traverse: 150 r/min

Tools

Max weight: 3 kg
Max tool diameter: Ø140 mm
Max tool length: 300 mm

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Table size: 500 × 270 mm
- - Maximum table load: 250 kg
- - Tool capacity: 24 tools
- - Tool change time (chip to chip): approx. 5. 5 sec
- - Max tool diameter (with adjacent tool): 70 mm
- - Tool shank type: hsk-a63

Extra information

- Full documentation available. Very good working condition. Low working hours.

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
