IRLE - Facing LatheDE-TUR-IRL-1998-00001

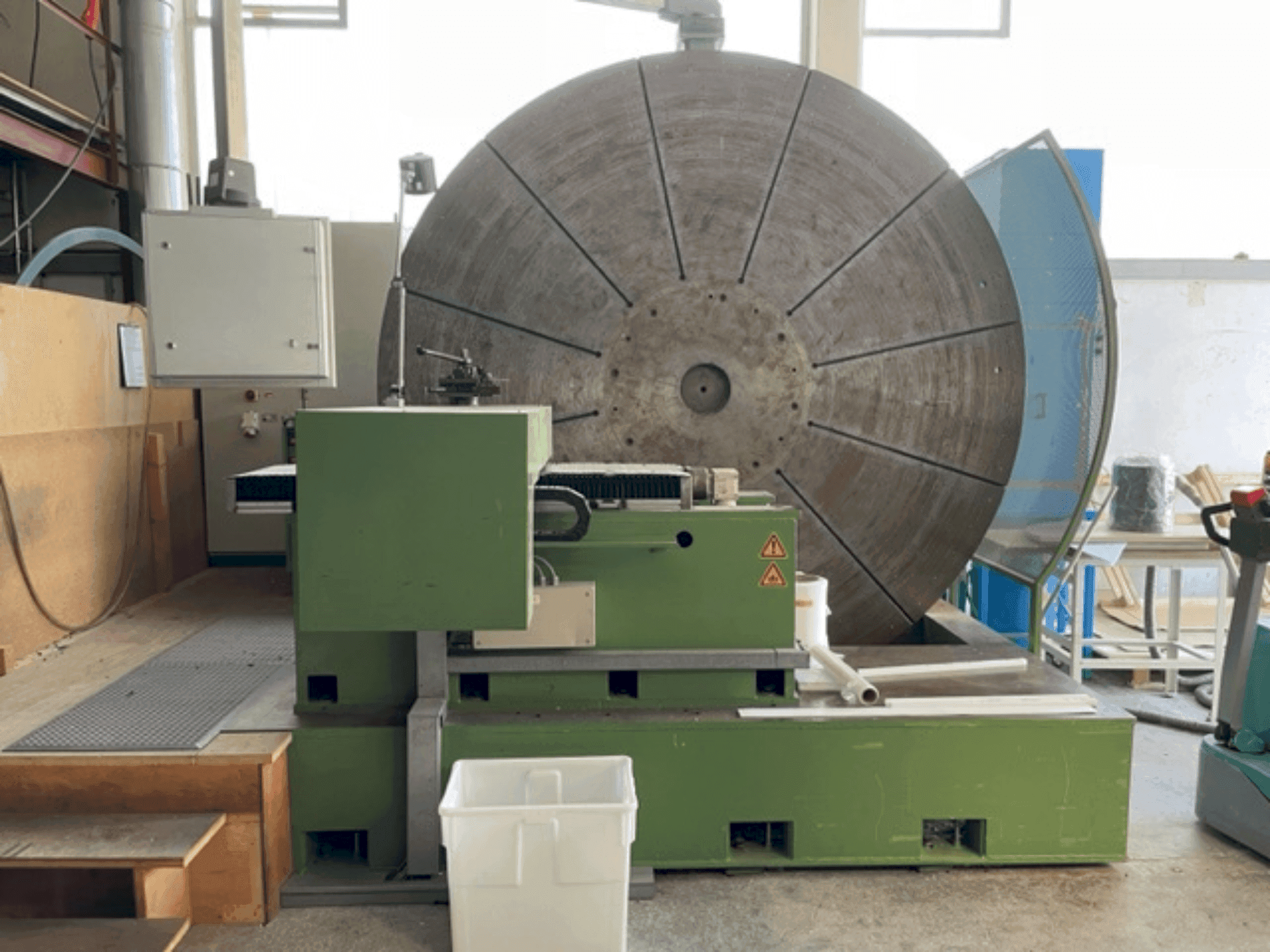

Name: IRLE Facing Lathe
Brand: IRLE
SKU: DE-TUR-IRL-1998-00001
Price: 13000 EUR
Availability: InStock

13,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used IRLE Facing Lathe For Sale | gindumac.com

This IRLE Facing Lathe was manufactured in 1998. Ideal for vertical turning applications, this machine offers robust construction and reliable performance. Consider the opportunity to buy this IRLE Facing Lathe vertical turning machine. Contact us for more information.

Overview

brand: IRLE
year: 1998
MODEL: Facing Lathe
application type: Turning
Location: Germany
machine type: Vertical Turning Machine
availability: Immediately
control unit brand: SIEMENS

Technical Information - IRLE Facing Lathe

Control Unit

Brand: SIEMENS
Model: Sinumerik 810 D

Main drive

Spindle speed range: 4000 1/MIN
Spindle motor power: 1.2-12 kW
Number of axis: 2

Movement

X-AXIS Movement: 850 mm
X-AXIS Feed Force: 2500 N
X-AXIS Rapid traverse: 3000 mm/min
Z-AXIS Movement: 550 mm
Z-AXIS Feed Force: 2500 N
Z-AXIS Rapid traverse: 3000 mm/min

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Delivery rate: 3. 7 l/min
- - Operating pressure: 115 bar
- - Hydraulic unit for disk brake motor power: 0. 55 kw
- - Delivery rate: 0. 5 l/min
- - Suction height: 500 mm
- - Rated power: 70 watts
- - Operating voltage: 230/400 volt

Extra information

- Max. torque in S1 operation: 5700 Nm Max. torque in S6 operation: 7100 Nm Max. achievable cutting force: Approx. 3000 N Movement: Headstock Faceplate diameter: 3000 mm Speed range of the faceplate: 2 - 20 - 80 min-1 Undersupport Feed speed: 0.5 - 100 mm/min Max. torque (three-phase servo motor): 1 Nm Top Support Feed speed: 0.5 - 1000 mm/min Motor speed: 0 - 3000 min-1 Max. torque (servo motor): 1 Nm

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
