JS EDM - Wi-200sSI-EDM-JS -2018-00001
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Machine Tools
- JS EDM Wi-200s Erosion machine

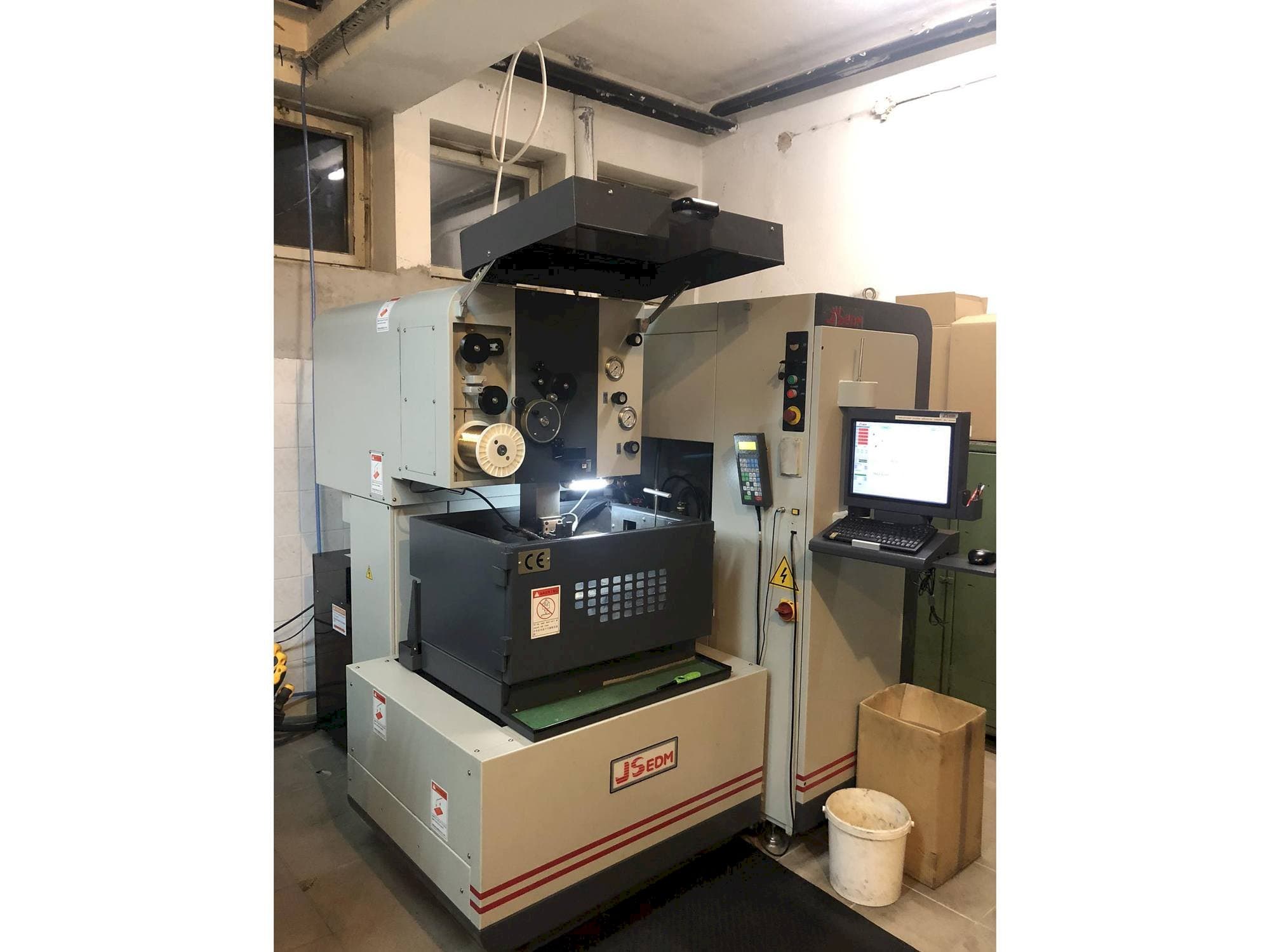

This JS EDM Wi-200s Erosion machine was manufactured in the year 2018 in Taiwan. It is equipped with a JS EDM control unit and has 5 axis.
Overview
- brand: JS EDM
- year: 2018
- MODEL: Wi-200s
- application type: EDM
- Location: Slovenia
- machine type: Erosion Machine
- availability: Immediately
- control unit brand: js edm
Technical Information - JS EDM Wi-200s
General Data
- Measurements width: 1800 mm
- Measurements depth: 1900 mm
- Measurements height: 1850 mm
- Machine weight: 1700 kg
Control Unit
- Brand: js edm
Main drive
- Number of axis: 5
Movement
- X-AXIS Movement: 210 mm
- Y-AXIS Movement: 200 mm
- Z-AXIS Movement: 155 mm
Workpiece
- Workpiece weight: 300 kg
Table
- Outer length: 450 mm
- Outer width: 400 mm
Additional Information
- Technical Machine Benefits:
- - Maximum workpiece size (lxwxh)- 550x470x115 / 150 mm
- - Wire diameter range- Ø 0. 1~0. 3 mm
- - Max. Taper angle (°)workpiece thickness-±10° (60 mm)
- - Maximum axes load-6 kgs
- - Drive & servo
- - Conductivity
- - Automaticsimulations axis-x / y / u / v (4 axes)
- - U/v axis travel-30/30 mm
Machine Benefits
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
Borja Garcia
Payment Terms
Payment in advance
