This 7-axis KASSOW ROBOTS KR1205 was manufactured in 2020. It features a reach of 1200 mm and a payload capacity of 5 kg, making it suitable for various applications. The robot arm includes an original Kassow Controller and a tablet teach pendant for ease of use. If you are looking to get high-quality automation capabilities, consider the KASSOW ROBOTS KR1205 robot arm we have for sale. Contact us for further details.
Overview
- brand: KASSOW ROBOTS
- year: 2020
- MODEL: KR1205
- application type: Robotics
- Location: Germany
- machine type: Robot Arm
- control unit brand:
Technical Information - KASSOW ROBOTS KR1205
Dimensions
- Machine Weight: 25 kg
Movement
- Number of Axes: 7
Technical Specification
- Max. Handling Weight: 5 kg
- Max. Reach: 1200 mm
Additional Information
Joint speed: 225 deg/sec
Joint ranges (J1, J3, J5, J6, J7): +/- 360°
Joint ranges (J2, J4): -70°/+180°
Repeatability: +/- 0.1 mm
Power consumption: 400–600 W (with max load)
Supply voltage: 100–120 or 200–240 VAC (50/60 Hz)
Supply current: 16 A
Operating temperature: 0–45°C
Operating humidity: 30–85 %RH non-condensing
Protection rating: IP54
Sound level: Below 70 dB(A)
Footprint: 130 x 130 mm
Operating hours: < 300 hours
Body material: Anodized aluminum

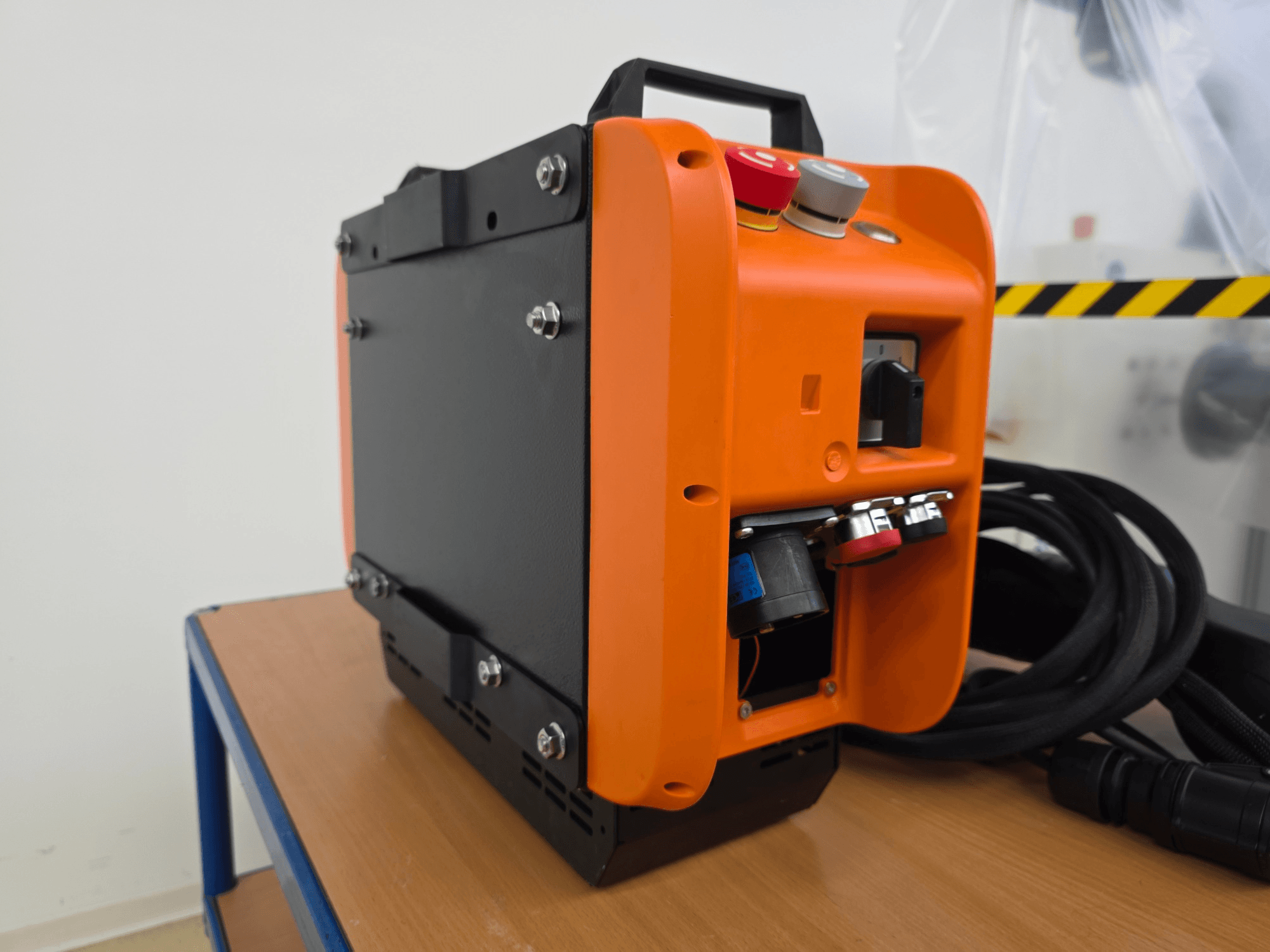

Controller: Original Kassow controller included
Teach pendant: Included (tablet)
Cable lengths: 5 m (controller to arm), 4.5 m (controller to teach pendant)
Additional equipment
Schunk Co-act EGP-C 64 gripper
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
