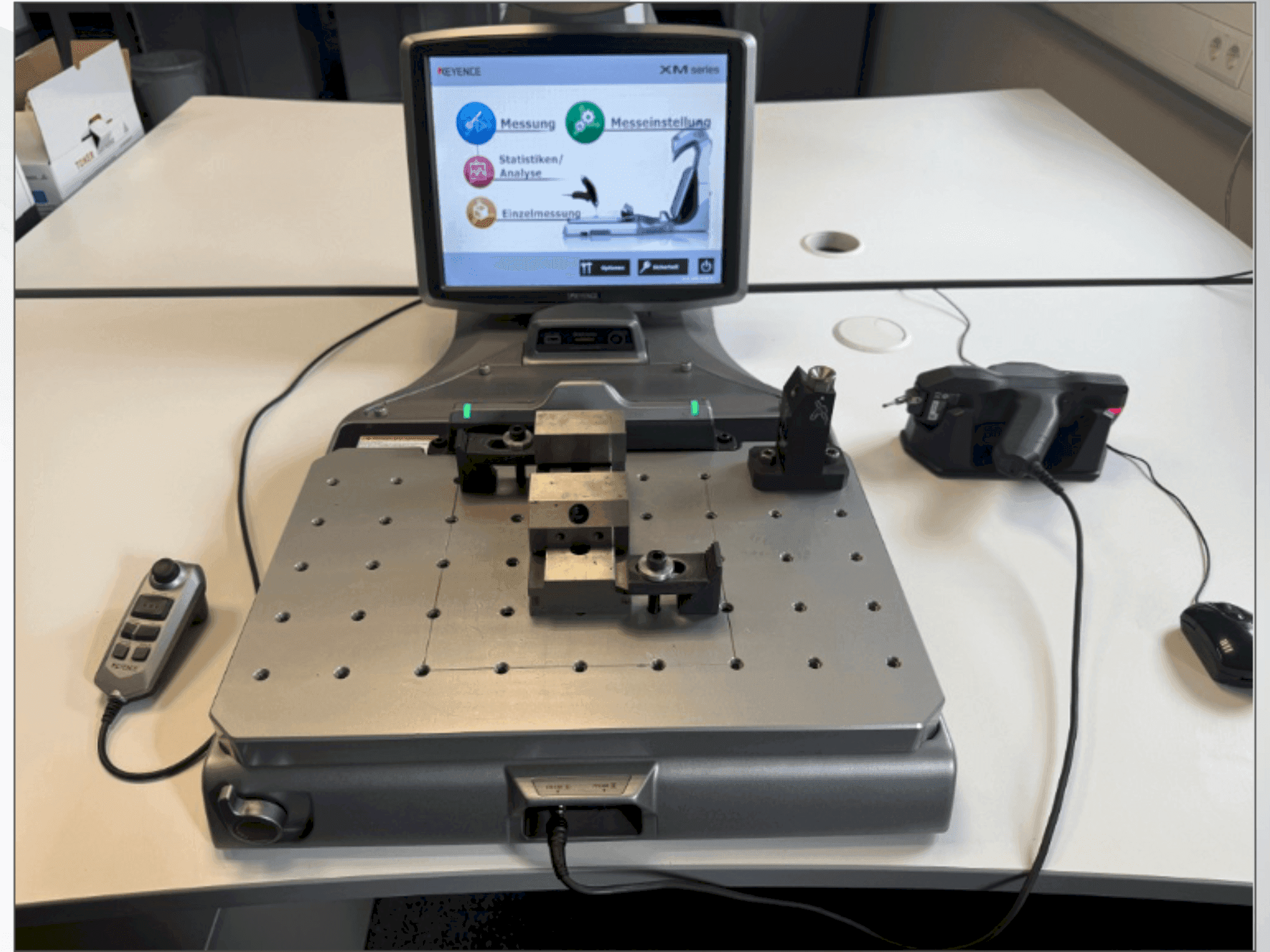

KEYENCE - XM-1200DE-MEA-KEY-2019-00002

Machine Benefits

Qualitative Machine Benefits

• Light source on marker: near-infrared led (870 nm)
• Connection for measuring probe: 2 inputs
• Input for remote control: associated controller
• External remote input: volt-free input (with and without contact): 2 inputs
• Communication interfaces: usb 2. 0 series a: 3 connections
• Display: built-in display 15-inch lcd monitor (1024 × 768)
• Ambient temperature: +10 to +35 °c
• Relative humidity: 20 to 80 % rh (no condensation)
• Supply voltage: from control unit
• Plug type: special plug

Technical Machine Benefits

• Measuring range: 600 mm × 300 mm × 200 mm
• Display unit: 1 μm
• Angle: 0. 0001 degrees
• Repeat accuracy: measuring table locked: ±3 μm, measuring table unlocked: ±4 μm
• Measuring deviation: measuring table locked: ±8 μm1, measuring table unlocked: ±(10 + l/100) μm2
• Weight of sensor head: approx. 39. 6 kg (with camera and cable)
• Displacement range of the x-axis: ±100 mm
• Rotation range: ±60°
• Number of measuring probes: 1
• Number of marking points: 6

Extra Information

Machine still under power
