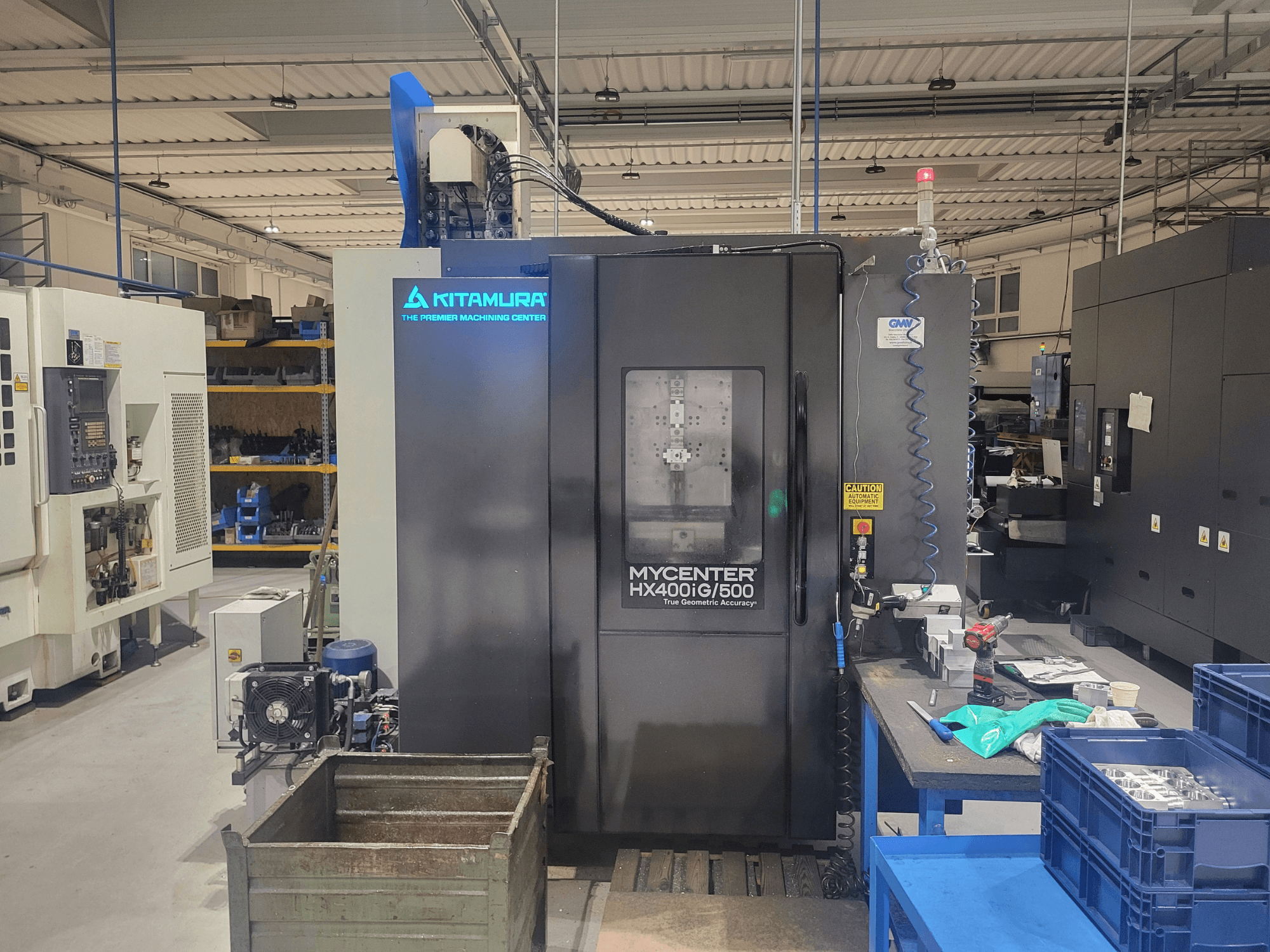

This 4s Kitamura Hx400ig horizontal machining centre was manufactured in 2018. It features impressive X, Y, and Z axis travels of 610 mm, a spindle speed range of 40 – 15,000 rpm, and rapid traverse speeds of 60 m/min. The machine is equipped with box ways for maximum rigidity and offers optional features such as a continuous 4th axis and automatic door opening. Consider the opportunity to buy this Kitamura Hx400ig horizontal machining centre. Contact us for further details.
Overview
- brand: Kitamura
- year: 2018
- MODEL: Hx400ig
- application type: Milling
- Location: Italy
- machine type: Horizontal Machining Centre
Technical Information - Kitamura Hx400ig
Movement
- Number of Axes: 4
- X-axis Travel: 610 mm
- Y-axis Travel: 610 mm
- Z-axis Travel: 610 mm
Technical Specification
- Spindle Speed: 15000 RPM
Additional Information
Tool magazine capacity: 62 positions (optional)
High-pressure coolant pump 70 bar with through-spindle coolant (optional)
Tool change time: 1.3 s / 2.5 s minimum
Rapid traverse (X/Y/Z): 60 m/min (2,362 ipm)
B-axis rapid speed: 125 min⁻¹ (45,000 deg/min)
Machine equipped with box ways for maximum rigidity
Continuous 4th axis (B-axis) (optional)
Automatic door opening/closing for automation (optional)
Additional equipment
External hydraulic clamping pump for automatic workpiece clamping (never used) (optional)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
