Mazak - HCN-5000IT-MIL-MAZ-2024-00001

Name: Mazak HCN-5000
Brand: Mazak
SKU: IT-MIL-MAZ-2024-00001
Price: 210000 EUR
Availability: InStock

210,000 €

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
➤ Used Mazak HCN-5000 For Sale | gindumac.com

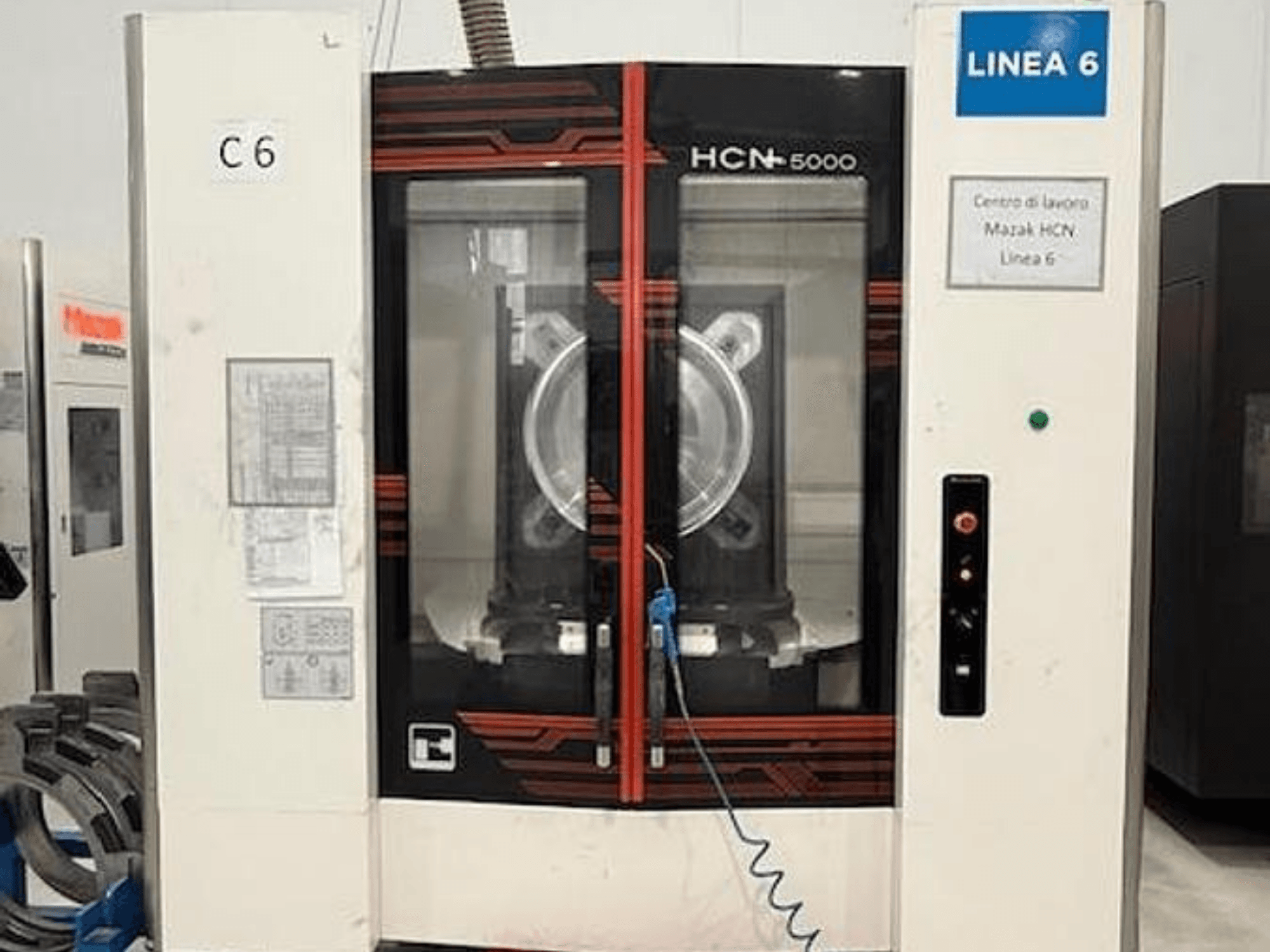

This 4-axis Mazak HCN-5000 was manufactured in 2024. It features an X-axis travel of 730 mm, Y-axis travel of 730 mm, and Z-axis travel of 800 mm. The machine has a maximum workpiece weight of 700 kg and a spindle speed of 18,000 RPM. If you are looking to get high-quality machining capabilities, consider the Mazak HCN-5000 horizontal machining centre we have for sale. Contact us for further details.

Overview

brand: Mazak
year: 2024
MODEL: HCN-5000
application type: Milling
Location: Italy
machine type: Horizontal Machining Centre

Technical Information - Mazak HCN-5000

Dimensions

Machine Height: 2813 mm
Machine Length: 5769 mm
Machine Weight: 11430 kg
Machine Width: 2623 mm
Table Length: 500 mm
Table Width: 500 mm

Movement

Number of Axes: 4
X-axis Travel: 730 mm
Y-axis Travel: 730 mm
Z-axis Travel: 800 mm

Technical Specification

Max. Tool Weight: 12 kg
Spindle Speed: 18000 RPM
Taper Size: ISO 40

Additional Information

Quantity/configuration: 5 machines total; identical configuration except tool changer capacity:
- 3 machines with 40 tools
- 1 machine with 60 tools
- 1 machine with 80 tools
Control unit: Smooth G
Pallet size: 500 x 500 mm
Max. workpiece dimensions (L x W x H): D. 800 x 1000 mm
Table surface: Tapped holes
Max. workpiece weight: 700 kg
Rapid traverse (X/Y/Z): 60,000 mm/min
Max. tool diameter: D. 95 mm / D. 170 mm
Max. tool length: 170 mm
Tool selection method: Fixed
Tool change time: 2.8 s
Coolant pressure: 15 bar
Coolant tank capacity: 500 L

Additional equipment

Tsubakimoto Mayfran ConSep 2000 chip conveyor/separator
Butti chip container
Mist collector line setup

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
