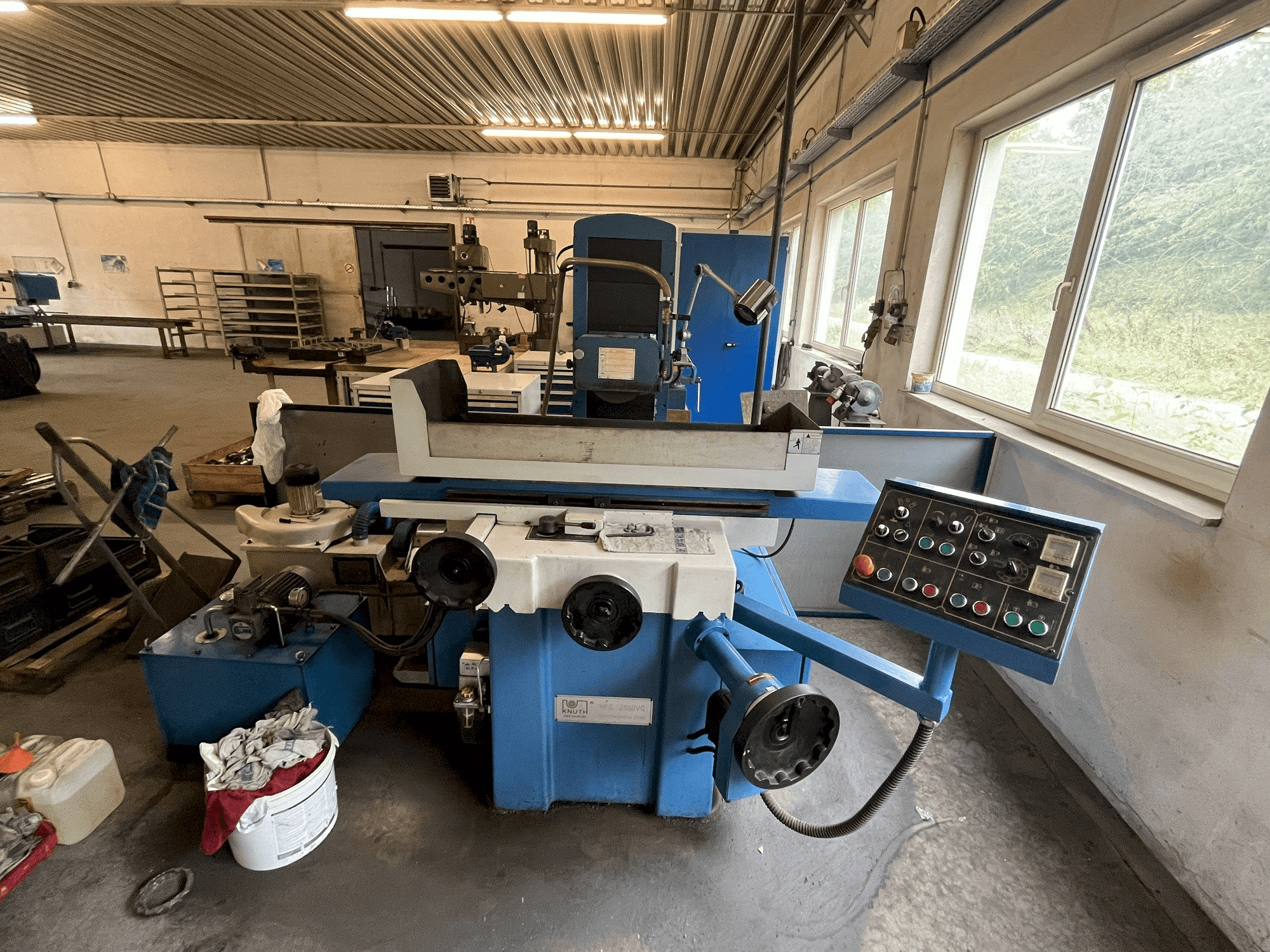

Front view of KNUTH HFS 2550 VC  machine

KNUTH HFS 2550 VC

KNUTH - HFS 2550 VC

2008

Sold

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp

This KNUTH HFS 2550 VC Grinding machine was manufactured in the year 2008 in Germany.

Overview

  • brand: KNUTH
  • year: 2008
  • MODEL: HFS 2550 VC
  • application type: Grinding
  • Location: Germany
  • machine type: Grinding machines
  • availability: Sold
  • GINDUMAC ID: DE-GRI-KNU-2008-00001

Technical Information

General Data

  • Measurements width: 2650 mm
  • Measurements depth: 2150 mm
  • Measurements height: 1675 mm
  • Machine weight: 1800 kg

Movement

  • X-AXIS Movement: 560 mm
  • Y-AXIS Movement: 275 mm

Table

  • Outer length: 250 mm
  • Outer width: 500 mm
  • Table load: 180 kg

    Additional Equipment

    • - Coolant tank, fan
    • - A device with a dressing diamond is included in the accessory box. Of course, the dressing is done on the machine

    Additional Information

      Machine Benefits

      • Technical Machine Benefits:
        • - Grinding wheels dimensions 200 x 20 x 31,75 mm
        • - Spindle axis-to-table surface distance 450 mm
        • - Scale ring division y-axis 0,02 mm
        • - Scale ring division z-axis 0,005 mm
        • - Autom. Transverse feed 0,1 - 8 mm
        • - Autom. Vertical feed 0,005 - 0,05 mm
        • - Hydr. Feed x: 7 - 23 m/min, rapid feed: y-axis: 990 mm/min, rapid feed z-axis: 460 mm/min, drive capacity, motor rating grinding spindle: 2,2 kw, motor rating servo drive: 0,5 kw
        • - Coolant tank
        • - Various accessories
      • Qualitative Machine Benefits:
        • - The surface grinding machine has an automatic vertical infeed
        • - The magnetic plate belongs to the machine furthermore the machine also has a magnetic coolant cleaning system

    *There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
