KRÜSI - KM-95 G1LT-CNC-KRU-2007-00001
68,000 €
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
Click to chat on WhatsApp
- GINDUMAC
- Products
- Wood Working
- ➤ Used KRÜSI KM-95 G1 - 2007 - For Sale | gindumac.com

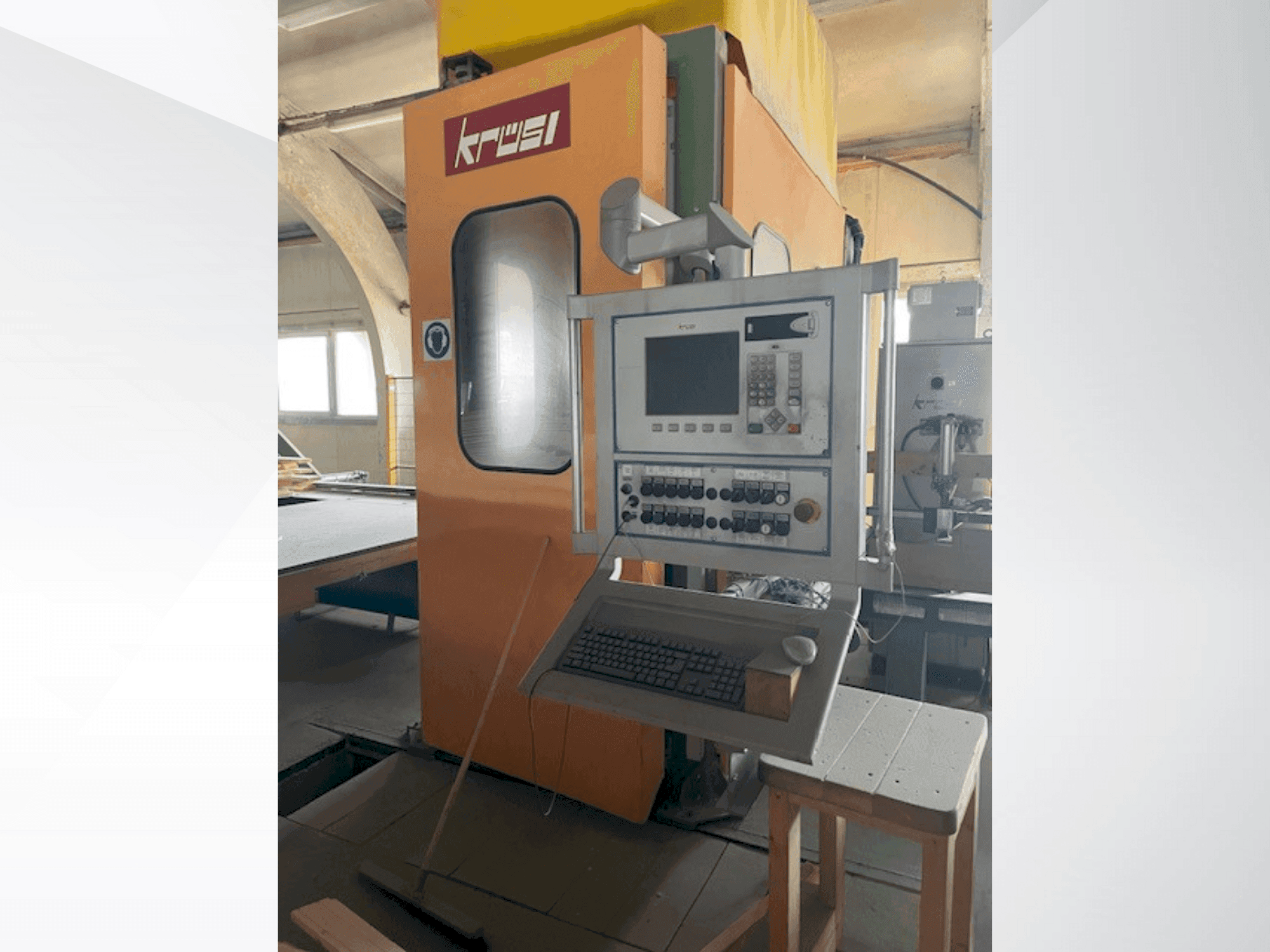

This KRÜSI KM-95 G1 was manufactured in 2007. A CNC Wood Machining Centre, it is ideal for a variety of woodworking applications. Consider the opportunity to buy this KRÜSI KM-95 G1 CNC Wood Machining Centre. Contact us for more information.
Overview
- brand: KRÜSI
- year: 2007
- MODEL: KM-95 G1
- application type: CNC Wood Machining
- Location: Lithuania
- machine type: CNC Wood Machining Centre
- availability: Immediately
Technical Information - KRÜSI KM-95 G1
Workpiece
- Workpiece x: 930 mm
- Workpiece y: 320 mm
- Workpiece z: 190 mm
Additional Information
- Technical Machine Benefits:
- - The circular saw unit features a 7. 5 kw motor running at 2850 rpm, a saw spindle speed of 2800 rpm, a 600 × 5. 4/3. 6 × 30 z=54 w blade, with a 50° swivel range and over 360° rotation range.
- - The groove and tenon milling unit features a 5. 5 kw motor running at 2900 rpm (50 hz), a milling spindle speed of 3327 rpm, supports tools such as a rebate cutter with a 30 mm bore, max. 250 mm outside diameter and 71 mm width, and a finger-bore milling cutter with er 32 taper, max. 50 mm diameter and 200 mm total length, with a rotation range of over 360°.
- - The five-spindle milling unit features a 4 kw motor running at 2900 rpm (50 hz), a milling spindle speed of 4060 rpm, and supports tools including a dovetail cutter with a 16 mm shank, 50 mm diameter, 20° angle, and 88 mm length, as well as finger-boring cutters with a 16 mm shank, up to 50 mm diameter, and a maximum total length of 145 mm.
- - The horizontal drilling units feature a 1. 8 kw motor with a drill spindle speed of 1400 rpm at 50 hz.
- - The chain slotting unit features a 3 kw motor with a chain pinion speed of 2900 rpm at 50 hz.
- - The marking tool uses a ballpoint pen with a fisher space pen refill.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
